3 INSTALLATION
3.1 Unpacking
This appliance is supplied with:
• Installation and Operating manual;
• a user manual with warranty card;
• a bleed key;
• a hanging bracket;
• Condensation trap with condensate discharge hose.
Check the appliance immediately on receipt.
Any damages must be reported to the supplier immediately.
All appliances are completely assembled.
Ethos combination boilers are adapted to natural gas G20
3.2 Selecting a location in the house
The front and bottom side of the appliance have to be accessible
for maintenance and service.
Both sides must be placed at least 20 mm from the wall or cabinet wall.
The following facilities must be present at the assembly location:
a) A permanent 230 volt single phase power supply with the boiler being
protected by a double pole switch with minimum openings of 3mm
and fused at 3 amps.
b) Drain connection suitable for condensate discharge.
c) Wall which can support the boiler weight.
The assembly location should be dry and protected from unsuitable weather
conditions such as frost and freezing.
The appliance has a built-in fan which will cause a small degree of noise depending
on the heat input: choose a location in the house where this sound production will
not cause nuisance, preferably against a brick wall.
3.3 Suspending the appliance
Mark off the holes for the hanging bracket and determine the location for
connecting the supply and discharge pipes.

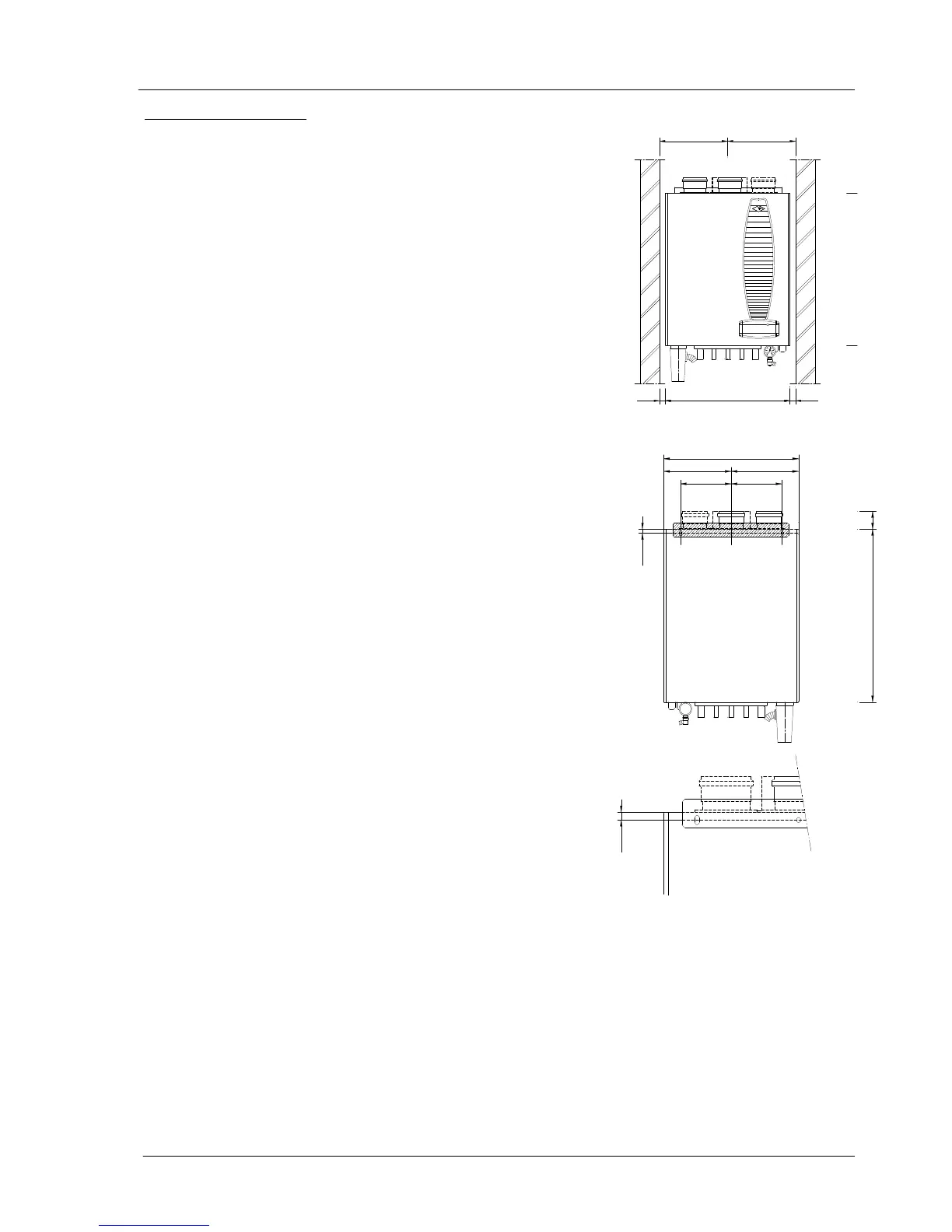

Figure 2 Dimensional sketch of clearances
Figure 3 Dimensional sketch of wall bracket
552 57
226
170170
12,5
Ø8
8x15 8x15
12,5
452
226
246
