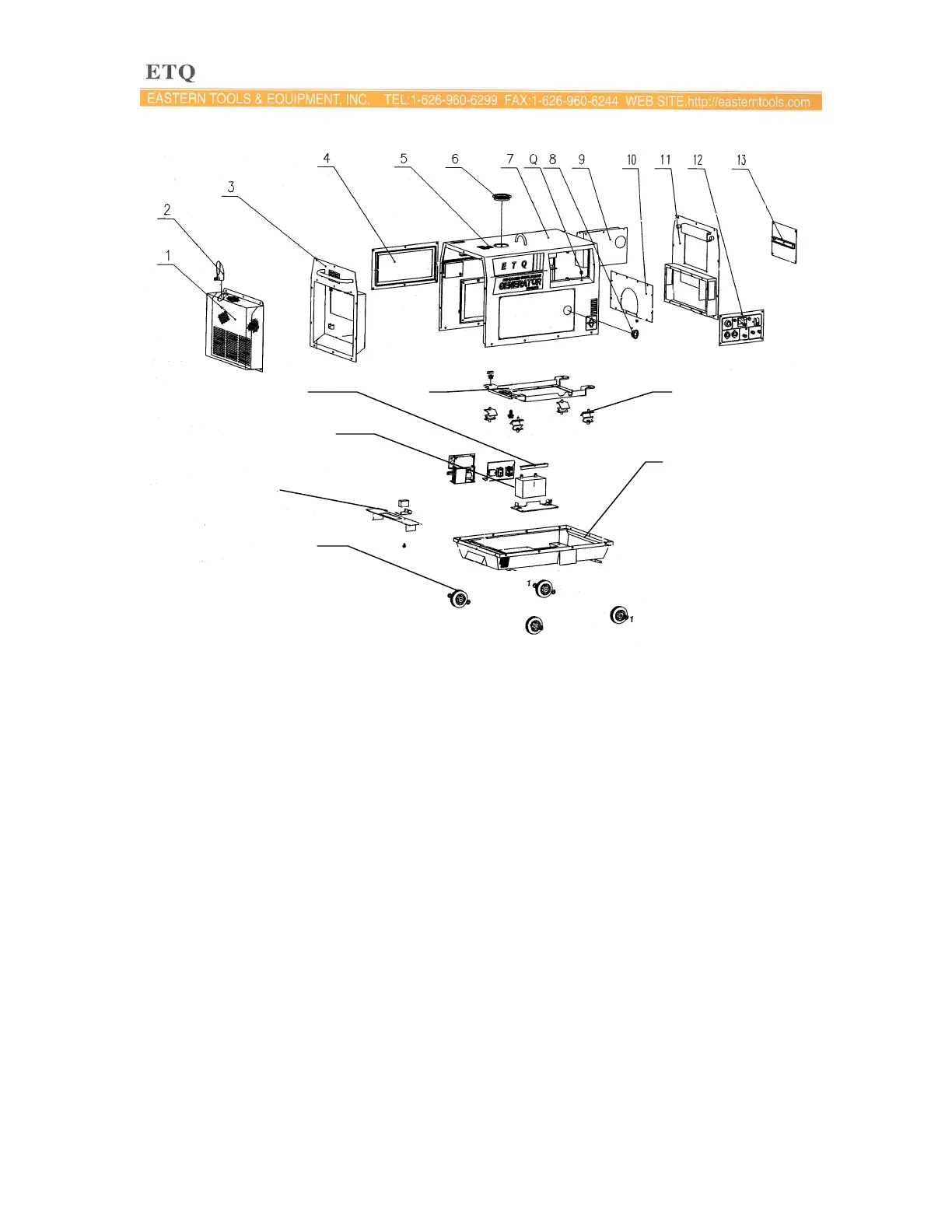

Figure 5-3. Framework exploded view
16
20
18
19 15
14
17
Table 5-2. Please refer to figure 5-3.
Number Part Description Quantity Part Number (4LN / 6LN)
1 Muffler cover plate 1 ETQ4LN17 / ETQ6LN17
2 Muffler elbow 1 ETQ4LN18 / ETQ6LN18
3 Left outer cover 1 ETQ4LN19 / ETQ6LN19
4 Rear door 1 ETQ4LN20 / ETQ6LN20
5 Fuel gauge 1 ETQ4LN21 / ETQ6LN21
6 Fuel tank sleeve 1 ETQ4LN22 / ETQ6LN22
7 Main cover 1 ETQ4LN23 / ETQ6LN23
8 Door knob 1 ETQ4LN24 / ETQ6LN24
9 Air cleaner plate 1 ETQ4LN25 / ETQ6LN25
10 Air deflector cover 1 ETQ4LN26 / ETQ6LN26
11 Right outer cover 1 ETQ4LN27 / ETQ6LN27
12 Output panel assembly 1 ETQ4LN28 / ETQ6LN28
13 Air cleaner cover 1 ETQ4LN29 / ETQ6LN29
14 Lower Chassis 1 ETQ4LN30 / ETQ6LN30
15 Engine tray mounts 4 ETQ4LN31 / ETQ6LN31
16 Engine / Generator tray 1 ETQ4LN32 / ETQ6LN32
17 Wheels 4 ETQ4LN33 / ETQ6LN33
18 Battery 1 ETQ4LN34 / ETQ6LN34
19 Battery tie down 1 ETQ4LN35 / ETQ6LN35
20 Long cover plate 1 ETQ4LN36 / ETQ6LN36
