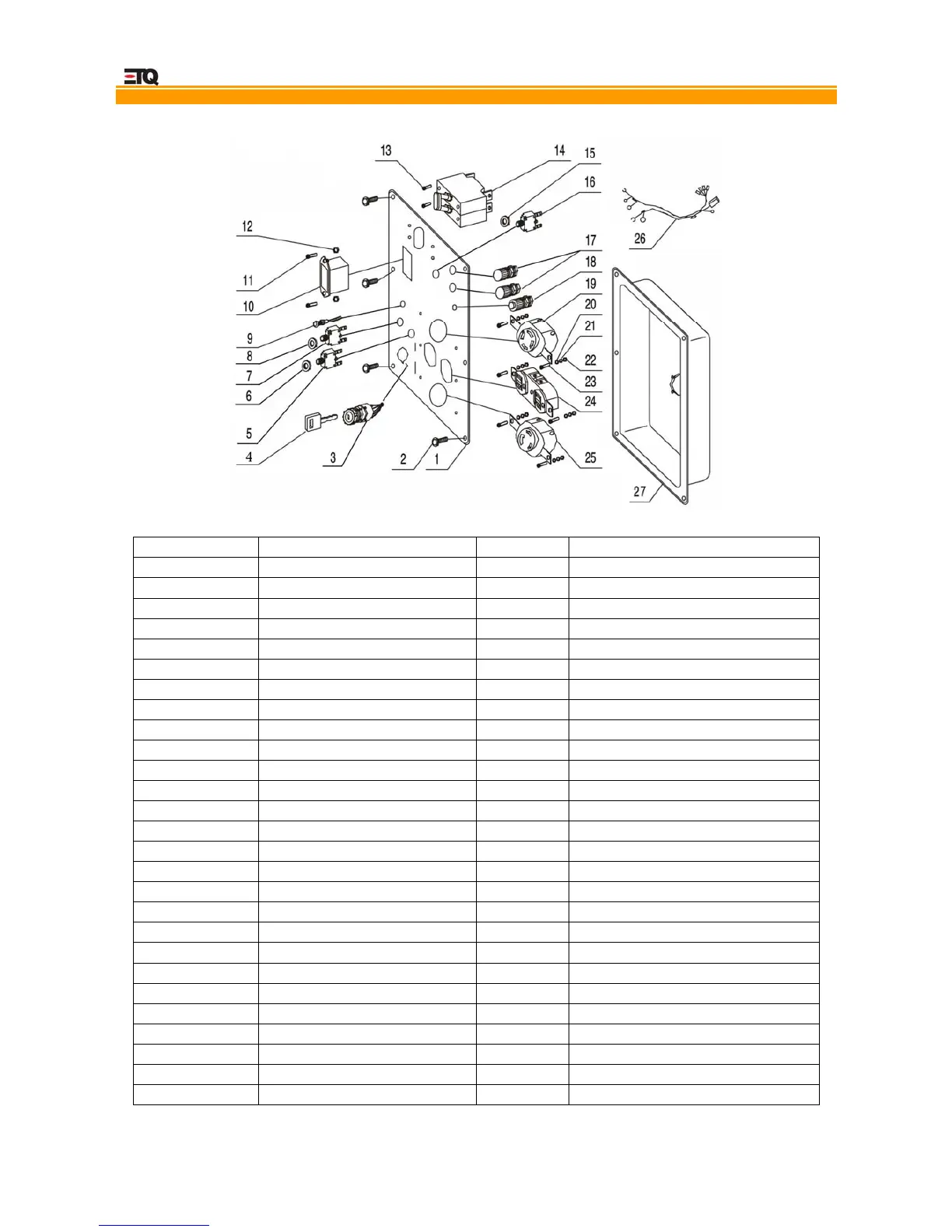

Figure 5-3. Electric panel parts drawing
Table 5-3. Please refer to Figure 5-3
Number Part Description Quantity Part Number
1 Panel 1 ETQDG6LE69
2 Flanged bolt M6x12 6 ETQDG6LE70
3 Starter switch 1 ETQDG6LE71
4 Key 1 ETQDG6LE72
5 AC protector 1 ETQDG6LE73
6 Large nut 1 ETQDG6LE74
7 Battery protector 1 ETQDG6LE75
8 Large nut 1 ETQDG6LE76
9 Oli alert lamp 1 ETQDG6LE77
10 Hour meter 1 ETQDG6LE78
11 Bolt M5x12 2 ETQDG6LE79
12 Nut M5 2 ETQDG6LE80
13 Oval head Bolt M3x8 4 ETQDG6LE81
14 Circuit Breaker 1 ETQDG6LE82
15 Large nut 1 ETQDG6LE83
16 AC protector 1 ETQDG6LE84
17 Positive / Negative DC port 1 ETQDG6LE85
18 Grounded bolt 1 ETQDG6LE86
19 4 prong socket 1 ETQDG6LE87
20 Washer φ4.5 6 ETQDG6LE88
21 Spring washer φ4.2 6 ETQDG6LE89
22 Nut M4 6 ETQDG6LE90
23 Bolt M4x12 6 ETQDG6LE91
24 Double socket 1 ETQDG6LE92
25 3 prong socket 1 ETQDG6LE93
26 Wiring harness 1 ETQDG6LE94
27 Electrical box 1 ETQDG6LE95
