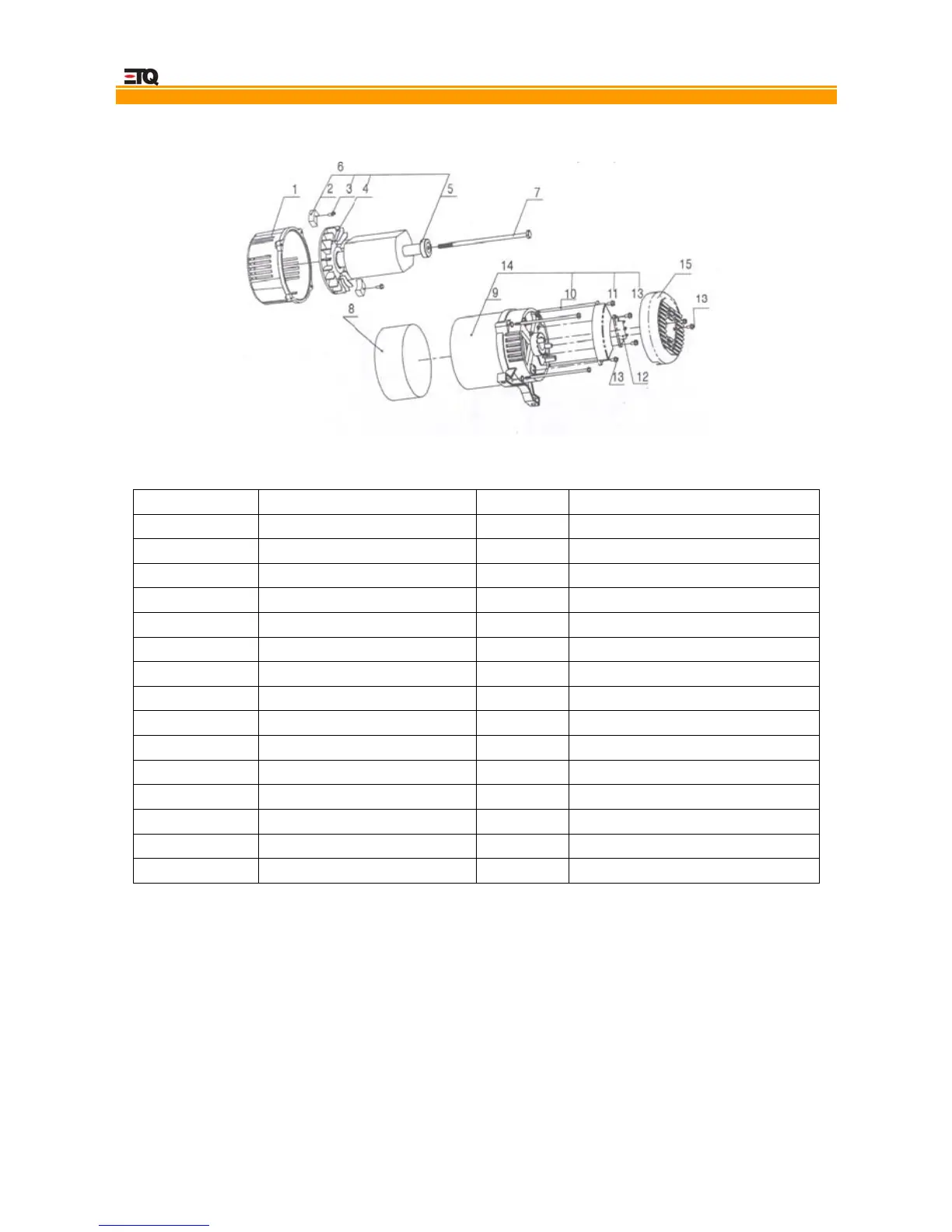

Figure 5-4. Generator head assembly
Table 5-4. Please refer to figure 5-4
Number Part Description Quantity Part Number
1 Front end cover 1 ETQDG6LE96
2 Diode 2 ETQDG6LE97
3 M4 x 8 Bolt 2 ETQDG6LE98
4 Fan Blade 1 ETQDG6LE99
5 Bearing 1 ETQDG6LE100
6 Rotor Unit 1 ETQDG6LE101
7 Center bolt 1 ETQDG6LE102
8 Motor cover 1 ETQDG6LE103
9 Stator 1 ETQDG6LE104
10 Long bolt 4 ETQDG6LE105
11 Capacitor 1 ETQDG6LE106
12 Wiring Seat 1 ETQDG6LE107
13 M5 x 15 Bolt 6 ETQDG6LE108
14 Stator Unit 1 ETQDG6LE109
15 Dust Cover 1 ETQDG6LE110
