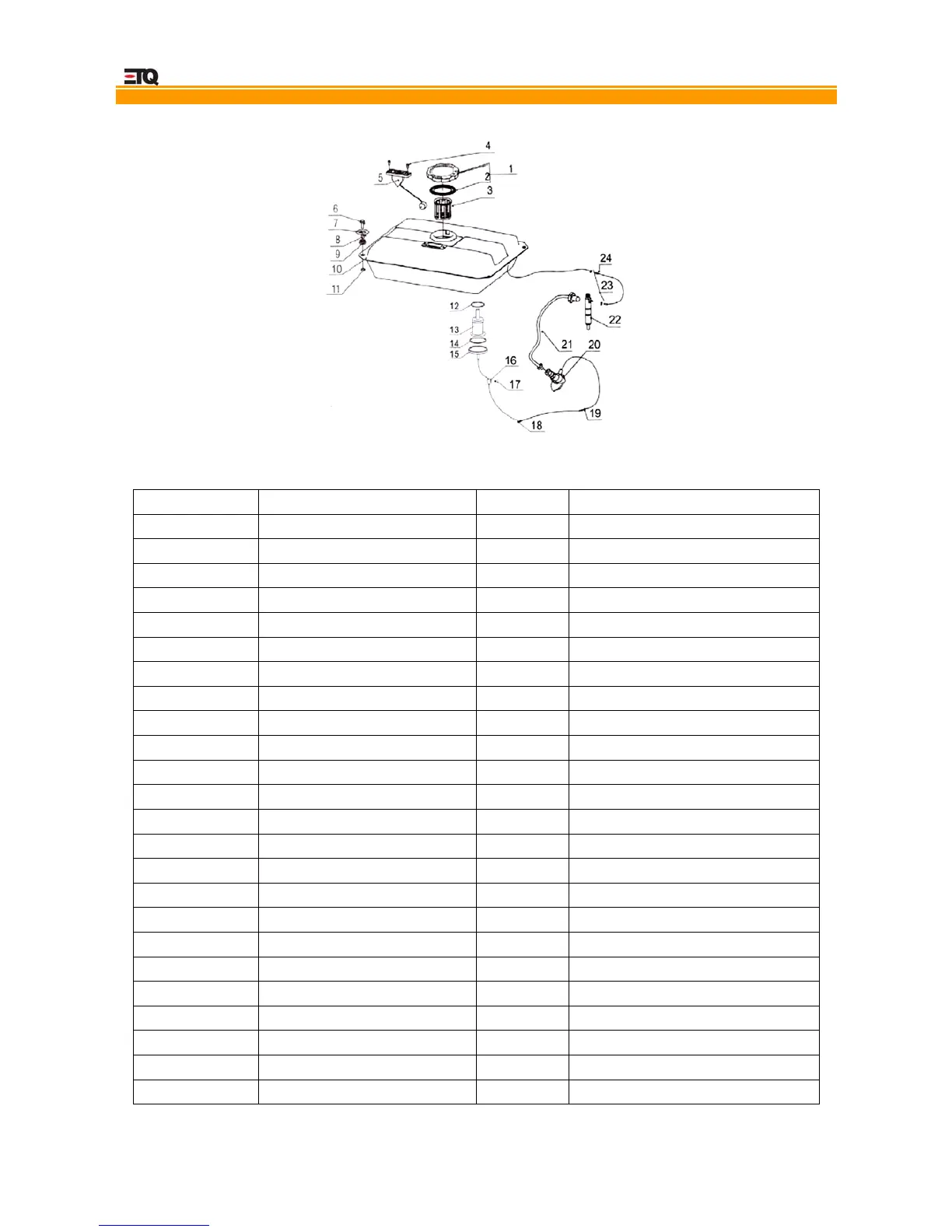

Figure 5-5. Fuel system components
Table 5-5. Please refer to figure 5-5.
Number Part Description Quantity Part Number
1 Fuel Cap 1 ETQDG6LE111
2 Seal 1 ETQDG6LE112
3 Filtering cup 1 ETQDG6LE113
4 M5 x 10 screw 2 ETQDG6LE114
5 Fuel lever indicator 1 ETQDG6LE115
6 M6 x 25 Bolt 4 ETQDG6LE116
7 Large flat washer 6 4 ETQDG6LE117
8 Fuel tank lining 4 ETQDG6LE118
9 Shock absorbing gasket 4 ETQDG6LE119
10 Fuel tank 1 ETQDG6LE120
11 M6 Nut 4 ETQDG6LE121
12 O ring seal 1 ETQDG6LE122
13 Fuel tank filter 1 ETQDG6LE123
14 O ring gasket 1 ETQDG6LE124
15 Fuel filter cover 1 ETQDG6LE125
16 Cover 1 ETQDG6LE126
17 Wing nut 1 ETQDG6LE127
18 Fuel line 2 ETQDG6LE128
19 Fuel inlet pipe 1 ETQDG6LE129
20 High pressure fuel pump 1 ETQDG6LE130
21 High pressure fuel pipe 1 ETQDG6LE131
22 Fuel injector 1 ETQDG6LE132
23 Overfill tube 2 ETQDG6LE133
24 Fuel overfill pipe 1 ETQDG6LE134
