Installation - Remote Connections
NOTE: A T-Max® 1A with a
“master” chip can be substituted
for a 3A.

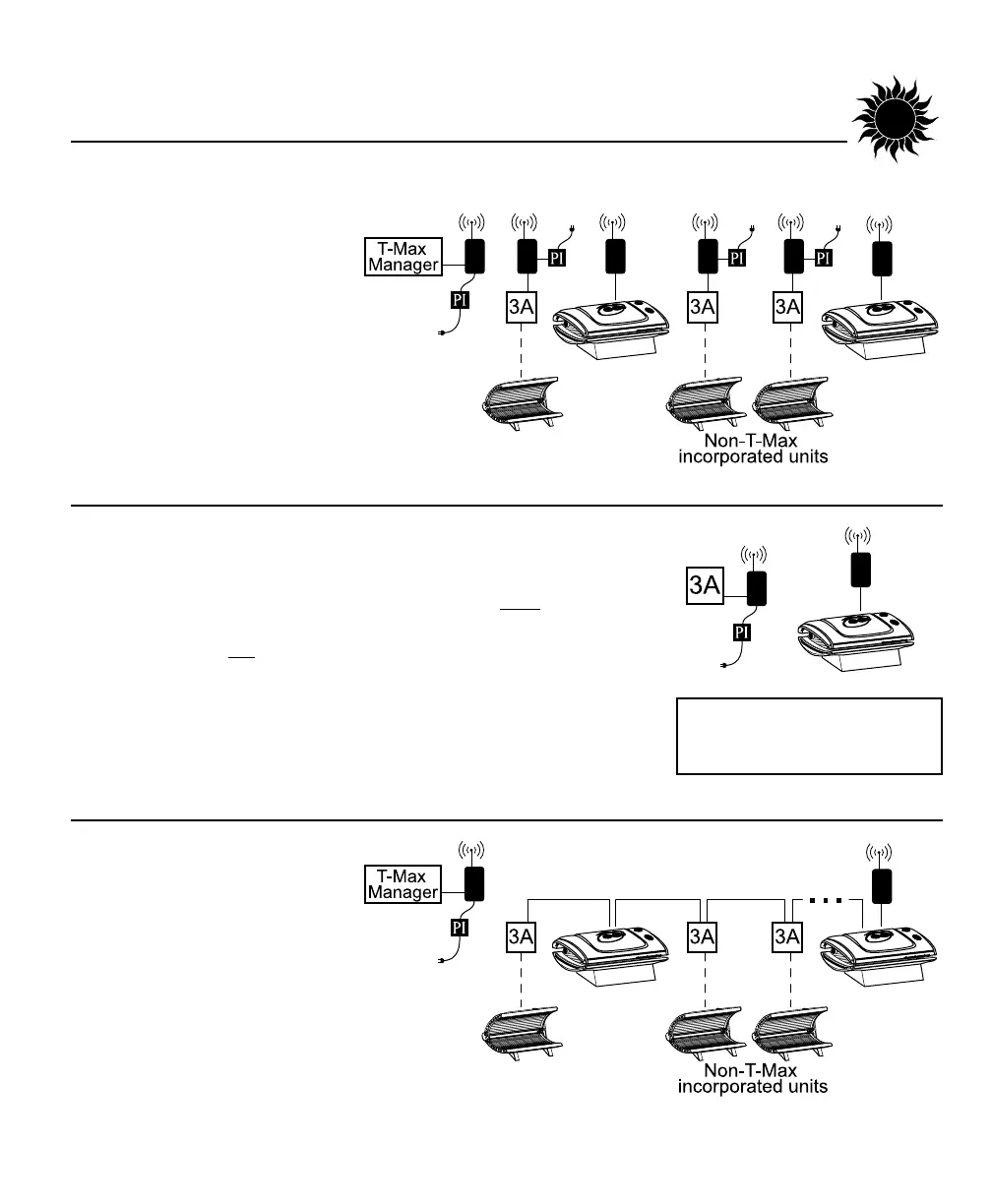

Scenario 1 - T-Max® Manager Series with Complete Wireless
Connect one AP-900 (with Power
Injector) to the Manager and one
AP-900 to each of the tanning
beds. Install as many beds as you
like with this configuration. Units that do
not communicate with T-Max will need
an AP-900 with Power Injector and an
additional 3A to operate. If you have an older
T-Max® Manager that doesn’t support auto
addressing, set the address of each sunbed
manually as described in Setting the address man-
ually. You can place your sunbed at any location in the series.
Scenario 2 - T-Max 3A with Wireless
In single sunbed installations, the T-Max® 1A and 3A can offer the
same control as the T-Max® Manager, eliminating the need for a
Manager. If you’re using a 1A in this manner, it must
have a chip
labelled “master” installed on its circuit board. The remote control
bypass plug must not
be used in this configuration. The 3A may be
used as a “master” with no modification.
After you have set the T-Max® 1A’s, or 3A’s, address to “0” (refer to
your T-Max® user’s guide) and the sunbed’s address to “1”, simply
connect one AP-900 (with Power Injector) to the T-Max® 3A and one
AP-900 to the tanning bed.
Scenario 3 - T-Max® Manager
Series with Wireless combo
Connect one AP-900 (with Power
Injector) to the Manager and one
AP-900 to a wireless ready tanning bed.
The rest of the salon may be “daisy-
chained” together and connected to the
wireless equipped tanning bed, eliminating
the need to wire the Manager to the tanning
beds.
