Installation - Hardware Inventory

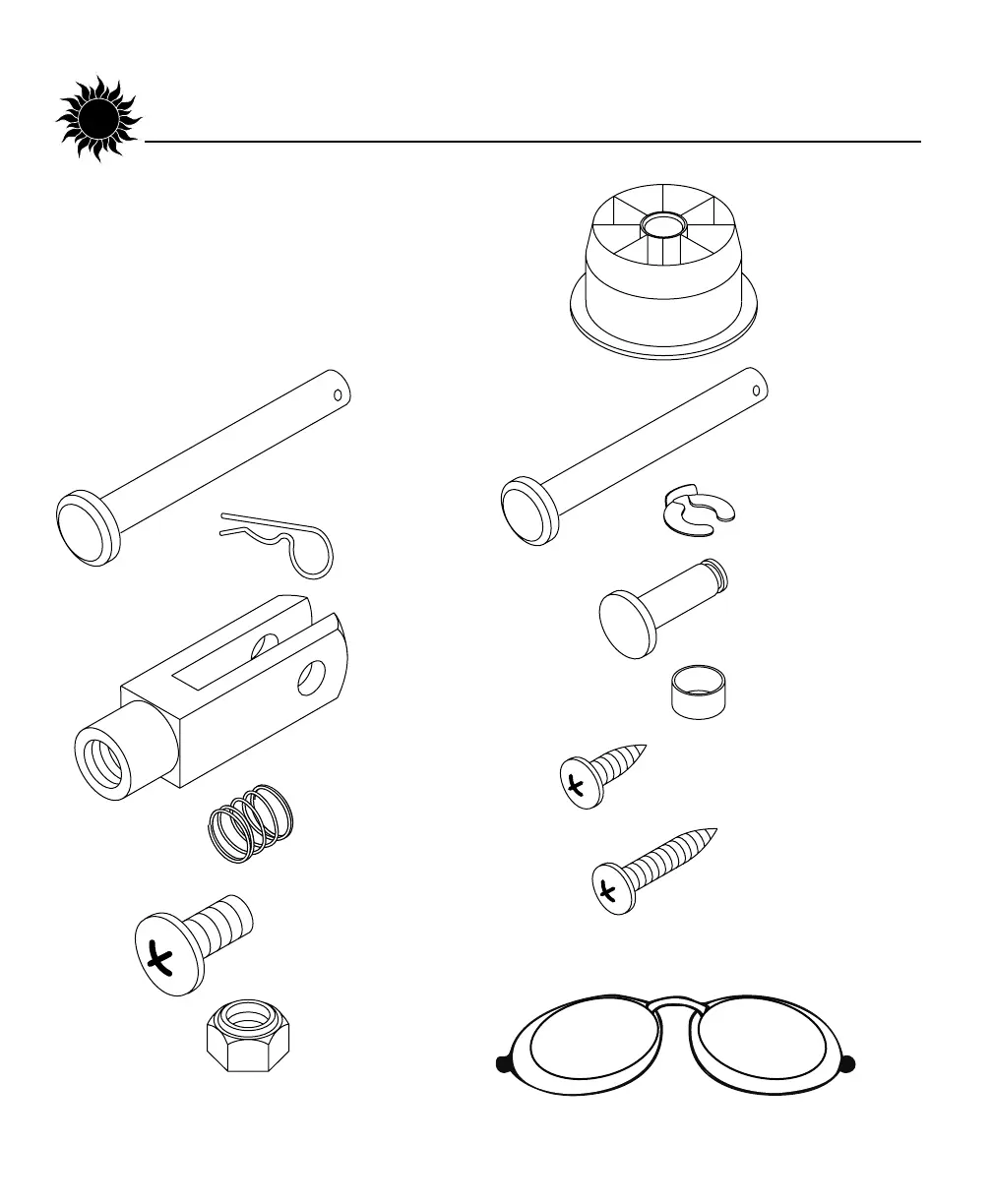

Hardware Inventory
Use the utility knife to cut open the hard-
ware bag. Remove the hardware. Make
sure you have the following items.
Clevis Pin
3/8” x 2 1/64”
Quantity 2
Bridge Pin
Quantity 4
Clevis Fork,
M10 Long
Quantity 4
Centering Spring
Quantity 4
1/4-20 x 1/2”
Machine Screw
Quantity 8
1/4-20 Locknut
Quantity 8
Nylon Floating
Bearing
Quantity 4
Clevis Pin
5/16” x 2 1/32”
Quantity 2
Retaining Ring
Quantity 2
10mm Clevis Pin
Quantity 2
Bronze Bushing
Quantity 2
#10 x 1/2” Screw,
Blue Head
Quantity 8
#10 x 1” Screw,
Quantity 3
Safety Goggles
Quantity 1
