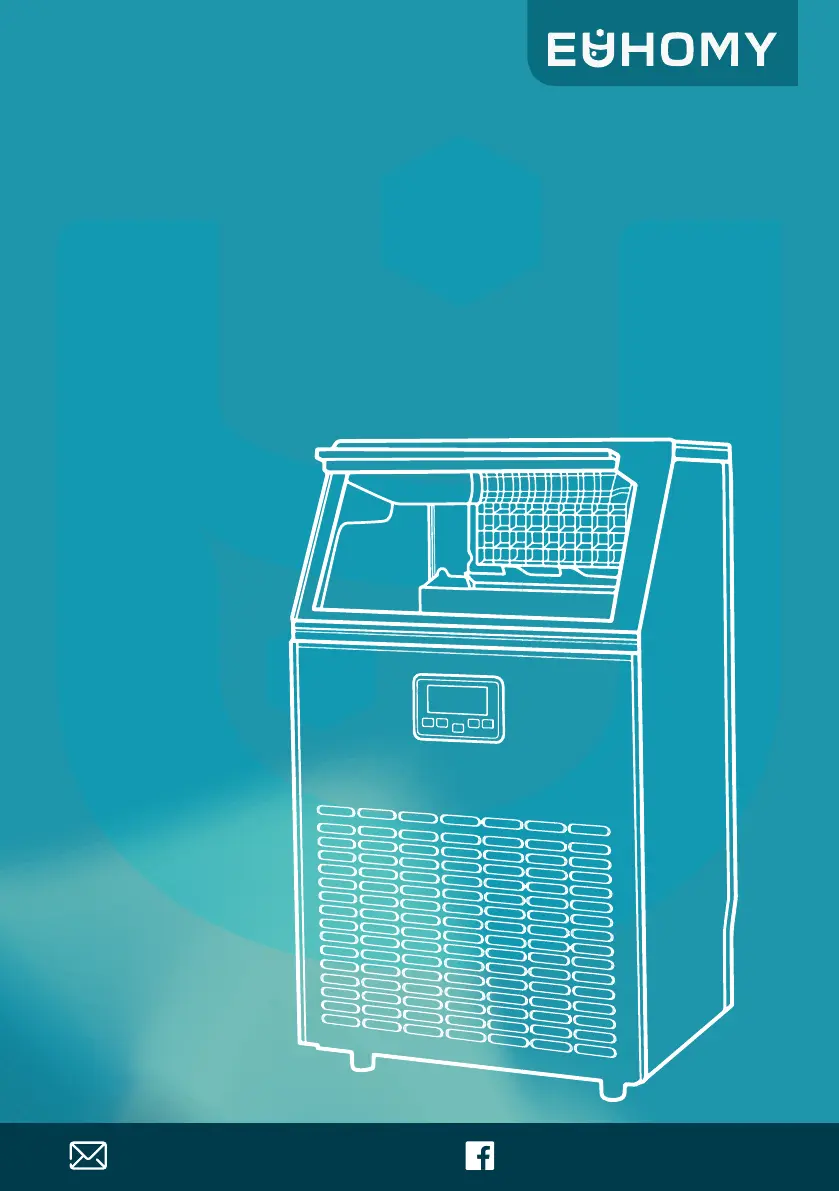

Commercial Ice Maker
SKU：IM-02P
Instruction Manual

Table of Contents

Questions and Answers

  • J
    John MitchellAug 14, 2025
    Why is the 'add water' indicator on my Euhomy IM-02P?
    • L
      lwhiteAug 14, 2025
      The 'add water' indicator turns on due to several reasons: * There is no water supply. Check the main water supply pressure and the water supply hose for blockages. Increase water pressure or clean the hose as needed. * The floating ball of the water level detecting switch is blocked. Clean the water tank and the water level detecting switch. * Water flows out from the water tank. Ensure the unit is on a level surface. * Water flows out from the water drainpipe. Pull out the pipe and reinstall it properly into the slot of the water tank.
  • G
    George WolfeAug 17, 2025
    Why is my Euhomy IM-02P Ice Maker not producing ice, even though the cycle seems normal?
    • C
      Crystal JohnsonAug 17, 2025
      If the ice making cycle is normal, but no ice is produced, the ambient temperature or the water temperature in the tank might be too high. Move the unit to a place where the temperature is below 90°F (32°C) and use low-temperature water. Other potential causes include refrigerant leakage or a clogged cooling system tube, both of which require a qualified technician to address.
  • S
    smithnatashaAug 21, 2025
    Why is the 'ice full' indicator on my Euhomy IM-02P?
    • D
      daniel40Aug 21, 2025
      The 'ice full' indicator illuminates when the ice storage bin is full. Simply remove some ice cubes to resolve this.
  • A
    amber69Aug 25, 2025
    What to do if my Euhomy IM-02P starts making ice but no water flows in and the 'add water' indicator flashes?
    • C
      Carolyn SpencerAug 25, 2025
      If the unit starts to enter the ice making process, but no water flows in the unit, and the 'add water' indicator flashes, it indicates a water supply issue. Check the main water supply pressure and ensure the water supply hose isn't blocked. Increase the water pressure or clean the hose if necessary.
  • C
    charlesdonaldAug 27, 2025
    What to do if my Euhomy IM-02P Ice Maker's water pump is working, but no water flows out from the water dividing pipe?
    • C
      chasewongAug 27, 2025
      If the water pump is working, but no water flows out from the water dividing pipe, it's likely that the small holes on the water dividing pipe are blocked. Clean these holes to restore water flow.
  • S
    Sara BairdAug 30, 2025
    Why Euhomy IM-02P ice cube shape is irregular?
    • D
      Darren SanfordAug 31, 2025
      The ice cube shape may be irregular if the water quality is not good, or the water tank is very dirty, or the little holes on the water dividing pipe is some blocked. Water supplying hose breakdown, or water flows in very slowly. The little holes on the water dividing pipe is blocked.
  • K
    Kevin SextonSep 3, 2025
    Why are the ice cubes from my Euhomy Ice Maker not transparent?
    • M
      morrisonsabrinaSep 3, 2025
      If the ice cubes aren't very transparent, it could be due to poor water quality. Try changing the water supply or using a water filter to soften or filter the water.
  • E
    ewhiteSep 6, 2025
    Why is my Euhomy Ice Maker making very thin ice cubes?
    • J
      johnnypattonSep 6, 2025
      Very thin ice cubes can result from a high ambient temperature or poor air circulation around the unit. Water quality is bad.
  • C
    Carol HullSep 10, 2025
    Why are the ice cubes from my Euhomy IM-02P Ice Maker too thick?
    • M
      Marisa PowellSep 10, 2025
      If the ice cubes are too thick, the ambient temperature might be too low. Try reducing the time of each ice making cycle.

Summary

Frequently Asked Questions (FAQ)

Cleaning and Maintenance Advice

Guidance on regular cleaning frequency and methods to prevent issues.

Ice Quality and Appearance

Addresses cloudiness and plastic smells, suggesting water quality and cleaning solutions.

Operational Performance Issues

Solves issues like fast melting, thick ice, leaks, and no ice production.

Safety Precautions

General Safety Guidelines

Essential safety instructions for operating the ice maker to prevent fire, shock, and injury.

Electrical and Refrigerant Safety

Covers electrical grounding, power supply, and risks associated with flammable refrigerants.

Installation and Placement Requirements

Details proper placement, ventilation, wiring, and dimensions for safe operation.

Operation and Installation

Main Unit Components

Identifies and describes the key parts of the ice maker's main unit.

Ice Making System Parts

Details the components of the ice-making module and water tank system.

Control Panel Overview

Explains the functions of the LCD display and control buttons on the operation panel.

Exploded View and Parts List

Provides an exploded view of the ice maker and a detailed list of all parts.

Detailed Parts Identification

Continues the list of ice maker components, materials, and quantities.

Unpacking and Initial Setup

Instructions for unpacking, cleaning, and initial placement of the ice maker.

Installation and Electrical Connection

Details ventilation, spacing, water supply, and proper electrical grounding for installation.

Initial Cleaning Procedure

Step-by-step guide for cleaning the ice maker before its first use.

Connecting Water Supply

Instructions for connecting the water supply hose, either to mains or bottled water.

Water Supply Options and Drainage

Details connecting bottled water and the water drain pipe for operation.

Ice Making Process Overview

Illustrates the sequence of operations for the ice making cycle.

Detailed Ice Making Cycle Steps

Explains each step of the ice making, water filling, and ice collection process.

Advanced Operation Settings

Covers ICE-FULL status, adjusting ice making duration, self-cleaning, and timer functions.

LED Lights and Error Codes

Explains the operation of internal LED lights and interpretation of error codes (E1, E2).

Water Drainage and Normal Sounds

Details water drainage procedures and describes expected operational sounds.

Preparing for Long Storage

Instructions for preparing the ice maker for extended periods of non-use.

Cleaning and Maintenance Guidelines

General warnings and guidelines for cleaning and maintaining the ice maker.

Tips & Maintenance

Storage Preparation and Usage Tips

How to prepare for storage and advice on what not to do with the ice bin.

Exterior Cleaning Instructions

Guidance on cleaning the exterior of the ice maker using appropriate solutions.

Interior Cleaning Procedures

Detailed steps for cleaning the ice storage bin and ice-making parts.

System Cleaning with Cleaner

Instructions for cleaning the water tank and ice-full detecting plate using a cleaner.

Deep Cleaning and Daily Care

Procedures for self-cleaning the system and daily cleaning of specific parts.

Periodic and Disposal Guidelines

Recommends semi-monthly/annual cleaning and provides disposal instructions.

Specifications

Technical Specifications Table

Lists key technical details including SKU, power, capacity, dimensions, and operating conditions.

Electrical and Wiring Diagrams

Presents the electrical diagram and wiring diagram for the ice maker.

Understanding Normal Operational Sounds

Describes common sounds the ice maker might produce during operation.

Warranty Information

Limited Warranty Terms

Details the limited 1-year warranty, exclusions, and service claims.

Troubleshooting Guide

Problem Diagnosis and Solutions

A table listing common problems, their possible causes, and recommended solutions.
