Eumig MARK 607D - Component Replacement; Pilot Light Bulb Replacement; Drive Belt Replacement

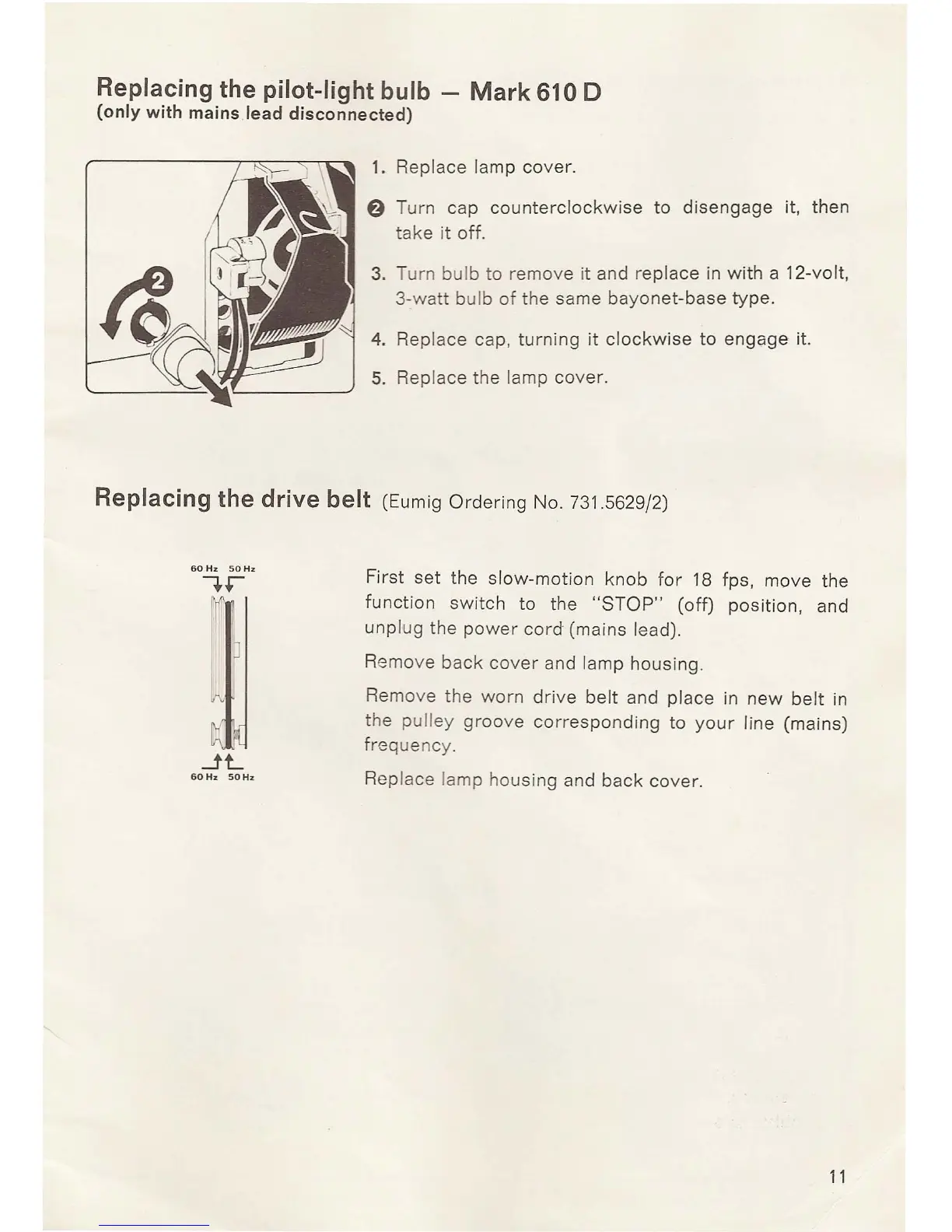

Replacing the pilot-light bulb - Mark 610 D
(only with mains lead disconnected)
1. Replace lamp cover.
t) Turn cap counterclockwise to disengage it, then
take it off.
3. Turn bulb to remove it and replace in with a 12-volt,
3-watt bulb of the same bayonet-base type.
4. Replace cap, turning it clockwise to engage it.
5. Replace the lamp cover.
Replacing the drive belt (Eumig Ordering No. 731.5629/2)
60Hz 50Hz
r
Jot....
60Hz 50Hz
First set the slow-motion knob for 18 fps. move the
function sWitch to the "STOP" (off) position, and
unplug the power cord (mains lead).
Remove
back cover and lamp housing.
Remove the
worn drive belt and place in new belt in
the pulley groove corresponding to your line (mains)
frequency.
Replace lamp housing and
back cover.
