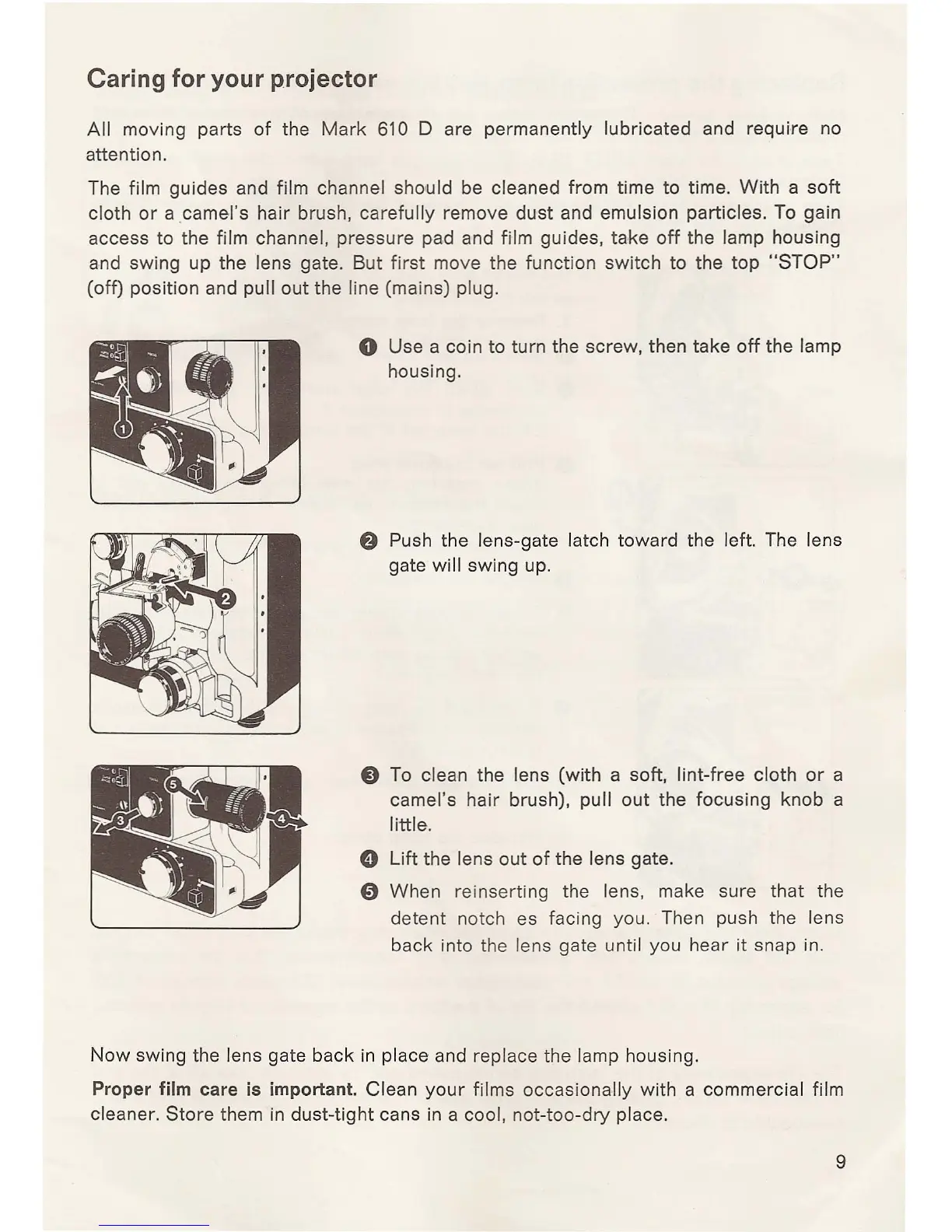

Caring for your projector
All
moving parts
of
the
Mark
610 D are permanently lubricated and requi·re no
attention.
The film gUides and film channel should be cleaned from time to time.
With
a
soft
cloth
or
a
camel's
hair brush, carefully remove
dust
and emulsion particles. To gain
access to the film channel, pressure pad and film guides, take
off
the lamp housing
and swing up the lens gate. But first move the function switch to the top
"STOP"
(off) position and pull
out
the line (mains) plug.
o Use a coin to turn the screw, then take
off
the lamp
housing.
e Push the lens-gate latch toward the left. The lens
gate will swing up.
C)
To
clean the lens (With a soft, lint-free cloth
or
a
camel's hair brush), pull
out
the focusing knob a
little.
o
Lift
the lens out
of
the lens gate.
o When reinserting the lens, make sure
that
the
detent notch es facing you. Then push the lens
back into the lens gate until you hear it snap in.
Now
swing the lens gate
back
in
place and replace the lamp housing.
Proper
film
care
is
important. Clean
your
films occasionally with a commercial film
cleaner.
Store
them
in
dust-tight cans
in
a cool, not-too-dry place.
9
