ML530 Manual Version 1.0 Page 7 ©1999 Euphonix, Inc.
Physical Specifications

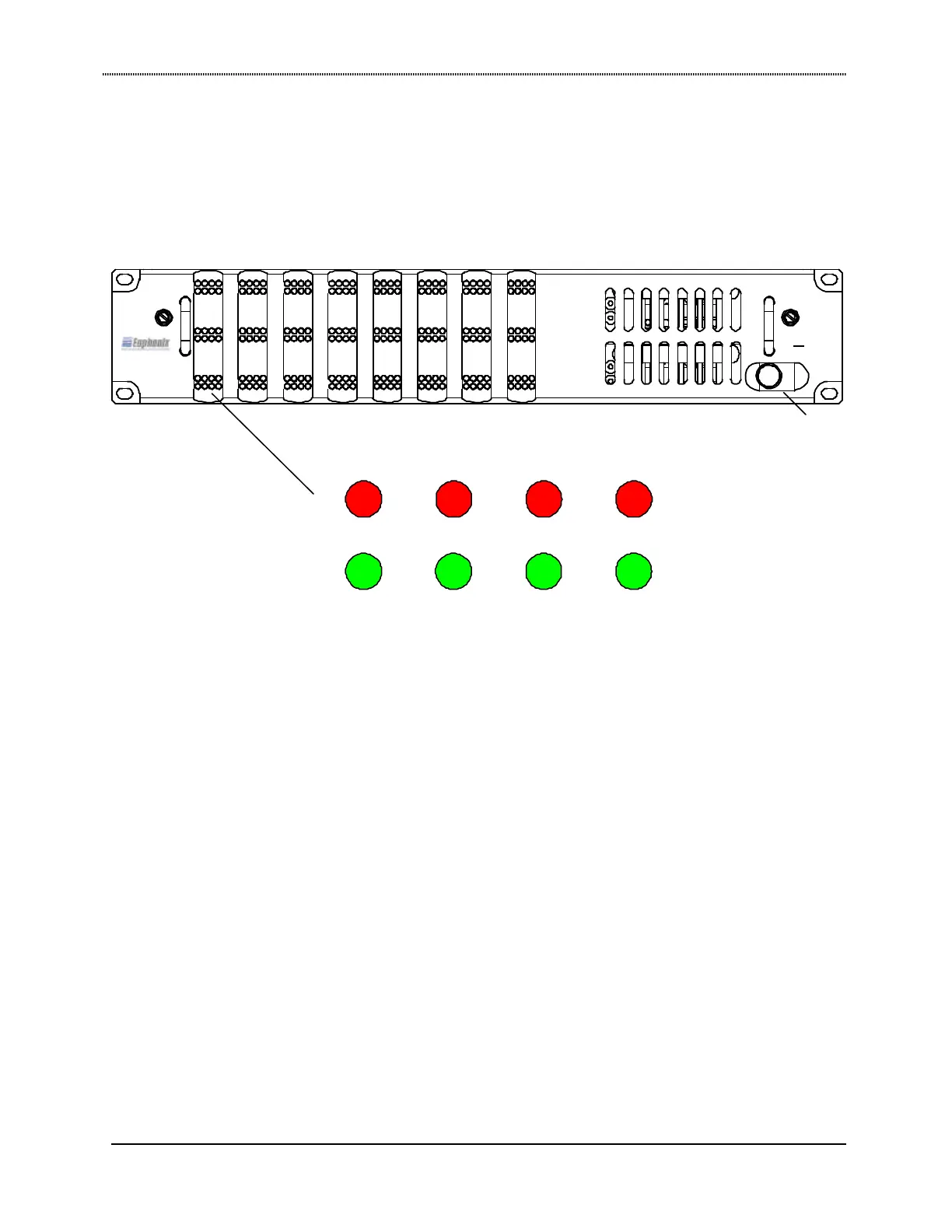

Front Panel
LEDs 8 LEDs provide status information for each of the 24 channels as follows:
Clip Signal clipping (red)
Mute Channel muted (red) (currently not implemented)
LowZ Low impedance (red)
48V Phantom power (red)
Sig signal present (green) (currently not implemented)
HPF High pass filter (green)
Phase Phase invert (green) (currently not implemented)
Pad 12 dB attenuation (green) (currently not implemented)
Power Switch On/Off button powers the unit up.
Since the ML530 is digitally controlled via software, there are no other user controls on the
front panel.
LEDs
9 10 11 12 13 14 15 16
MIC LINE INTERFACE
ML
530
1 2 3 4 5 6 7 8
17 18 19 20 21 22 23 24
Clip Mute LowZ 48V
PadPhaseHPFSig
(Red)
Power Switch
