INTRODUCTION
REGULAR AND PERIODIC SERVICING OF YOUR SCRUBBER GUARANTEES OUTSTANDING
PERFORMANCE OF THE MACHINE AND ITS LONG LIFE. THE PAGES THAT FOLLOW CONTAIN
THE INFORMATION THAT WILL HELP TO PLAN THE CARE AND THE SERVICING THAT THE
SCRUBBER NEEDS.
WARNING!
DO NOT CARRY OUT ANY MAINTENANCE OPERATION NEITHER ON THE MACHINE NOR ON ITS
COMPONENTS WITHOUT HAVING FIRST:
- STOPPED THE MACHINE
- ENGAGED THE PARKING BRAKE
- BLOCKED OFF THE WHEELS
- DISCONNECTED THE STARTING BATTERY CONNECTORS.
WARNING!
DO NOT TAMPER WITH ANY SAFETY-RELATED PART
THESE CAN BE REMOVED ONLY AS PART OF THE MAINTENANCE OF AN AUTHORISED
SERVICE CENTRE.
DRAINING AND CLEANING THE RECOVERY TANK
FOR VERSIONS: E51 V1 BASIC-E51 V2 TRAC-E51 V3 ECO-E61 V1 BASIC-E51 V2
TRAC-E51 V3 ECO-M510 V1 BASIC-M510 V2 TRAC-M510 V3 ECO-M610 V2 TRAC-
M610 V3 ECO
The recovery tank must be drained and cleaned after each washing operation.
In order to drain and wash the tank proceed as follows:
Turn off the brush function and lift the brush plate;
Lift the squeegee by pressing the special lever and go to the tank drainage area with the suction fan in on-position;
Turn off the suction fan, turn the key to position 0 for the versions provided with a key and put on the
brake (if available); for the BASIC version try to stop the machine in a flat surface area;

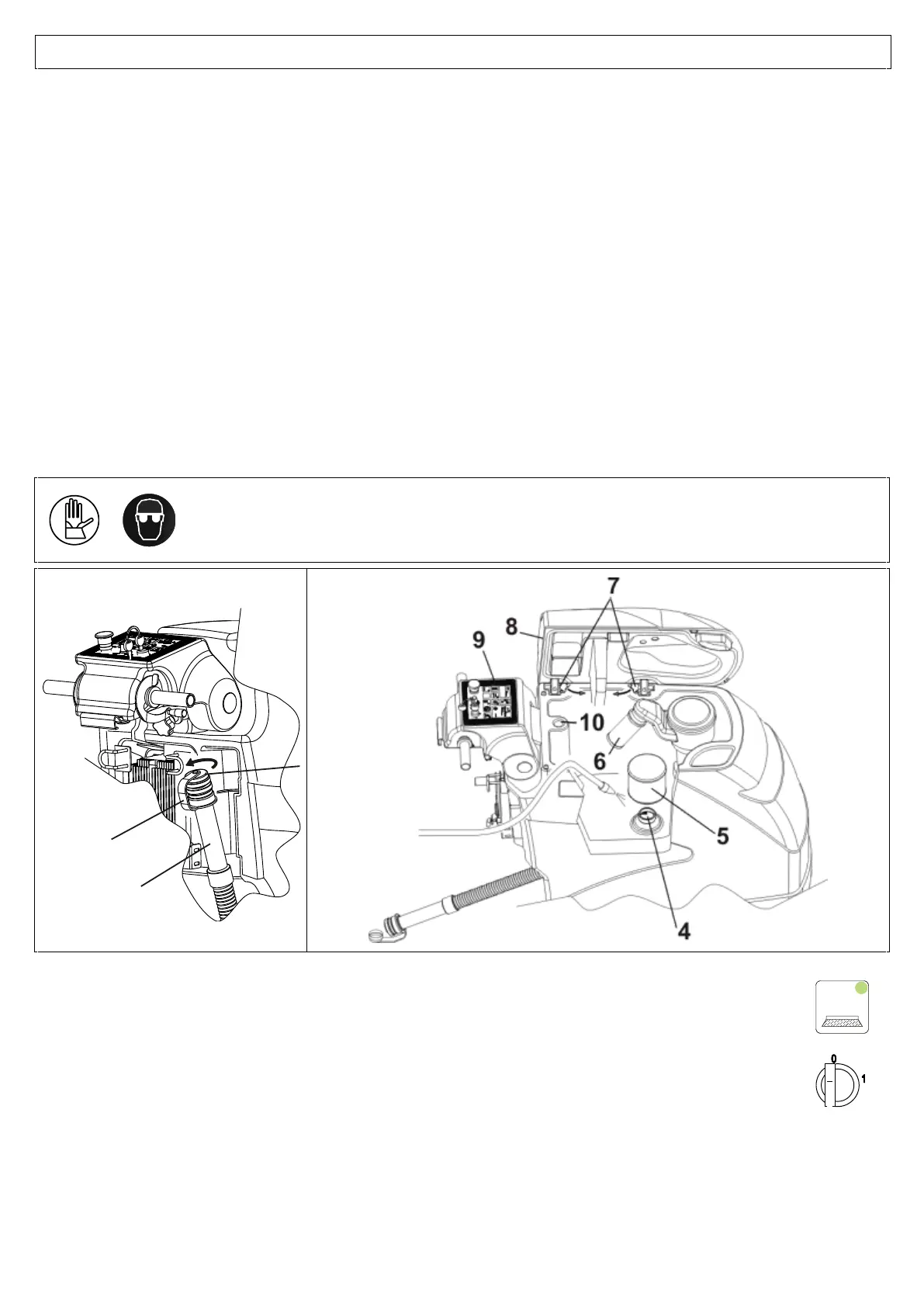

Remove the drain pipe from the dirty water tank (see position 1) and while keeping the pipe vertically (see position 2)
open the lid by rotating it counterclockwise as indicated by the arrow. Part of the pipe is flexible (see position 3) and
therefore it can be squeezed to limit the water flow;
After draining the tank, make sure to clean it thoroughly using water. To ease this operation, use two fingers to rotate
the 2 plates in the direction indicated by the arrows (see position 7) and remove the cover (see position 8);
Wash the float valve (see position 6) without removing it from the machine.
