Eureka E51 BASE - INSTALLING BATTERIES

11

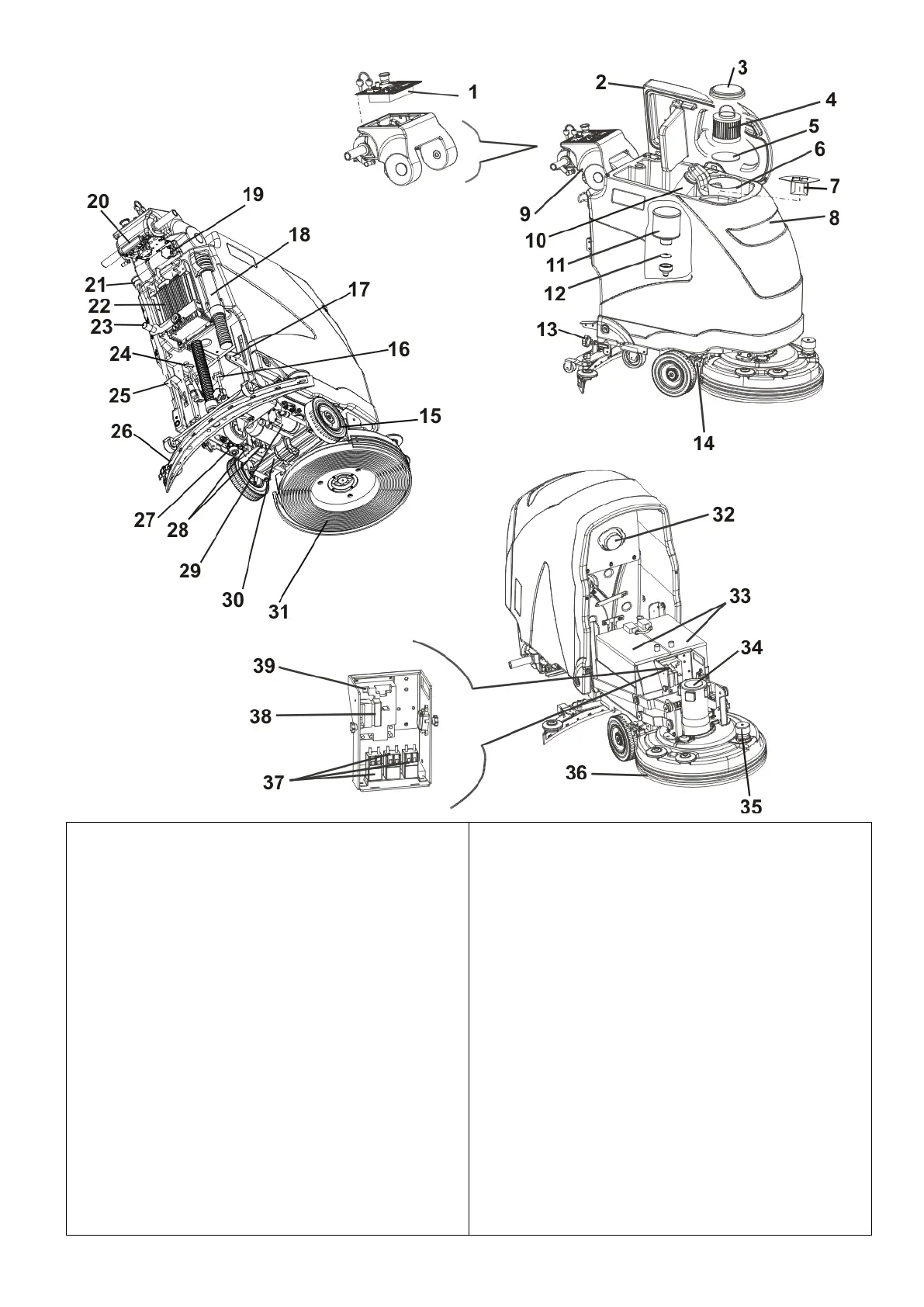

E 51 – M 510
1. Control board (TRAC and ECO versions)
2. Tank lid
3. Suction filter lid
4. Suction filter (TRAC and ECO versions)
5. Safety suction filter
6. Filter support
7. Drum of the clean water filter
8. Tank
9. Control panel
10. Suction lock float with filter
11. ECO-SYSTEM filter (ECO version)
12. ECO-SYSTEM safety filter (ECO version)
13. Squeegee slope adjustment hand-wheel
14. Tank unlock lever
15. Wheels
16. Squeegee pressure adjustment hand-wheel (TRAC
and ECO versions)
17. Brush plate lift pedal
18. Recovery tank outlet pipe
19. Instrument panel inclination adjustment hand-wheel
(TRAC and ECO versions)
20. Anti-crushing device (TRAC and ECO
versions)Level indicator pipe and solution tank outlet
drain
21. Battery charger
22. Squeegee lever
23. Battery mobile connector
24. Brake pedal (TRAC and ECO versions)
25. Squeegee
26. Detergent solution filter (TRAC and ECO versions)
27. Solenoid valves (TRAC and ECO versions)
28. Water pump (ECO version)
29. Drive gear motor (TRAC and ECO versions)
30. Brush
31. Vacuum motor
32. Batteries
33. Brush gear motor
34. Brush inclination adjustment knob (TRAC and ECO
versions)
35. Splashguard
36. Contactors
37. Fuse holder
38. Drive board (TRAC and ECO versions)
