Selecting the Installation Place (Cont.)
Outdoor unit
• Do not install the unit:
•Near sources of heat, steam or
flammable gas.
•Where it is exposed to high
winds or excessive dust.
•Where people often pass.
• Avoid installing the unit where it
will be exposed to direct sunlight
(otherwise use a protection that will
not interfere with the airflow).
• Select a place where the air
discharge and operating sound
level will not disturb neighbours.

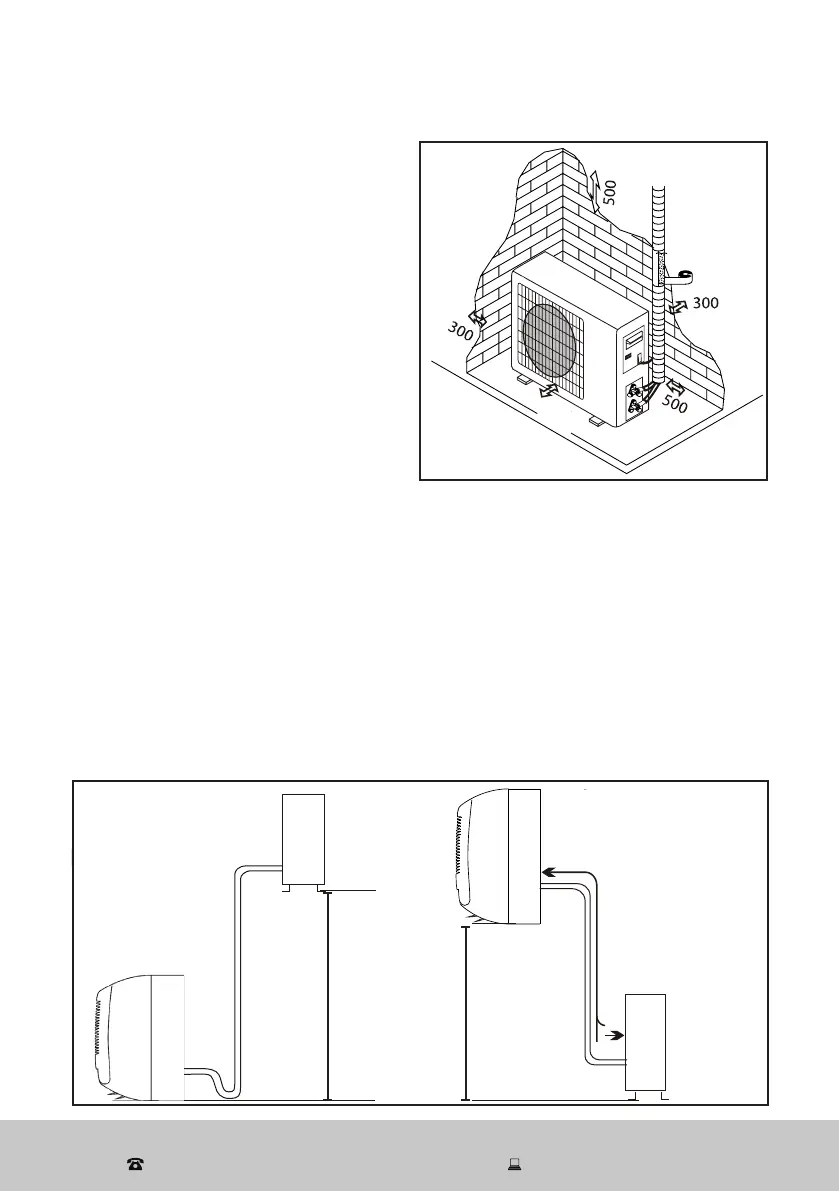

Installation diagram (Fig. 6)
Only persons and/or companies qualified and experienced in the installation,
service and repair of refrigerant products should be permitted to do so. The
purchaser must ensure that the person and/or company who is to install,
service or repair this air conditioner has qualifications and experience in
refrigerant products.
• Leave the minimum clearances around the unit for free air circulation:
2000 mm at the front, 300 mm at the left side and behind the unit, and
500 mm at the right side and above the unit (Fig. 5).
• Install the outdoor unit in a safe and solid place.
• If the outdoor unit is subject to vibration, place rubber gaskets on the unit’s feet.
Minimum
clearances (mm)
2000
Height should be less
than 5m
Height should be less
than 5m
Outdoor unit
Outdoor unit
Indoor unit
Indoor unit
Fig. 6
Fig. 5
