Installation (Cont.)
Electrical connections for the indoor unit
• Lift the front panel of the
unit.
• Take off the cover, as
indicated (Fig. 15), by
removing a screw or
breaking the hooks.
• For the electrical
connections, see the
circuit diagram on the
right part of the unit
under the front panel.
• Connect the cable wires to the screw terminals by following the numbering.
Use wire of a size suitable to the electric power input (see the unit rating
plate) and according to all current national safety code requirements.
• Do not bend the drain hose or leave it protruding or twisted, and do not put
the end of it in water. If an extension is connected to the drain hose, ensure
that it is lagged when it passes into the indoor unit.
• If the piping is installed to the right, the pipes, power cable and drain
hose must be lagged and secured onto the rear of the unit with a pipe
connection.
1) Insert the pipe connection into the relative slot.
2) Press to join the pipe connection to the base.

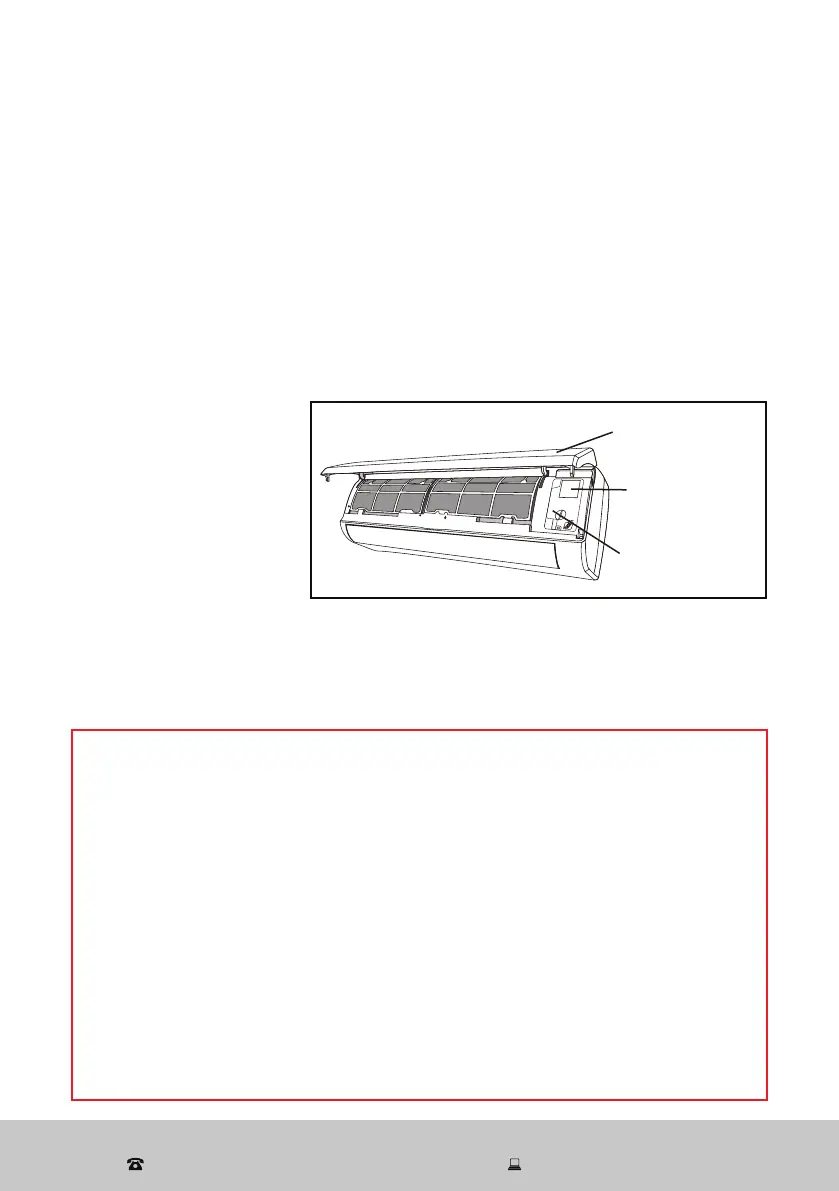

Control box
cover
Wiring diagram
Front panel
Fig. 15
CAUTION!
• The cable connecting the outdoor and indoor units must be suitable for
outdoor use.
• The plug must be accessible after the appliance has been installed so
that it can be pulled out if necessary.
• An efficient earth connection must be ensured.
• The appliance must be fitted with means for disconnection from the
supply mains having a contact separation in all poles that provide full
disconnection under overvoltage category III conditions, and these
means must be incorporated in the fixed wiring in accordance with the
wiring rules.
• If the power cable is damaged, it must be replaced by an authorised
service centre. Contact the after sales support line for advice on
replacement.
