Installation (Cont.)
Torque
wrench

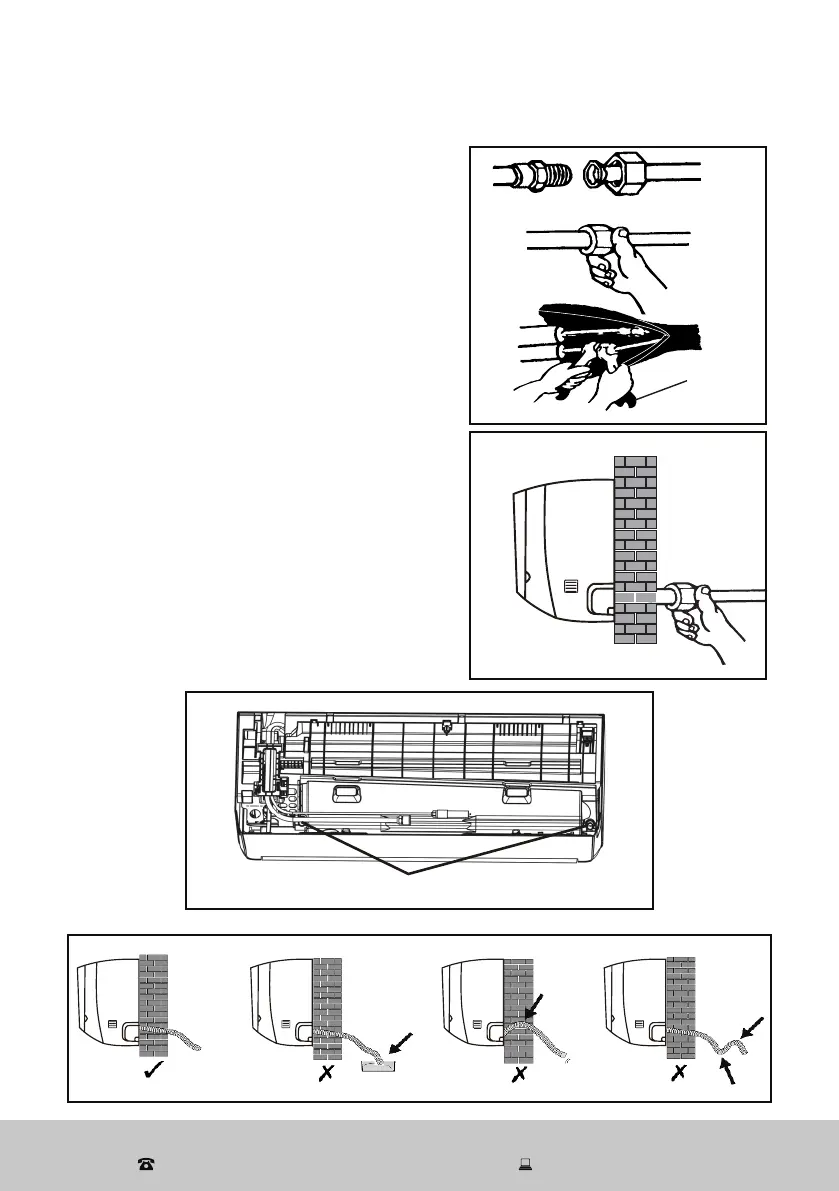

• Tighten the connections by using two
torque wrenches and turning them in
opposite directions (Fig. 11).
• Wrap the joint with the insulation pipe.
Note: For R32 refrigerant, the connector
must be located outdoors (Fig. 12).
Condensed water drainage from the
indoor unit
The condensed water drainage from the
indoor unit is fundamental for the success
of the installation.
• Adjust the drainage hose (if applicable).
• In some models, both sides of the indoor
unit are provided with drainage ports.
You can choose one of these to attach
the drainage hose. Plug the unused drain
port with the rubber plug (found in one of
the ports) (Fig. 13).
• Place the drain hose below the piping,
taking care not to create siphons.
• The drain hose must slant downwards to
aid drainage (Fig. 14).
Drainage ports
Outside
Inside
Fig. 11
Fig. 12
Fig. 13
Fig. 14
