Installation (Cont.)
Refrigerant piping connection

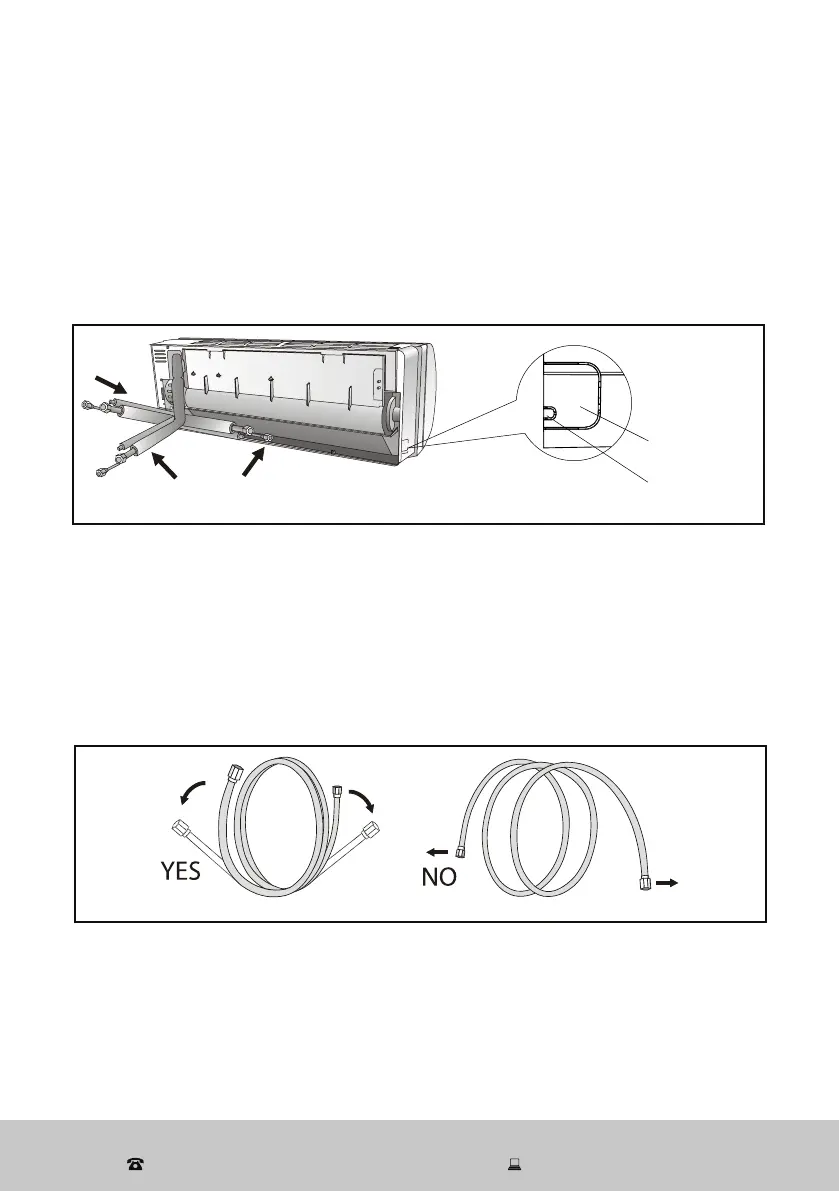

• The piping can be run in the three directions, as indicated by the numbers 1
to 3 in Fig. 9. When the piping is run in directions 1 or 3, cut a notch along
the groove on the side of the indoor unit with a sharp blade.
• Run the piping in the direction of the wall hole and bind the copper pipes,
the drain pipe and the power cables together with tape at the bottom.
Connecting the pipes
• Do not remove the cap from the pipe until connecting it, to avoid moisture
or dirt from entering.
• If the pipe is bent or pulled too often, it will become stiff. Do not bend it
more than three times.
• When extending rolled pipe, straighten the pipe by unwinding it gently, as
illustrated (Fig. 10).
3
2
1
Piping outlet
Cable outlet
Connections to the indoor unit
• Remove the indoor unit pipe cap and check that there is no debris inside.
• Insert the nut and create a flange at the extreme end of the connection
pipe.
Fig. 9
Fig. 10
