Installation (Cont.)
Electrical connections
• Ensure the mains power is switched off, before using a phillips head
screwdriver to remove the wiring cover.
• Unscrew the cable clamp and remove it (Fig. 19).
• For the electrical connections, see the wiring diagram on the back of
the cover. Connect the wires to their matching terminals, ensuring all
connections are firmly secured.
• Once the connections are secure, fasten the cables with a cable clamp.
• There must be an efficient earth connection.
• Replace the cable clamp and reattach the wiring cover.

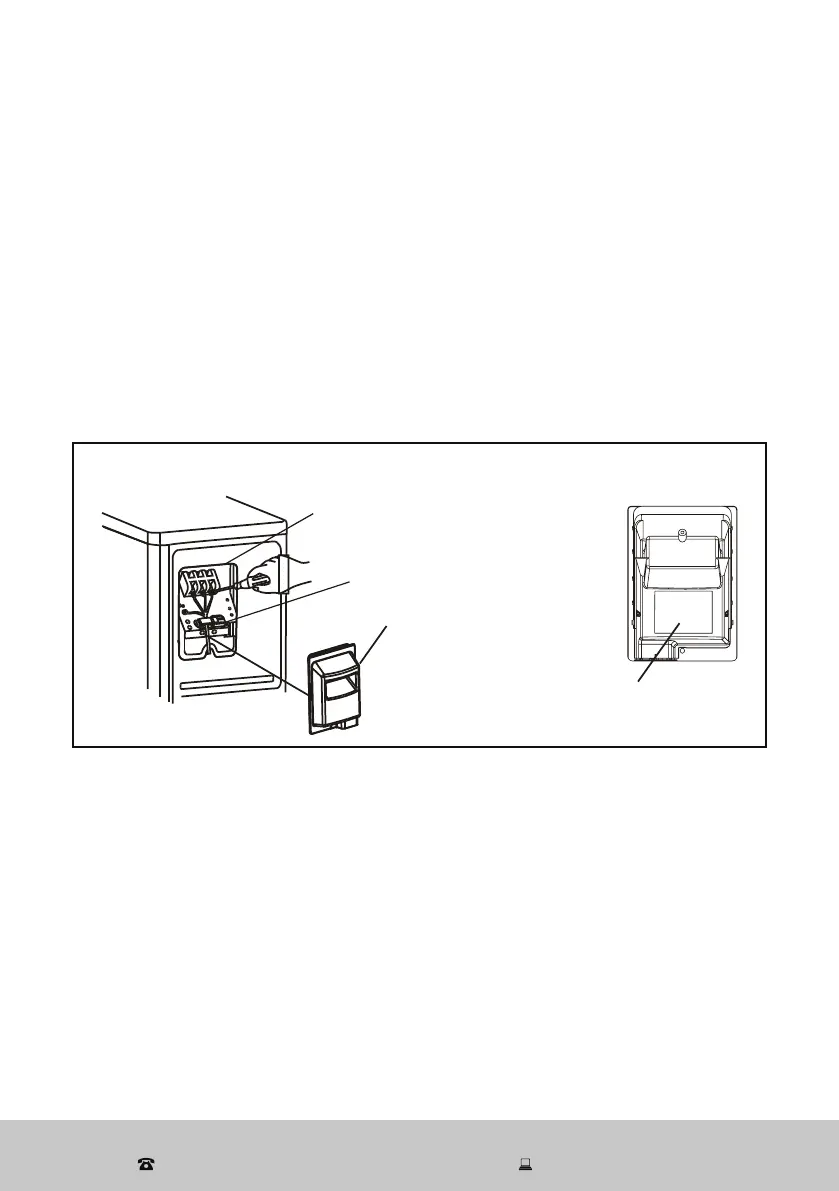

Cable clamp
Wiring cover
Wiring diagram
Fig. 19
