Europlex Verifier 24 - Powering Devices; Connecting Zones (Inputs)

NOTE: If an Output Device is located
away from the panel, it should
be powered from a separate
Power Supply Unit with 0V of
the PSU connected to 0V of
the panel.

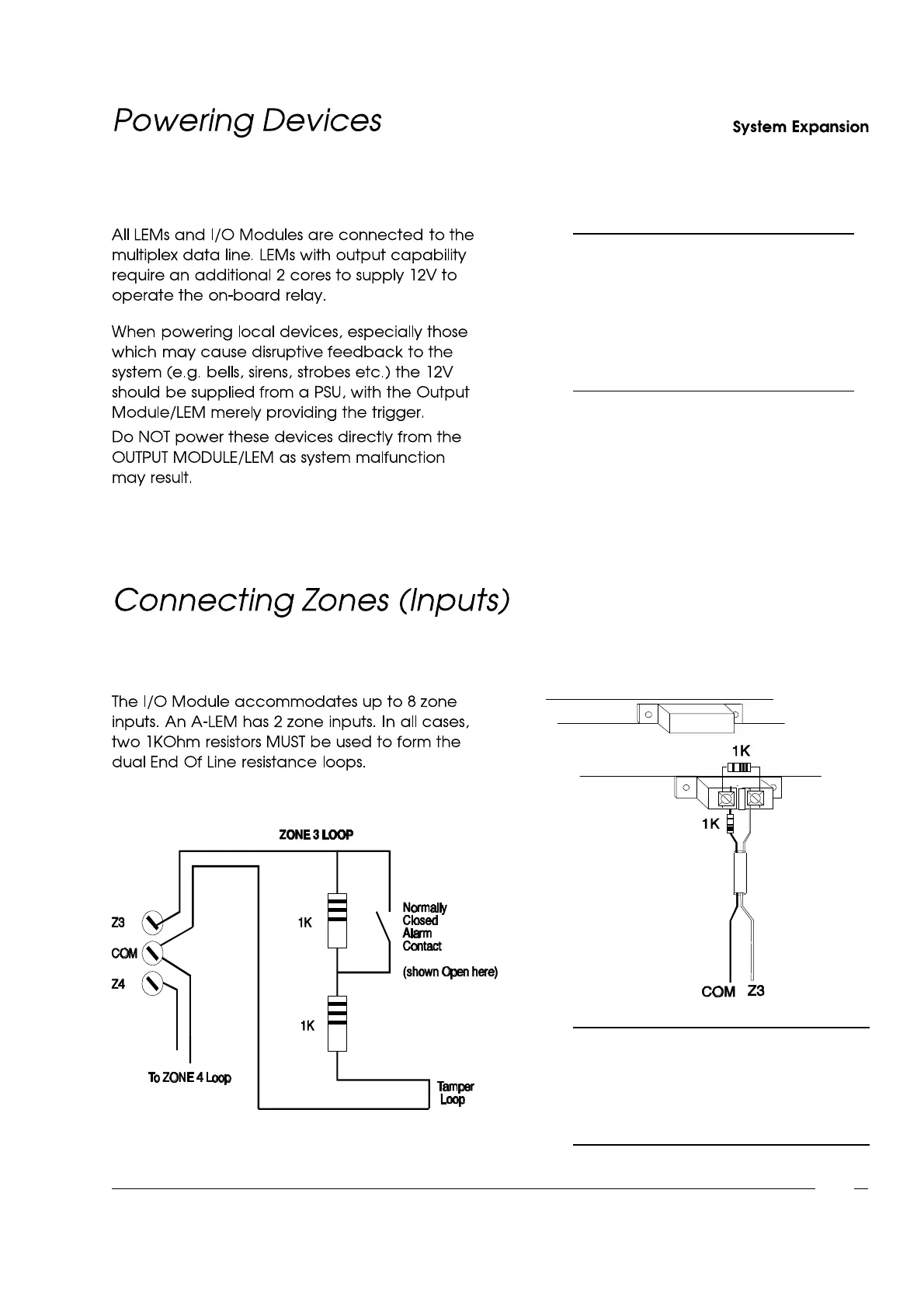

Fig. 12 - ConnectingZones
NOTE: After adding zones to the
system,the engineer must select
"RESET PANEL" from the
"Utilities"menu (p.3-10)so that
the system recognises the zones.
