Europlex Verifier 24 - A-LEM; C-LEM Coding Zones;Outputs

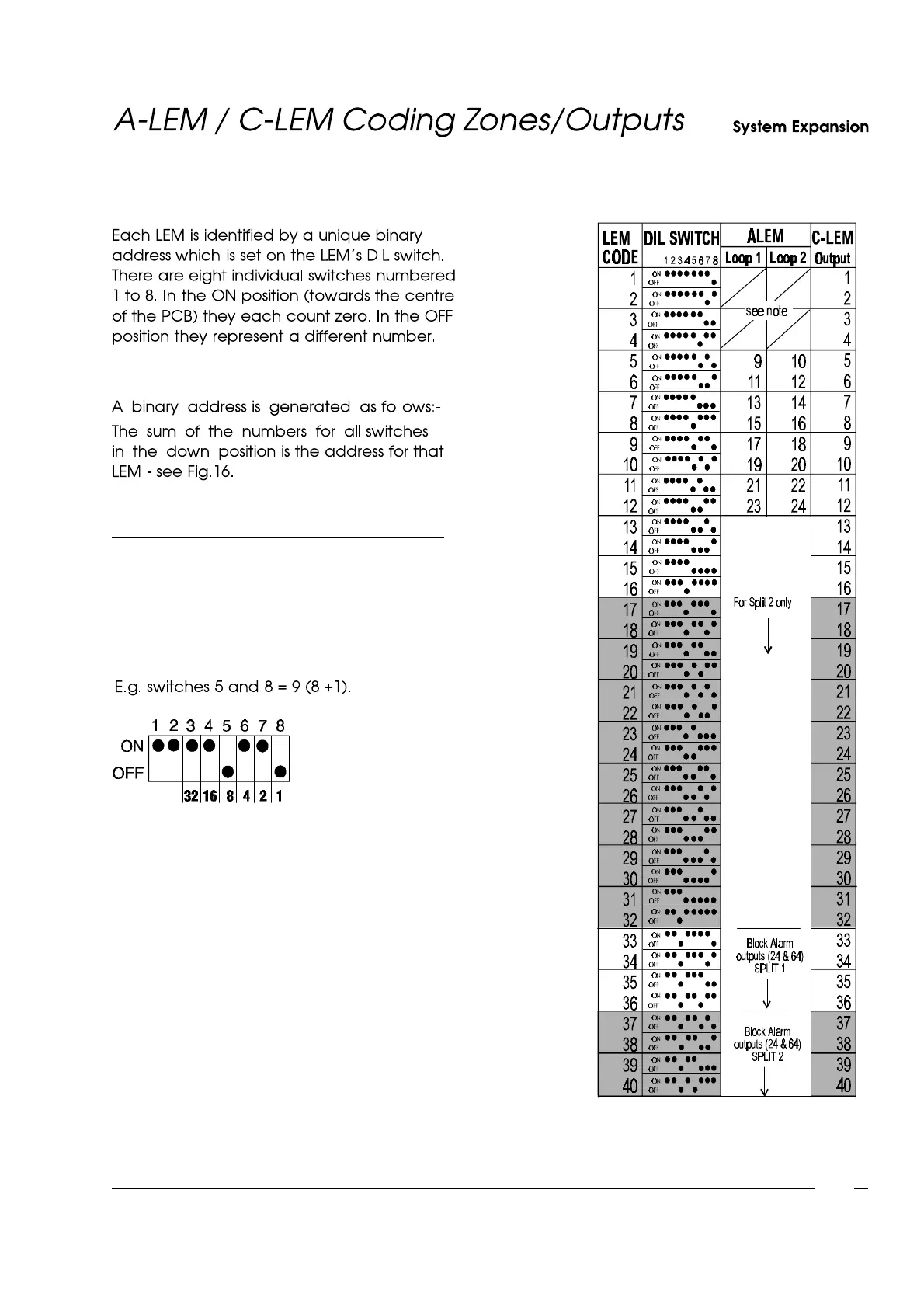

Fig. 17 - LEM Coding Table
Fig. 16 - Binary AddressDIL Switch
NOTE: Zones 1 to 8 are on-board and must
NOT be duplicated on the multiplex
data line via LEMs or I/O Modules.
Duplicated zones will not be
recognisedby the system.
