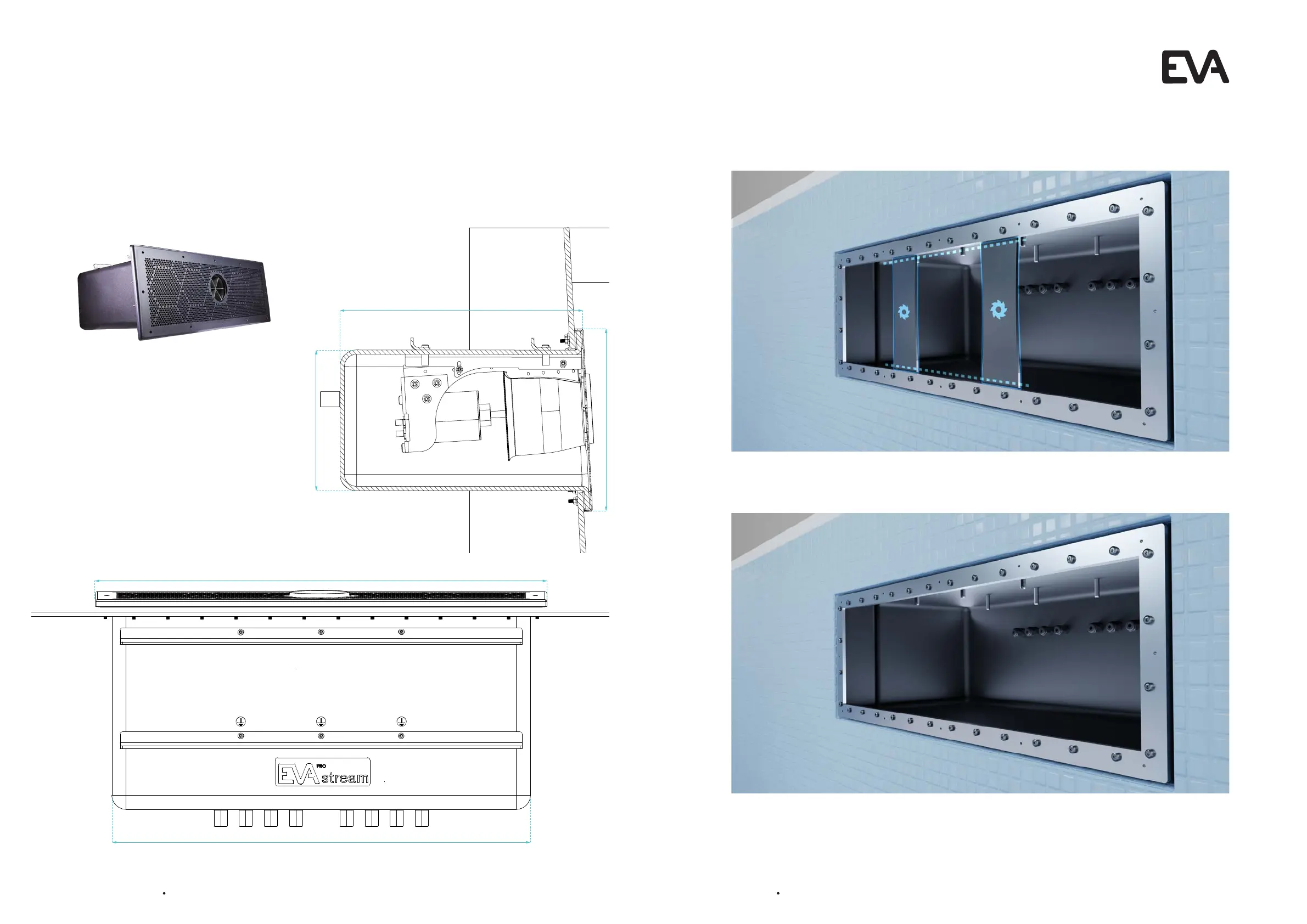

EVAstream Mounting - Installation EVAstream Mounting - Installationwww.evaoptic.com16 17
side view
top view
2. EVAstream installation niche POLY
l Mounting depth: 250 mm below water level (centre of the turbine).
l Mount the EVAstream horizontally in the middle of the poolwall.
l See 5.5 (page 17) for mounting the turbine.
885mm
449mm
254mm
1. Remove the ribs with a saw suitable for plastic
Use a saw suitable for plastic and saw off the ribs according to the blue dotted line.
2. Empty installation niche
The installation niche is now completely empty and ready for mounting the turbine.
5.5 Remove the ribs
Stainless steel: 336mm
ABS: 341mm
Stainless steel: 956mm
ABS: 962mm
