EVAstream Mounting - Installation EVAstream Mounting - Installationwww.evaoptic.com14 15

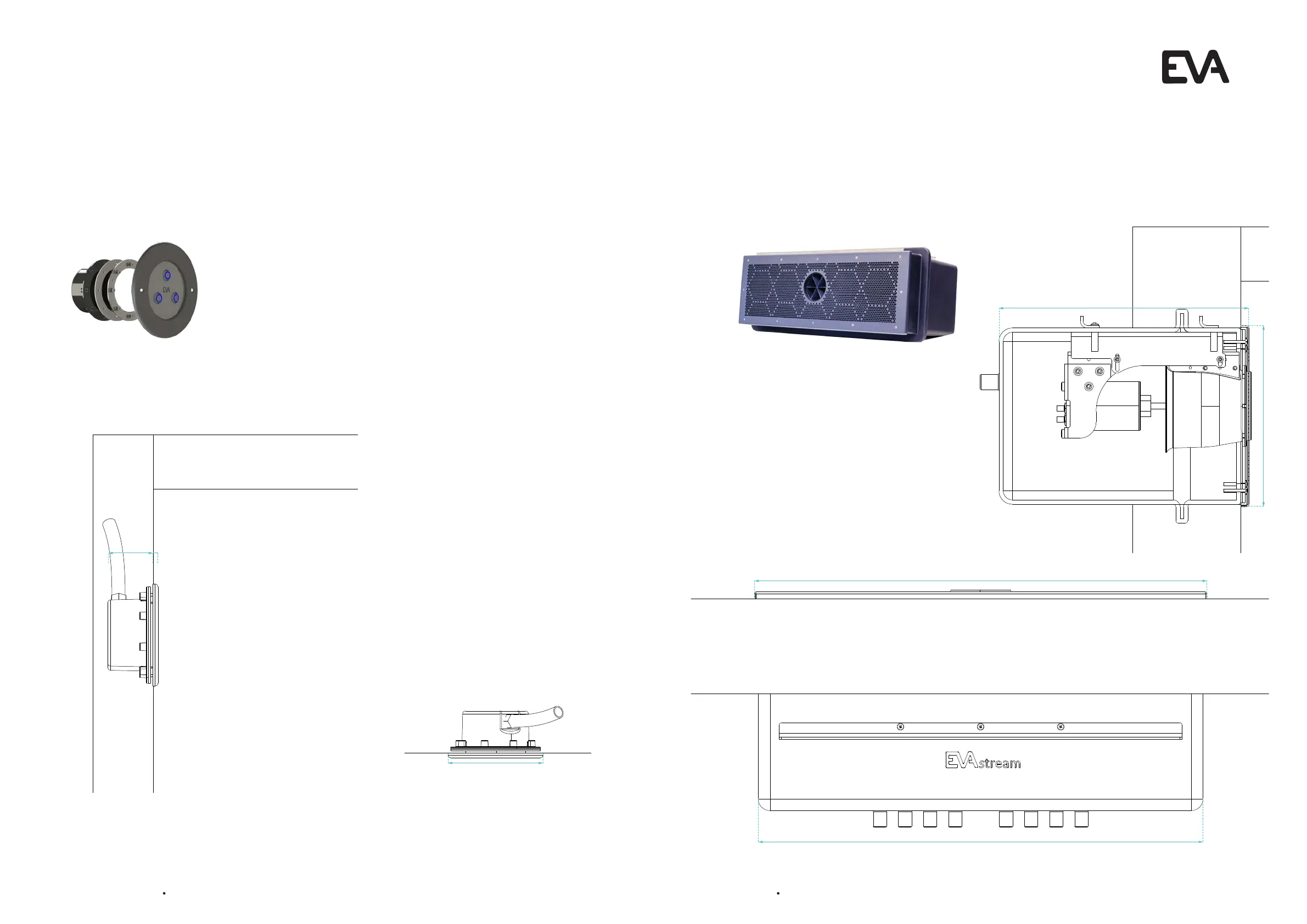

5.3 Mounting the EVApiezo
EVA Piezo mounted on an installation niche
l Mount the EVA Piezo in a place in the pool where you can use it easily
side view top view
Ø186mm
74mm 11mm
5.4 Mounting the EVAstream recessed mounted
1. EVAstream installation niche PP
l Mounting depth: 250 mm below water level (centre of the turbine).
l Mount the EVAstream horizontally on in the middle of the poolwall.
l See 5.5 (page 17) for mounting the turbine.
side view
top view
Stainless steel: 956mm
ABS: 962mm
Stainless steel: 467mm
ABS: 472mm
Stainless steel: 336mm
ABS: 341mm
952mm
