EVAstream Mounting - Installation EVAstream Mounting - Installationwww.evaoptic.com18 19

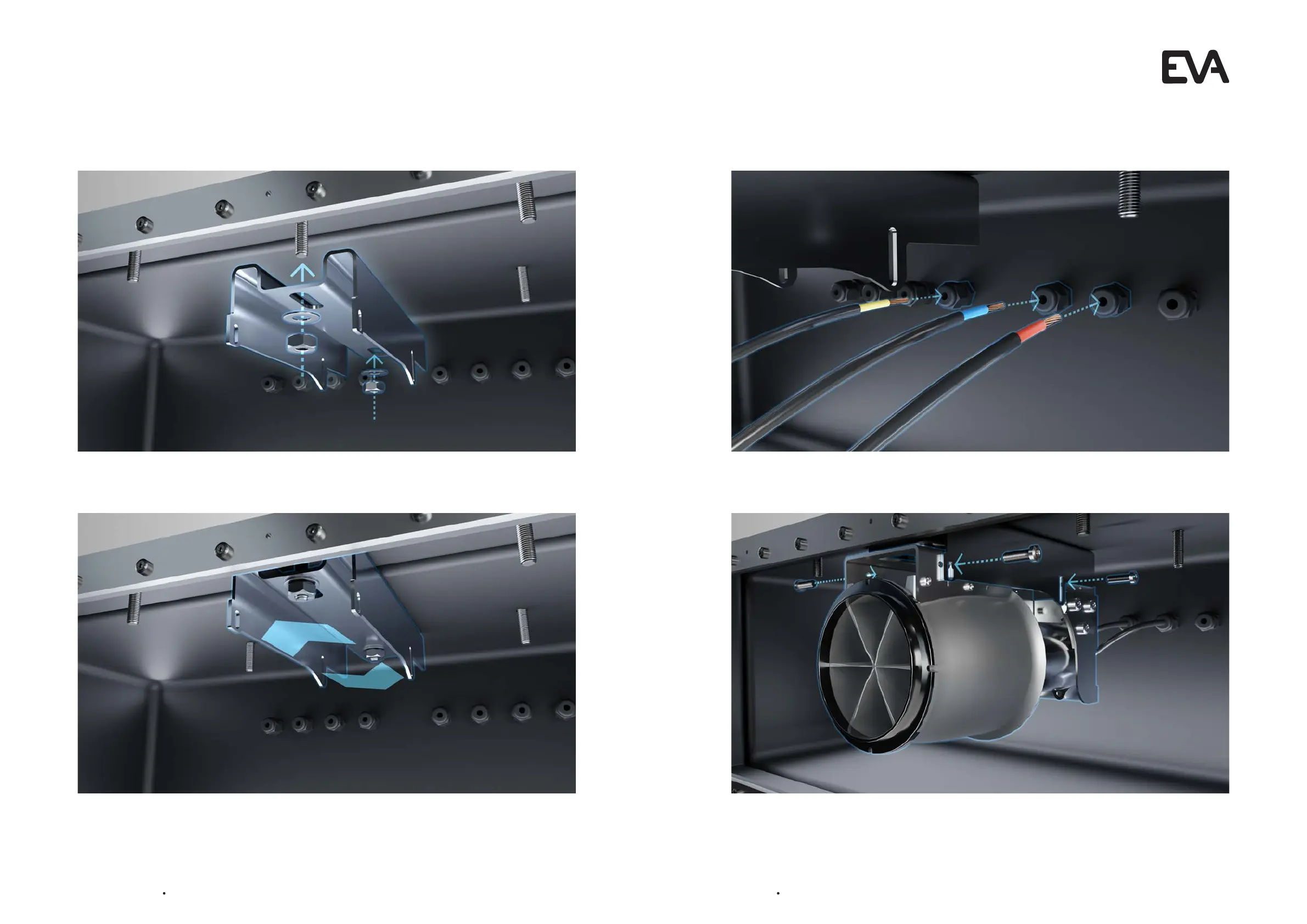

1. Mount the bracket in the niche
Use the washers and M12 nuts.
2. The bracket is still adjustable
Make sure the bracket can be moved forwards and backwards.
5.6 Mounting the EVAstream turbine
3. Put the turbine cables through cable glands
Use red, orange and black cables. Do not change the colors of the cables!
4. Mount the turbine to the bracket
Use the M6x10 screws.
