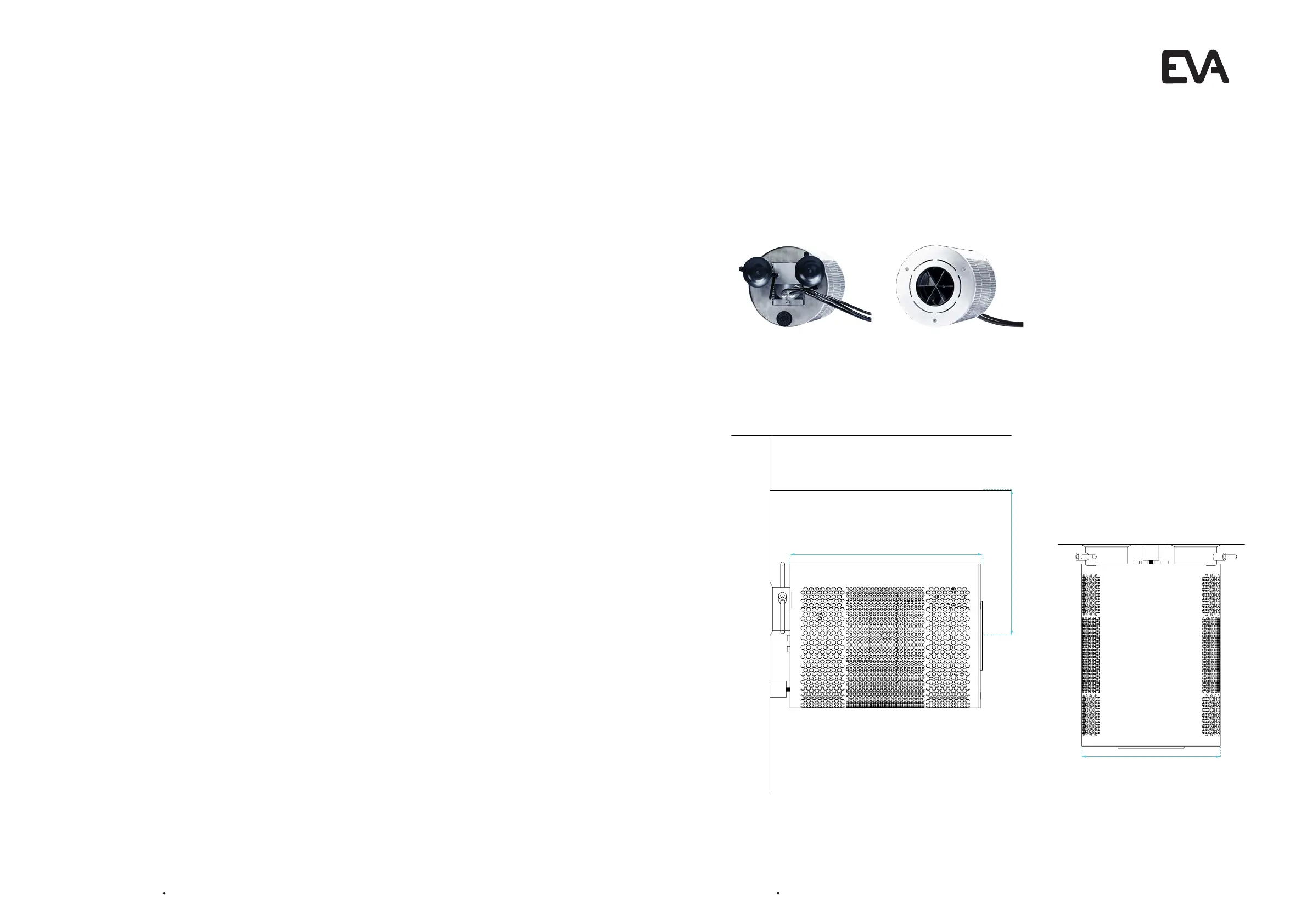

5.2 Mounting the EVAstream surface mounted
1. EVAstream mounted with powerful suction cups
l Mounting depth: 250 mm below water level.
l Mount the EVAstream horizontally on wall, in the middle of the poolwall.
l When the EVAstream is permanently mounted in the pool, it must be grounded.
side view top view
5.1 Use of mounting materials:
l Only use the accessories/bolts/screws/nuts that are supplied by EVAstream.
l Only use the original mounting accessories. Warranty expires irrevocably if other materials are
used.
l For safety reasons, it is not allowed to mount lights other than EVA Optic to the EVAstream motor
control unit.
l Make sure that the EVAstream cable (or any other cabling!) cannot be sucked in by the machine.
352mm
Ø265mm
250 mm below water level
