EVAstream Mounting - Installation EVAstream Mounting - Installationwww.evaoptic.com20 21

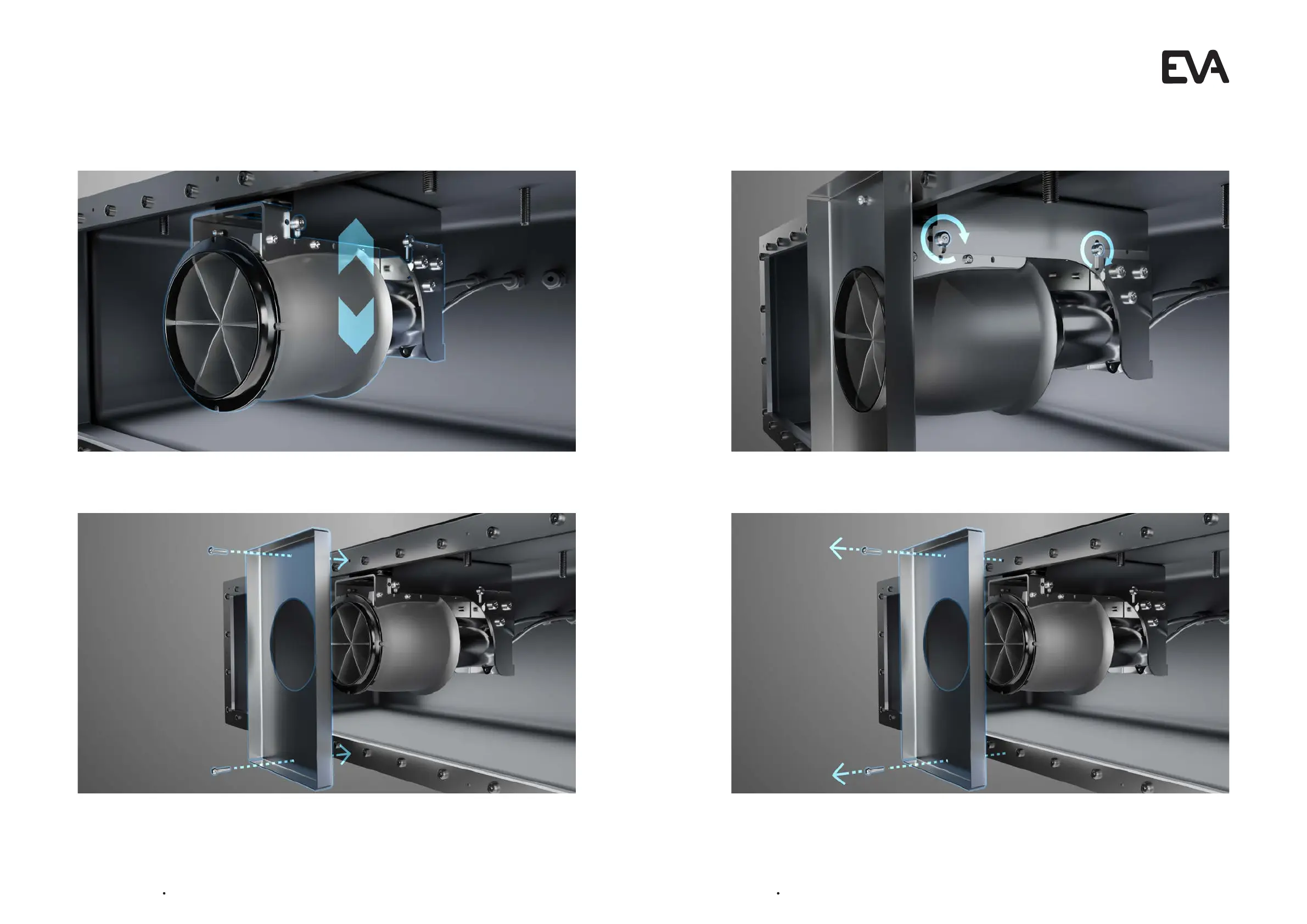

5. The turbine is still adjustable
Make sure the turbine can be moved up and down.
6. Mount the adjusting plate to the niche
To ensure the correct horizontal position of the turbine
7. Tighten the turbine to the bracket
The front of the turbine must be pressed against the adjustment plate to ensure the correct position. Secure
the turbine by tightening the screws.
8. Remove the adjustment plate
This was only used to ensure the correct horizontal position of the turbine
