EVAstream Mounting - Installation EVAstream Mounting - Installationwww.evaoptic.com22 23

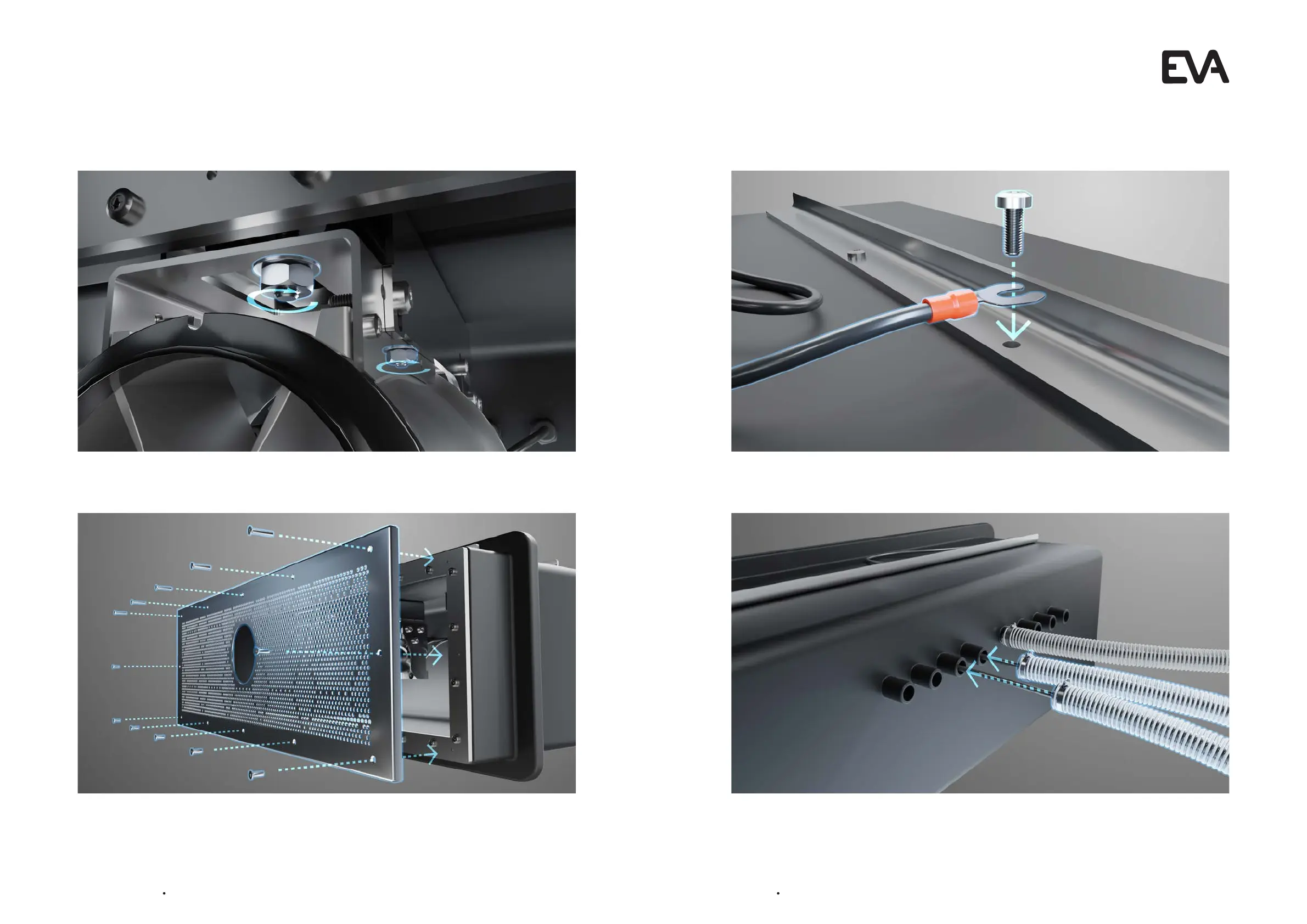

9. Tighten the bracket to the niche
Secure the bracket to the niche by tightening the nuts. The turbine is now set to the correct base height and
completely fixed mounted.
10. Mount the frontplate to the niche
Use the M5x12 screws with a stainless steel frontplate.
Use the M5x16 screws with an ABS frontplate.
11. Ground the installation niche
The installation niche needs to be grounded on the top of the niche.
12. Mount the conduit pipes
The cables need to be placed in separate conduit pipes.
