EVAPCO ATC-E - LSCE & LSWA 1,2 M Wide Units

41
Operation and Maintenance Instructions

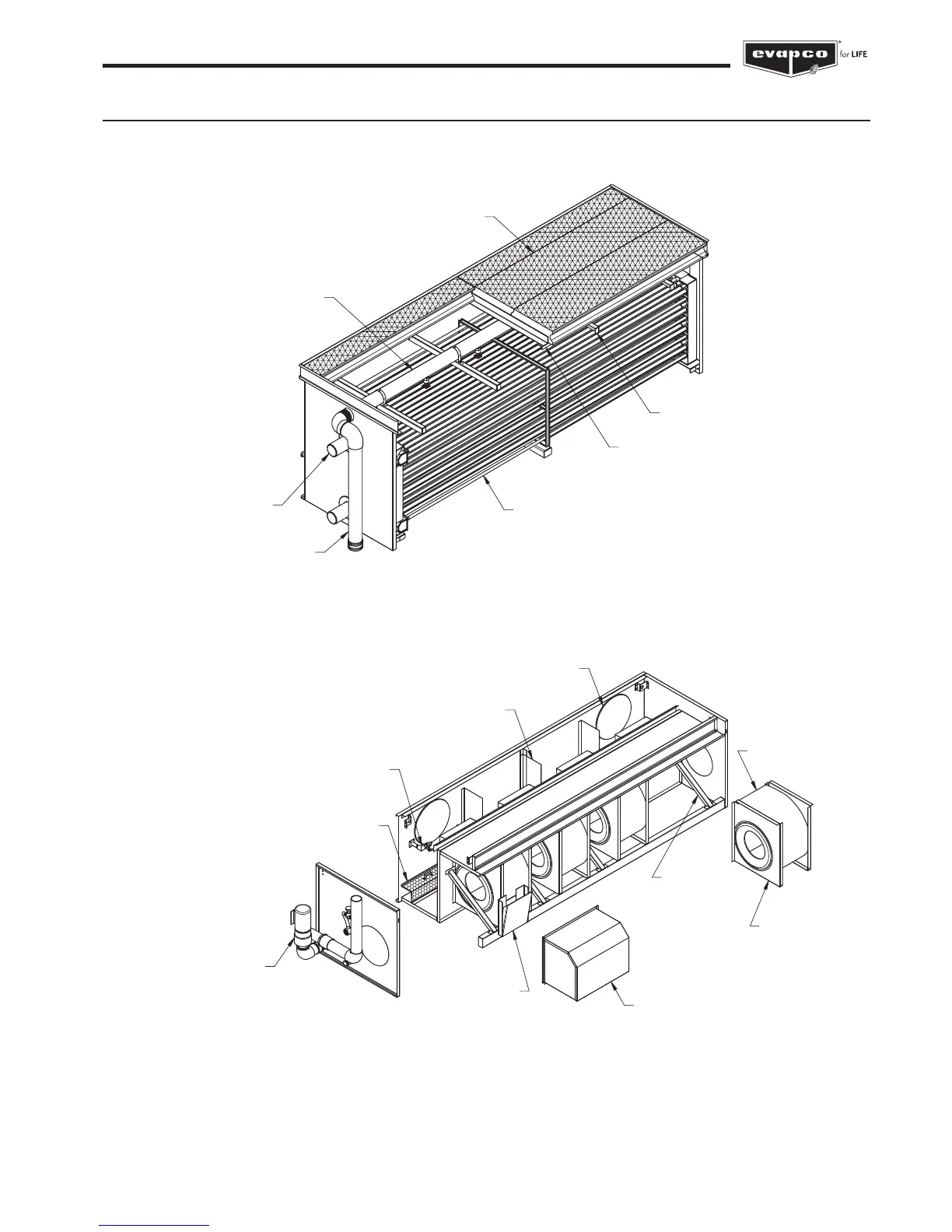

COIL CASING SECTION
LSCE & LSWA 1,2 m Wide Units
PUMP RISER PIPING
COIL CONNECTIONS
WATER DISTRIBUTION
SPRAY BRANCH
DRIFT ELIMINATORS
COIL
DRIFT ELIMINATOR
SUPPORT
WATER DISTRIBUTION
SPRAY BRANCH SUPPORT
WRAPPER
FAN HOUSING
BEARING
SUPPORT
MOTOR COVER
MOTOR BASE
RECIRCULATOR PUMP/
MOTOR ASSEMBLY
MIGRATION
BAFFLE
ACCESS
DOOR
MAKE-UP VALVE WITH
ADJUSTABLE FLOAT
SUCTION STRAINER
PAN SECTION
