EVAPCO ATC-E - LRC;LRW 1 M Wide Units

44
Operation and Maintenance Instructions
LRC / LRW 1 m Wide Units

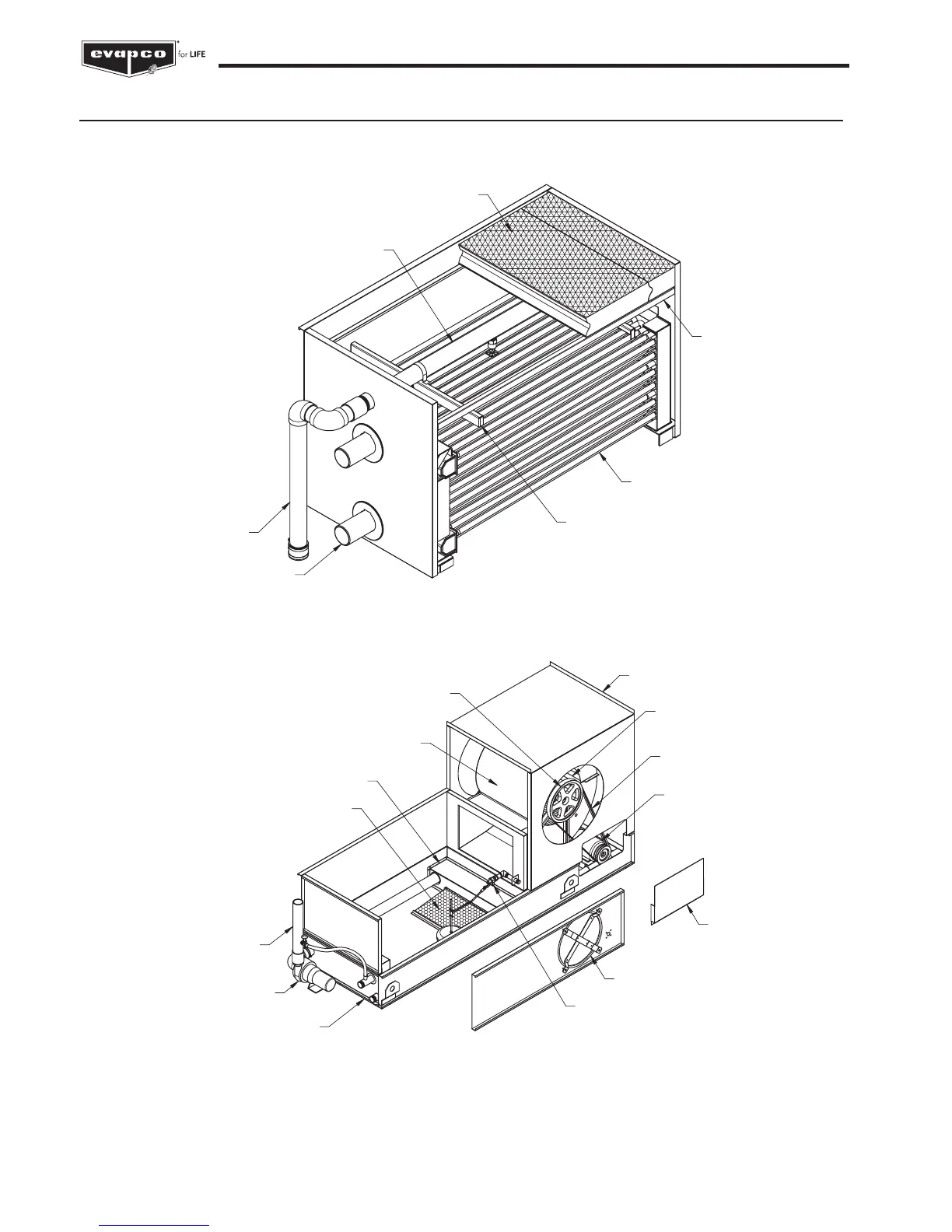

COIL CASING SECTION
DRIFT ELIMINATORS
WATER DISTRIBUTION
SPRAY BRANCH
PUMP RISER PIPING
COIL CONNECTIONS
COIL
WATER DISTRIBUTION
SPRAY BRANCH SUPPORT
DRIFT ELIMINATOR
SUPPORT
FAN HOUSING
FAN BELT
MOTOR
ACCESS DOOR
TEFC FAN MOTOR
FAN WRAPPER
FAN SHEAVE
FAN WHEEL
SUCTION HOOD
SUCTION STRAINER
PUMP RISER PIPING
RECIRCULATOR PUMP/
MOTOR ASSEMBLY
COLD WATER BASIN
MAKE-UP VALVE
WITH ADJUSTABLE FLOAT
ACCESS DOOR
PAN SECTION
