EVAPCO ATC-E - ATC-E;Atwb;Eco-ATC-A;Eco-ATWB 7 Wide Units

36

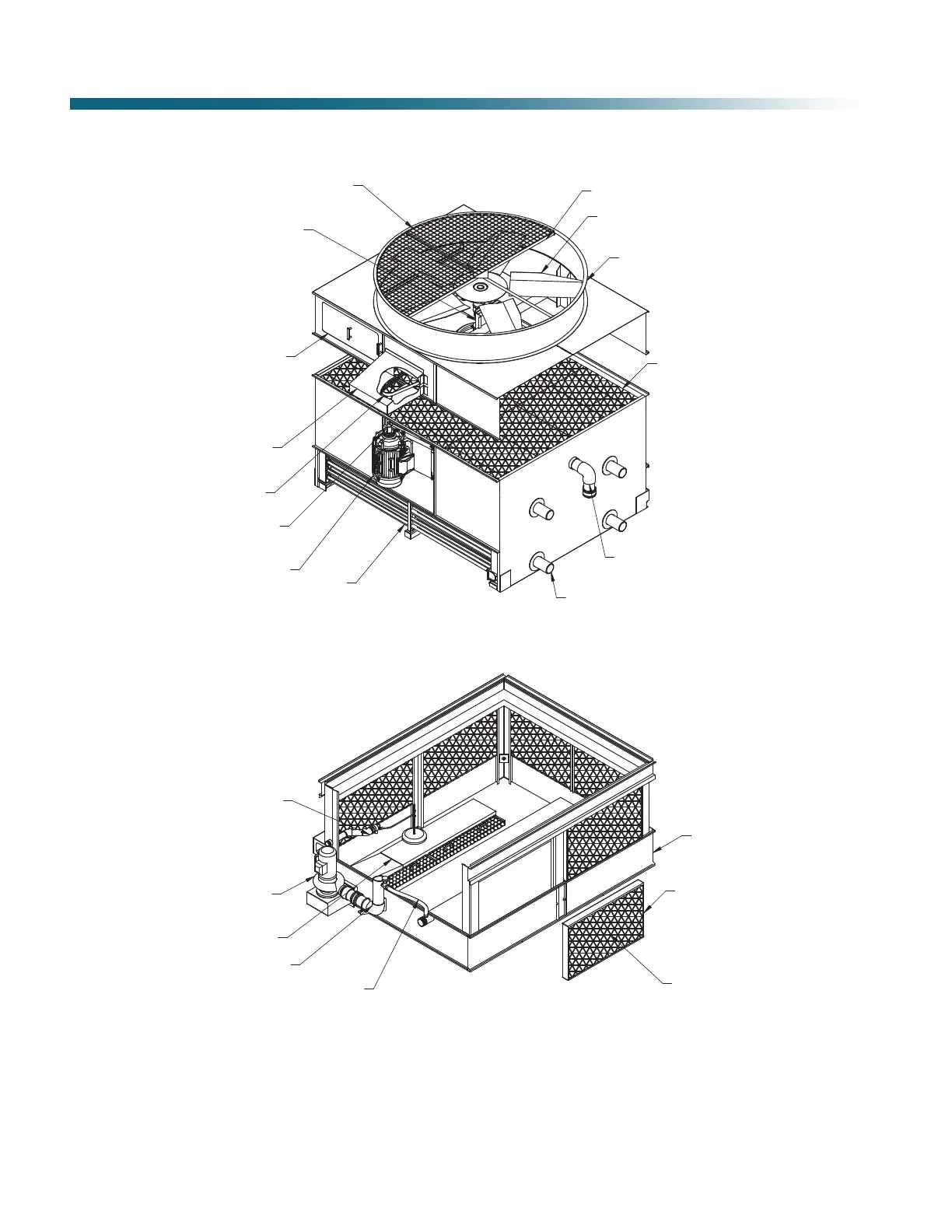

COIL CONNECTIONS
PUMP RISER PIPING
F
AN SCREEN SUPPORT
FAN
FAN CYLINDER
FAN SCREEN
B
EARING SUPPORT
ACCESS DOOR
SWING OUT
MOTOR COVER
FAN BELT
FAN MOTOR SHEAVE
TEFC FAN MOTOR
DRIFT ELIMINATORS
COIL
RECIRCULATING PUMP/
MOTOR ASSEMBLY
MAKE-UP VALVE
WITH ADJUSTABLE FLOAT
COLD WATER BASIN
AIR INLET LOUVER MEDIA
BLEED LINE AND VALVE
PUMP RISER PIPING
SUCTION HOOD & STRAINER
FRAMED AIR
INLET LOUVER
FAN & COIL CASING SECTION
PAN SECTION
ATC-E/ATWB/eco-ATC-A/eco-ATWB 7’ Wide Units
