EVBox Wall box Series - Components & Features; Operating System and Usage; Physical Components and Classification

8

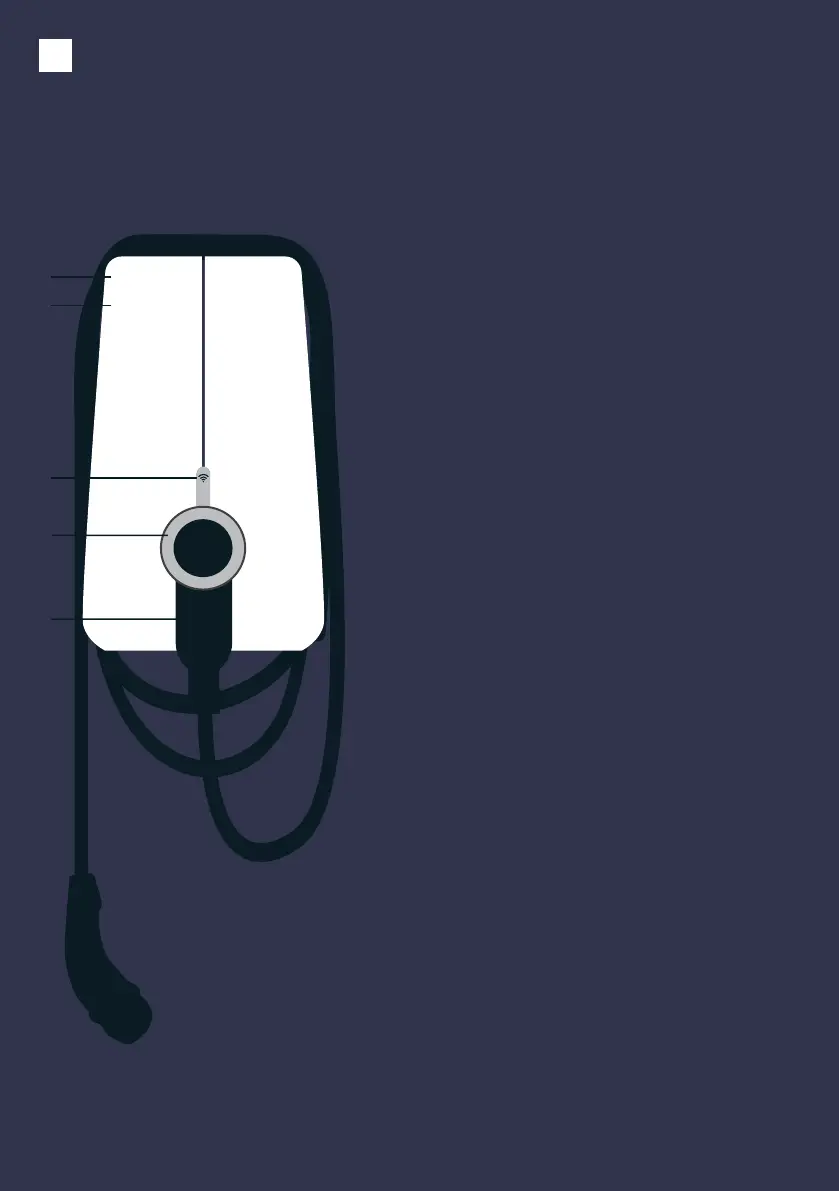

Components & features
Charging cable
The charging cable is compat-
ible with all types of electric
vehicles with type 2 charging
plug that can handle capaci-
ties for 7.4 kW or 11 kW.
Card/key fob reader
This is the area where you
scan your charge card or
key fob for WALL BOX with
activated RFID card/keyfob
or SMART wall boxes. The
wall box reads the data from
your card to start or stop a
charging session.
Operating system
Start and stop your
charging session ac-
cording to your wall box
model:
WALL BOX:
Plug your charging
cable into the car to start
charging.
WALL BOX with activated
RFID card/ keyfob:
Plug your charging cable
into the car and hold your
RFID card/key fob in front
of RFID reader to start
charging.
SMART WALL BOX:
Equipped with Wi-Fi,
UMTS and kWh meter.
Plug your charging cable
into the car and hold your
RFID card/key fob in front
of RFID reader to start
charging and track your
sessions online.
2
3
4
5
Housing
The wall box consists of a
wall dock, a wall box and a
charging cable.
The wall box is designed with
rugged, high-impact strength
plastics that make its housing
durable, robust, weather-resis-
tant and wear-resistant.
LED indicator.
This smart status indicator
helps you understand what
the wall box is doing at all
times.
EN
Product Classication
• EV Supply Equipment connected to AC supply network
• Electric connection method: permanently connected
• AC EV Supply Equipment
• Outdoor use
• Equipment for locations with non-restricted access
• Stationary equipment, mounted on walls, poles or equiva-
lent means: surface mounted
• Class I Equipment
• Mode 3 EVSE
• Operating temperature range: -25°C to 45°C
• Enclosure ratings: IP55, IK10
5
4
3
2
1
Part number: 9835662780
