3 MEASUREMENTS AND INSTALLATION
3.1 Measurements and installation of EV3 MVC

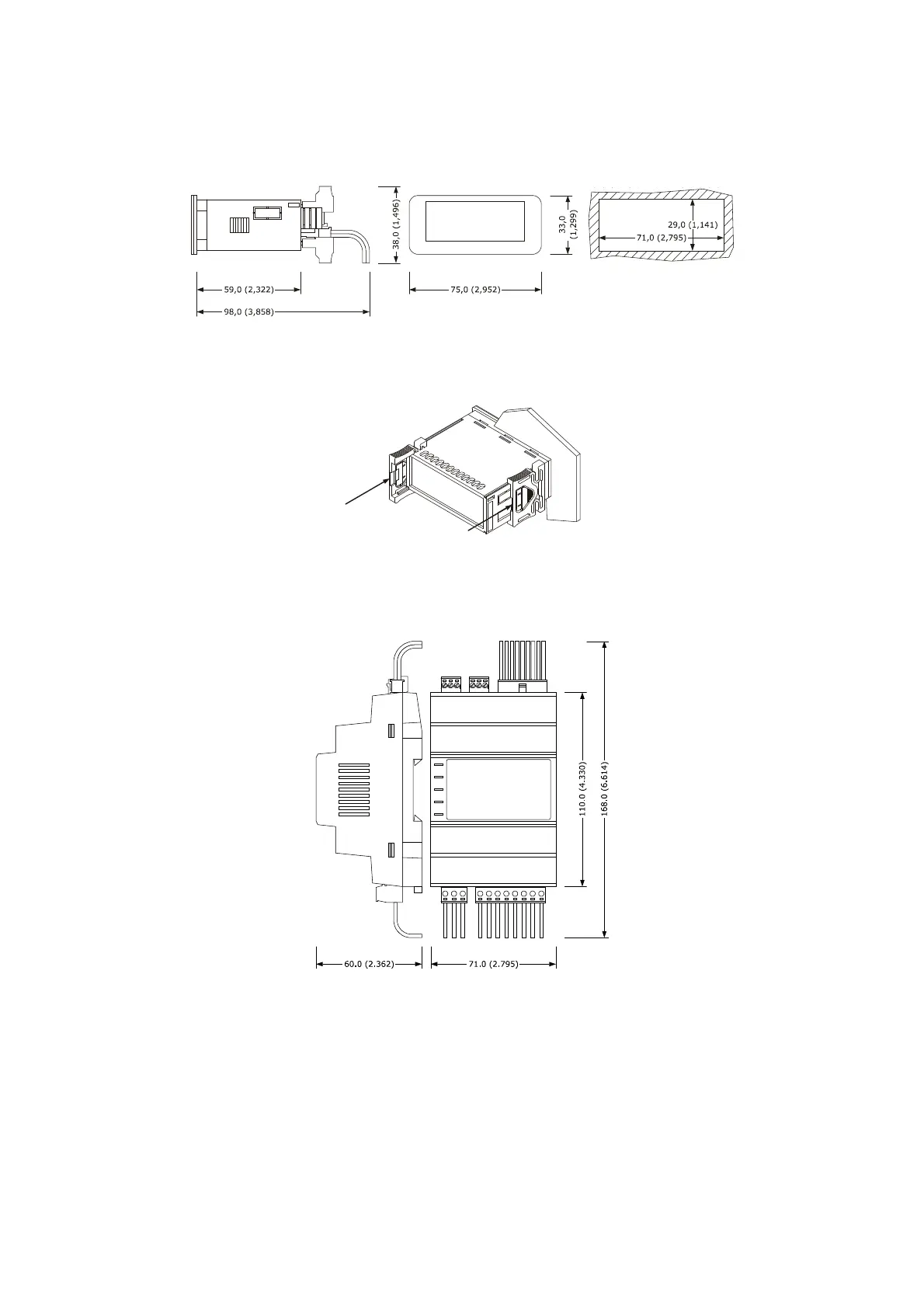

The pictures below show the measurements of EV3 MVC; measurements are expressed in mm (inches).
To be installed on a panel with the snap-in brackets provided.
The thickness of the panel on which EV3 MVC is to be installed must be between 0.8 and 2.0 mm (0.031 and 0.078 in).
3.2 Measurements and installation of EVD MVC
The picture below shows the measurements of EVD MVC (4 DIN modules); measurements are expressed in mm (inches).
Installation is on a DIN rail 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0 mm (1.377 x 0.590 in), in a control panel.
