EVCO S.p.A. EV3 MVC & EVD MVC | Application manual ver. 2.2c | Code 1443DMVCI224
page 12 of 74

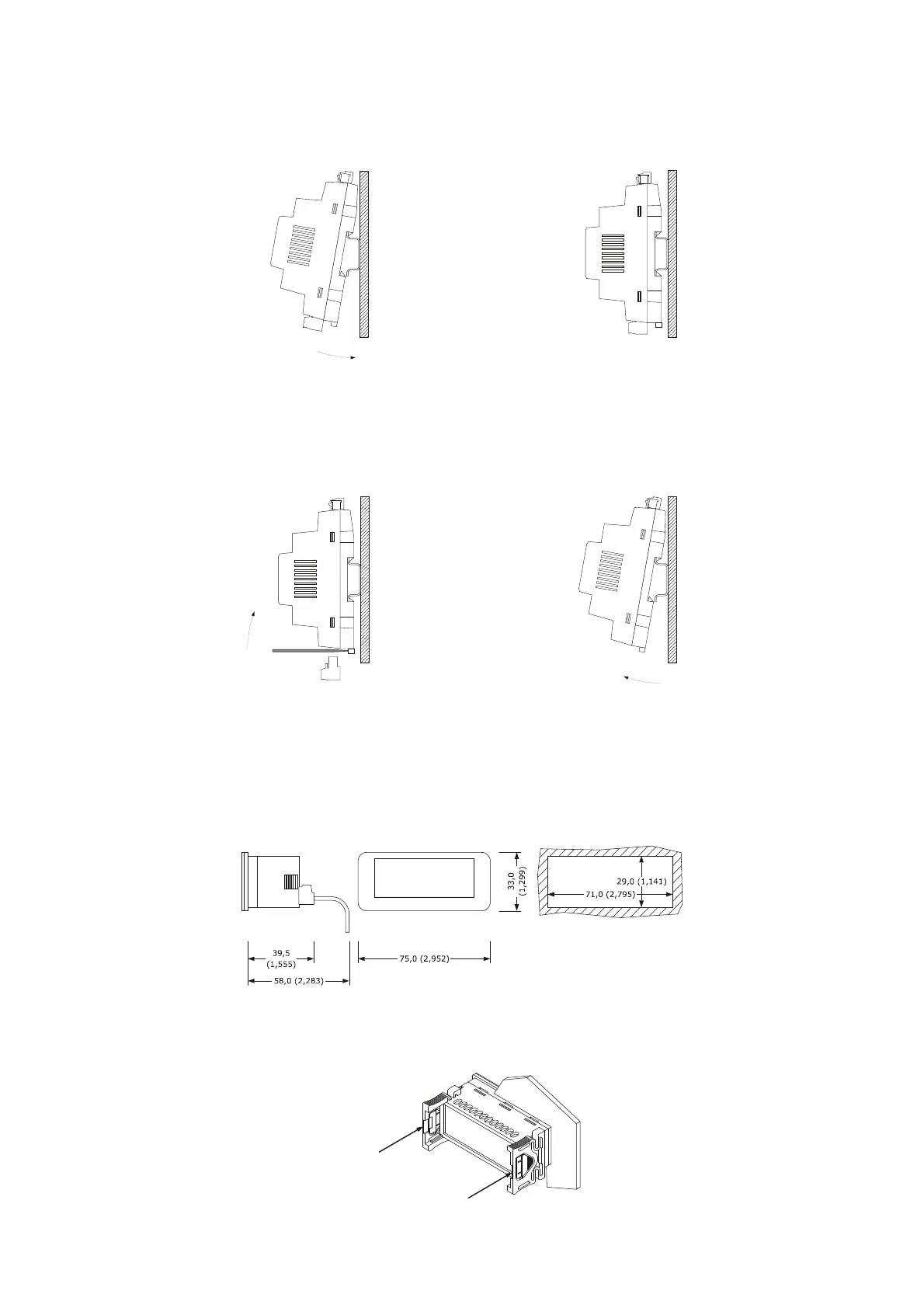

The pictures below show how to install the EVD MVC.
1 2
To remove the EVD MVC, first remove any plug-in screw terminal blocks fitted in the lower part, then, using a screwdriver, loosen the
DIN rail clip, as shown in the pictures below.
3 4
To re-install the EVD first press the DIN rail clip fully in.
3.3 Measurements and installation of EV3K11
The pictures below show the measurements of EV3K11; measurements are expressed in mm (inches).
To be installed on a panel with the snap-in brackets provided.
The thickness of the panel on which the EV3K11 is to be installed must be between 0.8 and 2.0 mm (0.031 and 0.078 in).
