EVCO S.p.A.
EV3 MVC & EVD MVC | Application manual ver. 2.2c | Code 1443DMVCI224
page 31 of 74
Connector 2
Part Description
6 unused
7 unused
8 unused
9 INTRABUS port signal
10 INTRABUS port reference (GND)

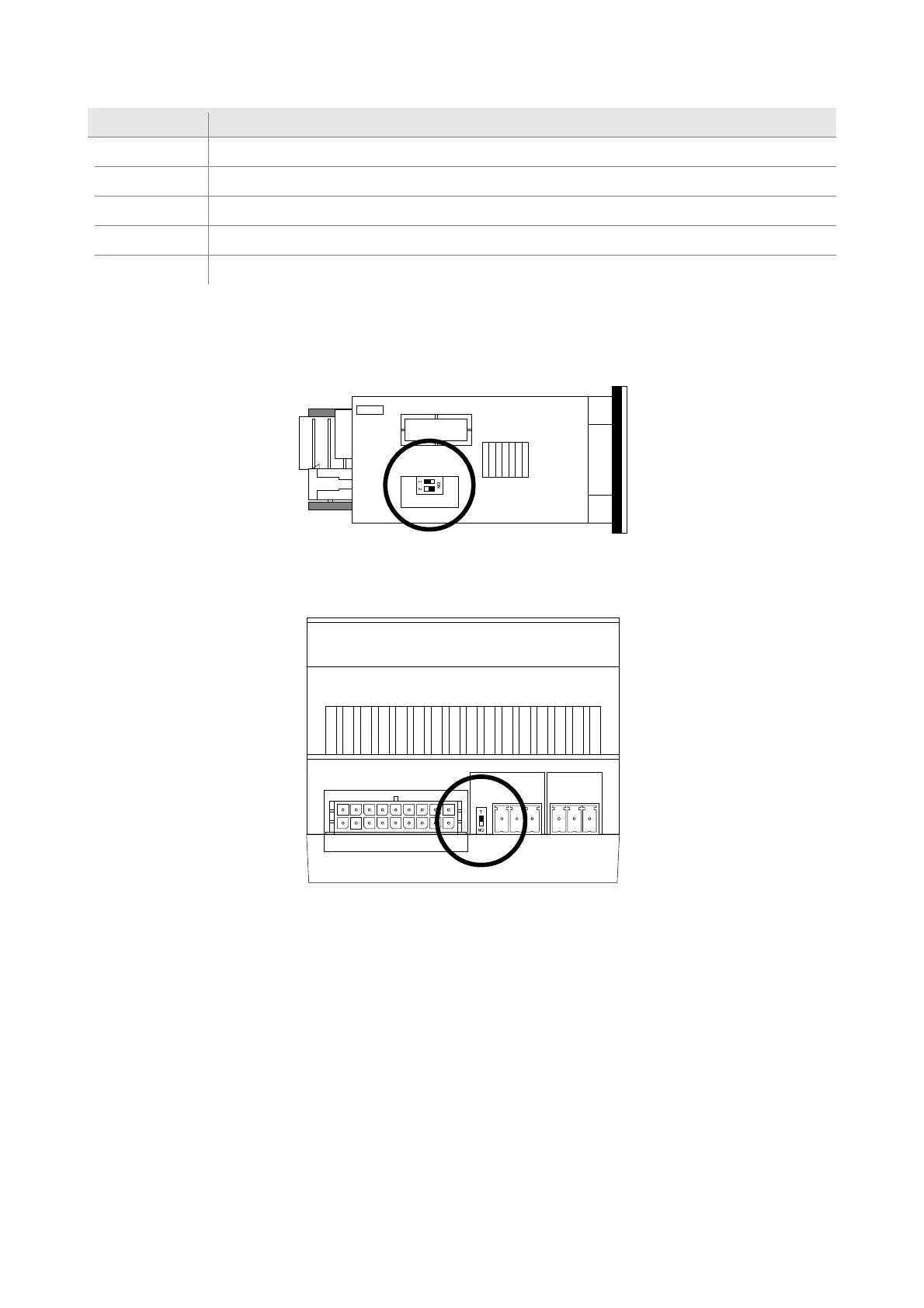

5.6 Termination resistor for the RS-485 MODBUS line
To terminate the RS-485 MODBUS line of the EV3 MVC, place micro-switch 1 in position ON. Do not touch micro-switch 2.
To terminate the RS-485 line of the EVD MVC, place micro-switch 1 in position ON.
