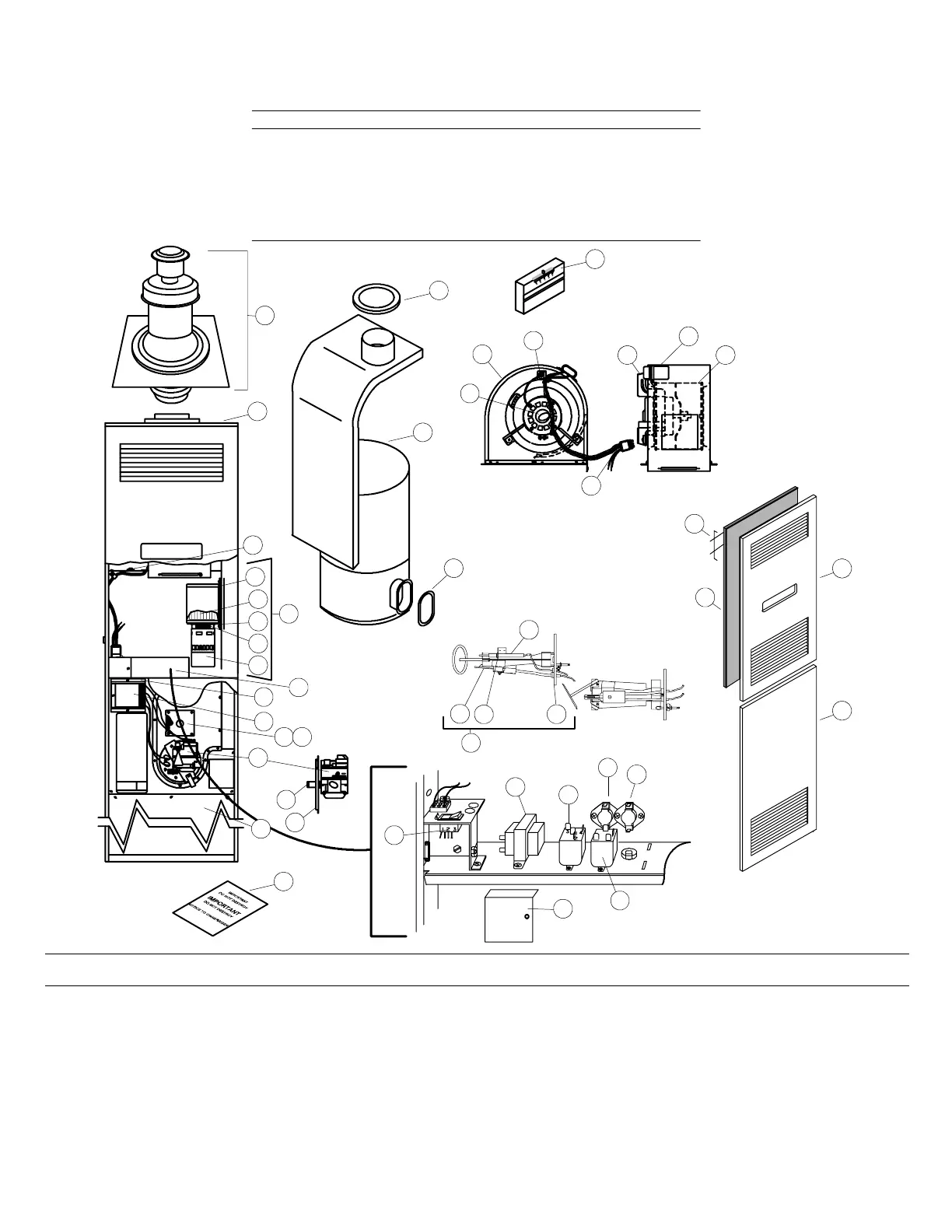

REPAIR PARTS LIST
HSI Gas DownFlow Furnace — DGAM, DGAT, DLAS Series
Model No. Factory Equipped for use with: Input/BTUH
DGAM056BDC NATURAL GAS 56,000
DGAM075BDC NATURAL GAS 75,000
DGAT056BDC NATURAL GAS 56,000
DGAT070BDC NATURAL GAS 70,000
DGAT075BDC NATURAL GAS 75,000
DLAS056BDC PROPANE 56,000
DLAS075BDC
PROPANE 75,000
26
28
29
25
24
19
20
1
36
35
37
38
22
5
27
21
21
40
44
3
4
6
7
8
9
11
12
13 14
2
15
4543
42
41
39
32
33
31
34
16
17
18
10
23
1
3
5
4
30
CODE
USED ON
MODEL
NO.
REQ.
PART
NUMBER
DESCRIPTION VENDOR
__ All X 8B2461 Enamel (Spray 15 oz. Almond)
1 All 1 4000 Series Roof Jack (See Furnace Wiring Diagram)
2 All 1 7945A5721 Casing Top
3 All 1 7624A3591 Limit Switch (Upper)
(O-180˚ Manual Reset)
TI #20615L5-A29
TOD #60T14 (205732)
4 All 1 7995-6451 Booster Assembly (Includes Code 5 - 9)
5 All 1 7995A386 Booster Gasket
6 All 1 8865-3611 Impellor (3
13
/
16
x1
7
/
8
x
3
/
8
) Torr. #AA326-128
7 All 1 8865A1471 Mount Plate (Booster Motor)
8 All 1 8865B1281 M o tor Mount (Rubber 4/Pkg.)
