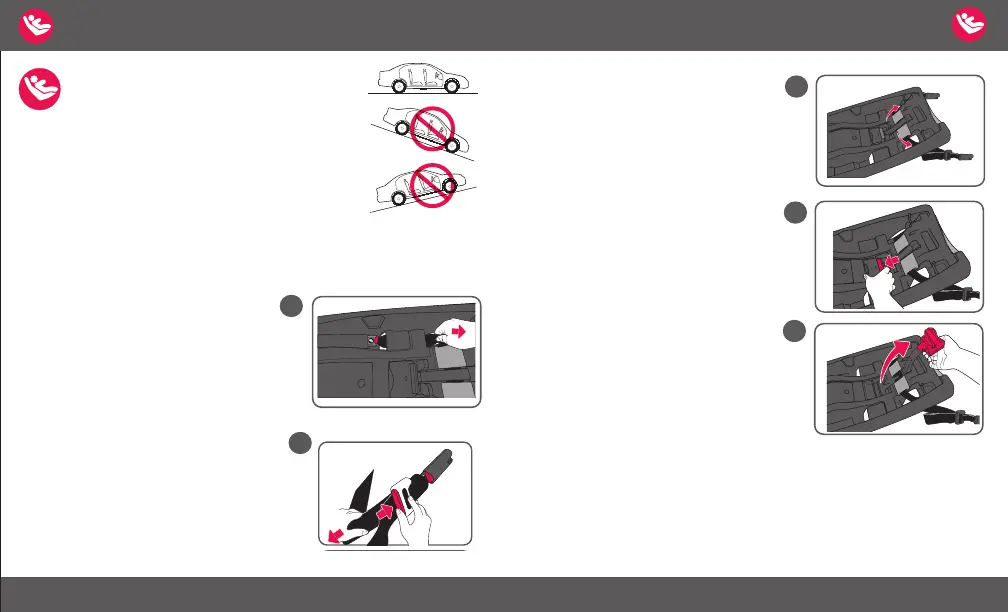

Installing the Base with the Lower Anchor
Connector Assembly (cont.)
Installing the Base with the Lower Anchor
Connector Assembly (cont.)
Route the LATCH belt
through the belt path
openings on both sides of
base. Make sure not to twist
the belt and make sure it lies
flat.
Squeeze the button on the
Fit-loc belt tightener and lift
it up as shown.
BEFORE installing base, make
sure vehicle is on level ground.
Place base on an approved
LATCH vehicle seating location.
4
5
1
BEFORE installing the base, if you are
using the load leg, you will need to
unfold the leg, install the base, then
extend the load leg. Please follow
steps on pages 40-43.
Remove LATCH straps
from LATCH storage
pockets by pulling the
strap out as shown.
Extend the strap to its
longest length.
2
3
