Installing the Base with the Lower Anchor
Connector Assembly (cont.)
Installing the Base with the Lower Anchor
Connector Assembly (cont.)

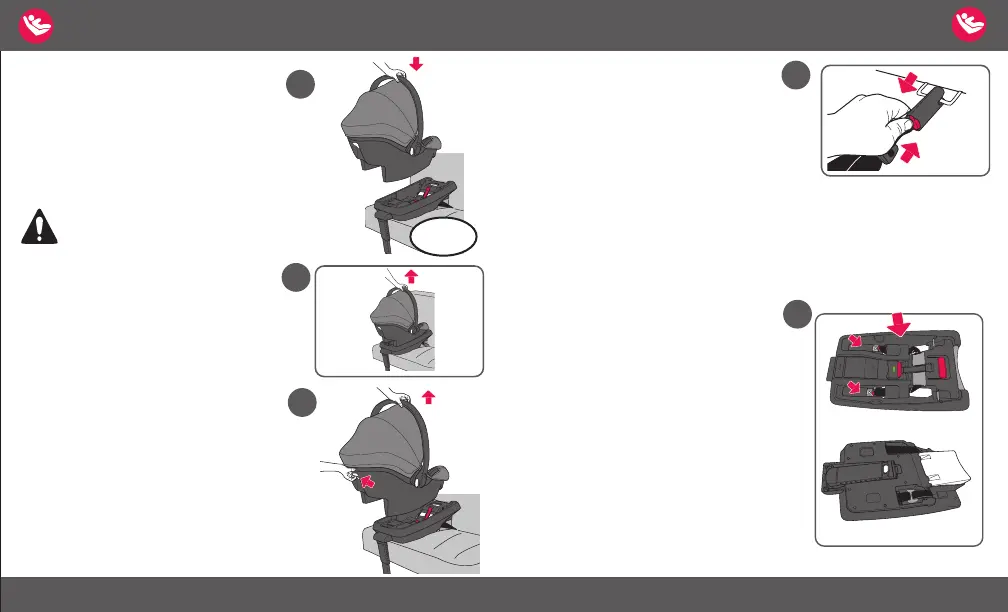

Attach the carrier into the
base until you hear a click.
Finish the load leg
adjustment from pages
38-41.
ALWAYS Lift up on the
handle of the carrier
to make sure that it is
securely attached in the
base.
To remove the carrier
from the base, squeeze
the white release handle at
the back of the carrier. Lift
carrier away from the base.
CLICK!
To remove base, open the
Fit-loc belt tightener, then
push button on LATCH
connector then unhook from the
anchor point.
You may need to loosen
the tension on the LATCH
connector by loosening the
LATCH adjustment strap.
Repeat steps as shown on the
other side of the base.
Pass LATCH strap UNDER the
base through the openings
and push connectors into the
LATCH storage pockets as
shown. When storing, place the
LATCH strap underneath the
LATCH storage tab (p 93). To
do so, open Fit-loc belt tightener
and slide LATCH strap under
tab. When storing, NEVER allow
strap to lie on top of the base
area as it might interfere with
the carrier latching onto the
carrier attachment bars.
14
15
LATCH strap MUST
pass UNDER the base
16
12
13
Underside of base
To Next Page
