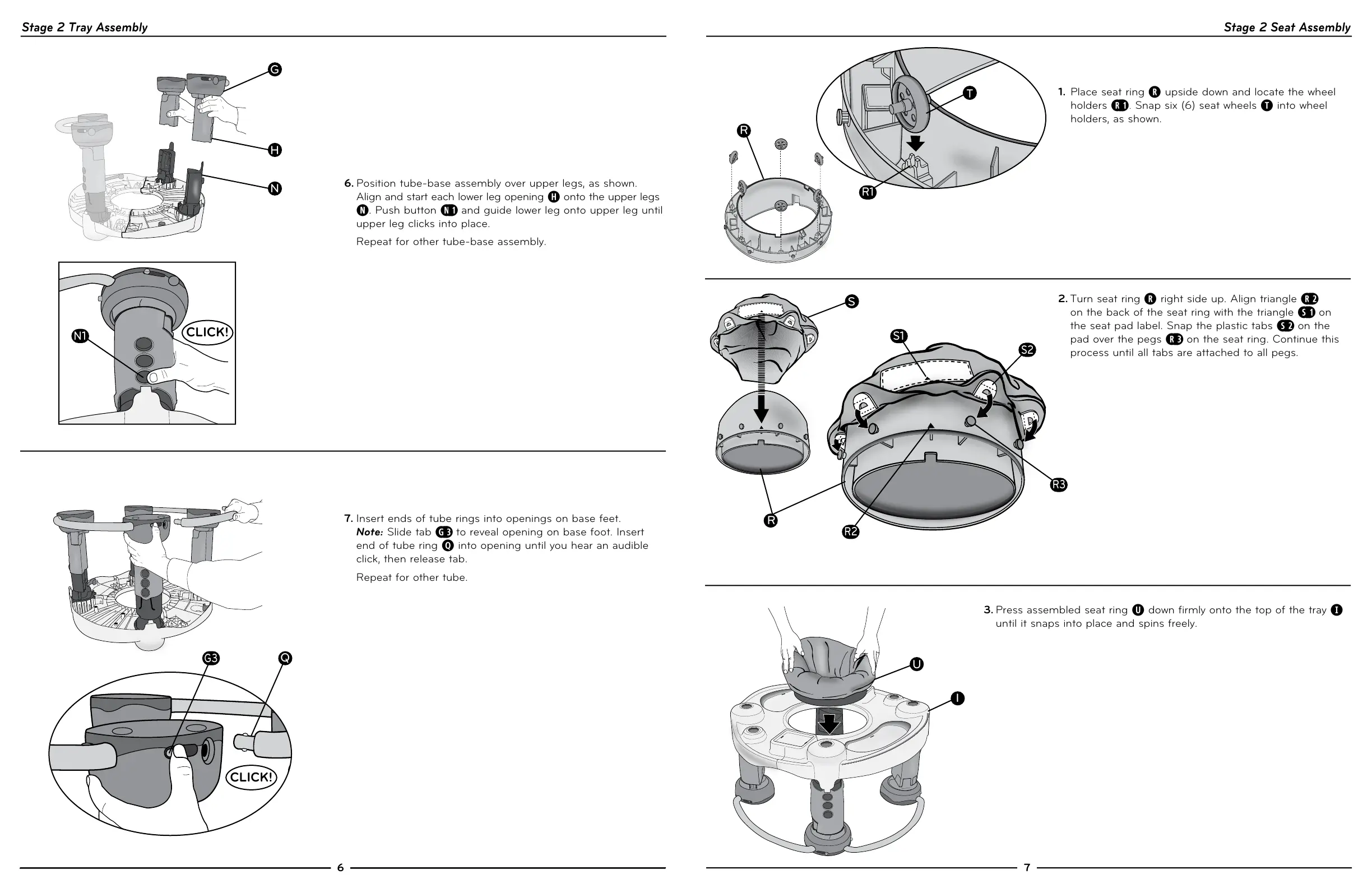

Stage 2 Seat AssemblyStage 2 Tray Assembly
6. Position tube-base assembly over upper legs, as shown.
Align and start each lower leg opening
H
onto the upper legs
N
. Push button
N> !
and guide lower leg onto upper leg until
upper leg clicks into place.
Repeat for other tube-base assembly.
7. Insert ends of tube rings into openings on base feet.
Note: Slide tab
G> #
to reveal opening on base foot. Insert
end of tube ring
Q
into opening until you hear an audible
click, then release tab.
Repeat for other tube.
3. Press assembled seat ring
U
down firmly onto the top of the tray
I
until it snaps into place and spins freely.
2. Turn seat ring
R
right side up. Align triangle
R> @
on the back of the seat ring with the triangle
S> !
on
the seat pad label. Snap the plastic tabs
S> @
on the
pad over the pegs
R> #
on the seat ring. Continue this
process until all tabs are attached to all pegs.
1. Place seat ring
R
upside down and locate the wheel
holders
R> !
. Snap six (6) seat wheels
T
into wheel
holders, as shown.
R
S1
S2
R3
R2
U
I
T
R1
R
G3
Q
N1
G
H
N
S
CLICK!
CLICK!
