11
10

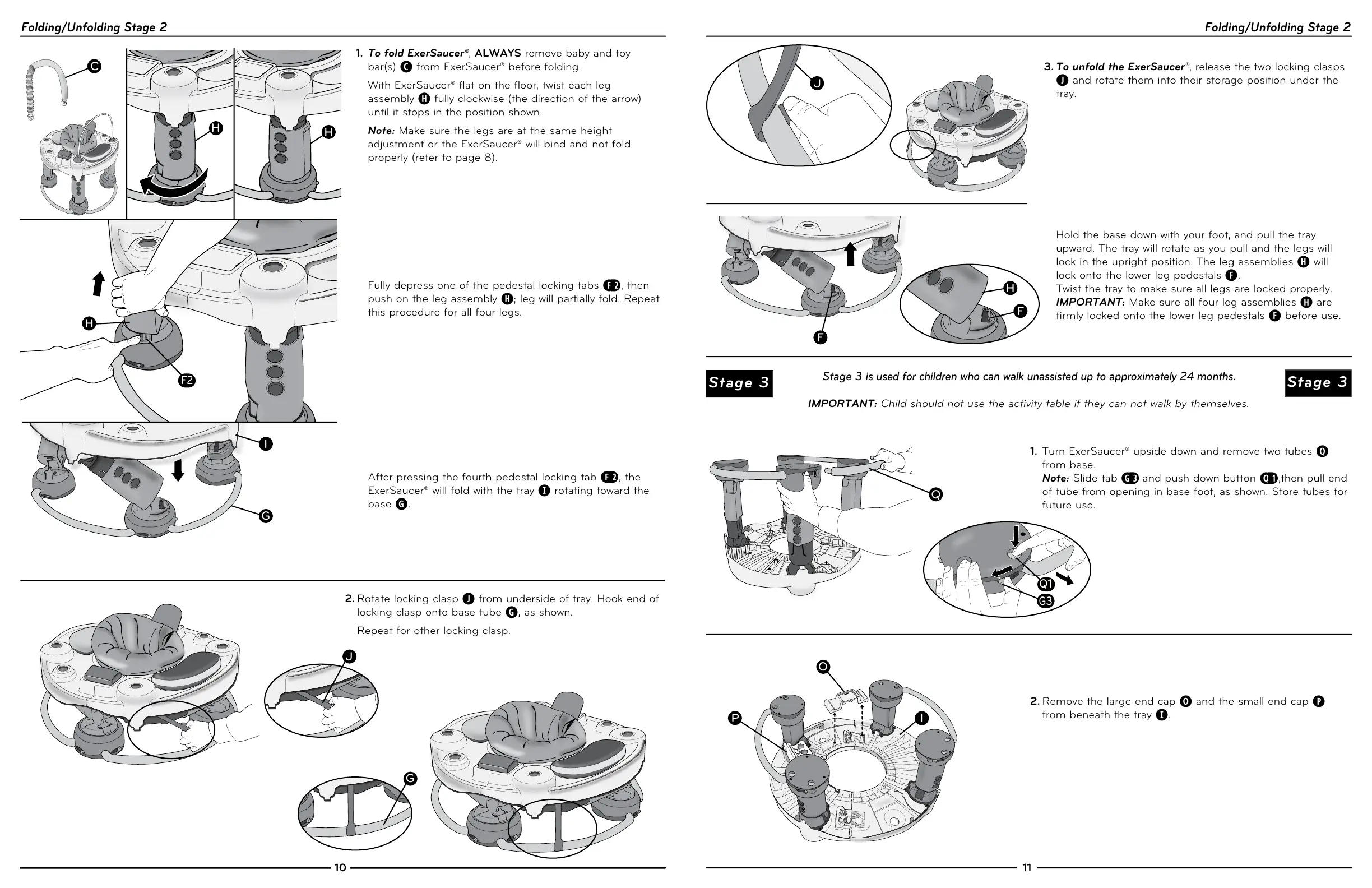

Folding/Unfolding Stage 2 Folding/Unfolding Stage 2
3. To unfold the ExerSaucer®, release the two locking clasps
J
and rotate them into their storage position under the
tray.
Hold the base down with your foot, and pull the tray
upward. The tray will rotate as you pull and the legs will
lock in the upright position. The leg assemblies
H
will
lock onto the lower leg pedestals
F
.
Twist the tray to make sure all legs are locked properly.
IMPORTANT: Make sure all four leg assemblies
H
are
firmly locked onto the lower leg pedestals
F
before use.
F
H
F
J
F2
H
1. To fold ExerSaucer®, ALWAYS remove baby and toy
bar(s)
C
from ExerSaucer®
before folding.
With ExerSaucer®
flat on the floor, twist each leg
assembly
H
fully clockwise (the direction of the arrow)
until it stops in the position shown.
Note: Make sure the legs are at the same height
adjustment or the ExerSaucer® will bind and not fold
properly (refer to page 8).
Fully depress one of the pedestal locking tabs
F> @
, then
push on the leg assembly
H
; leg will partially fold. Repeat
this procedure for all four legs.
After pressing the fourth pedestal locking tab
F> @
, the
ExerSaucer®
will fold with the tray
I
rotating toward the
base
G
.
C
H
H
J
G
I
Stage 3 is used for children who can walk unassisted up to approximately 24 months.
IMPORTANT: Child should not use the activity table if they can not walk by themselves.
Stage 3
Stage 3
I
O
P
2. Remove the large end cap
O
and the small end cap
P
from beneath the tray
I
.
2. Rotate locking clasp
J
from underside of tray. Hook end of
locking clasp onto base tube
G
, as shown.
Repeat for other locking clasp.
1. Turn ExerSaucer® upside down and remove two tubes
Q
from base.
Note: Slide tab
G> #
and push down button
Q> !
,then pull end
of tube from opening in base foot, as shown. Store tubes for
future use.
G
G3
Q
Q1
