Even-GLO™ Series GA301
Page 17
October-28-15
Portable Models (GA301M & GA301MP)

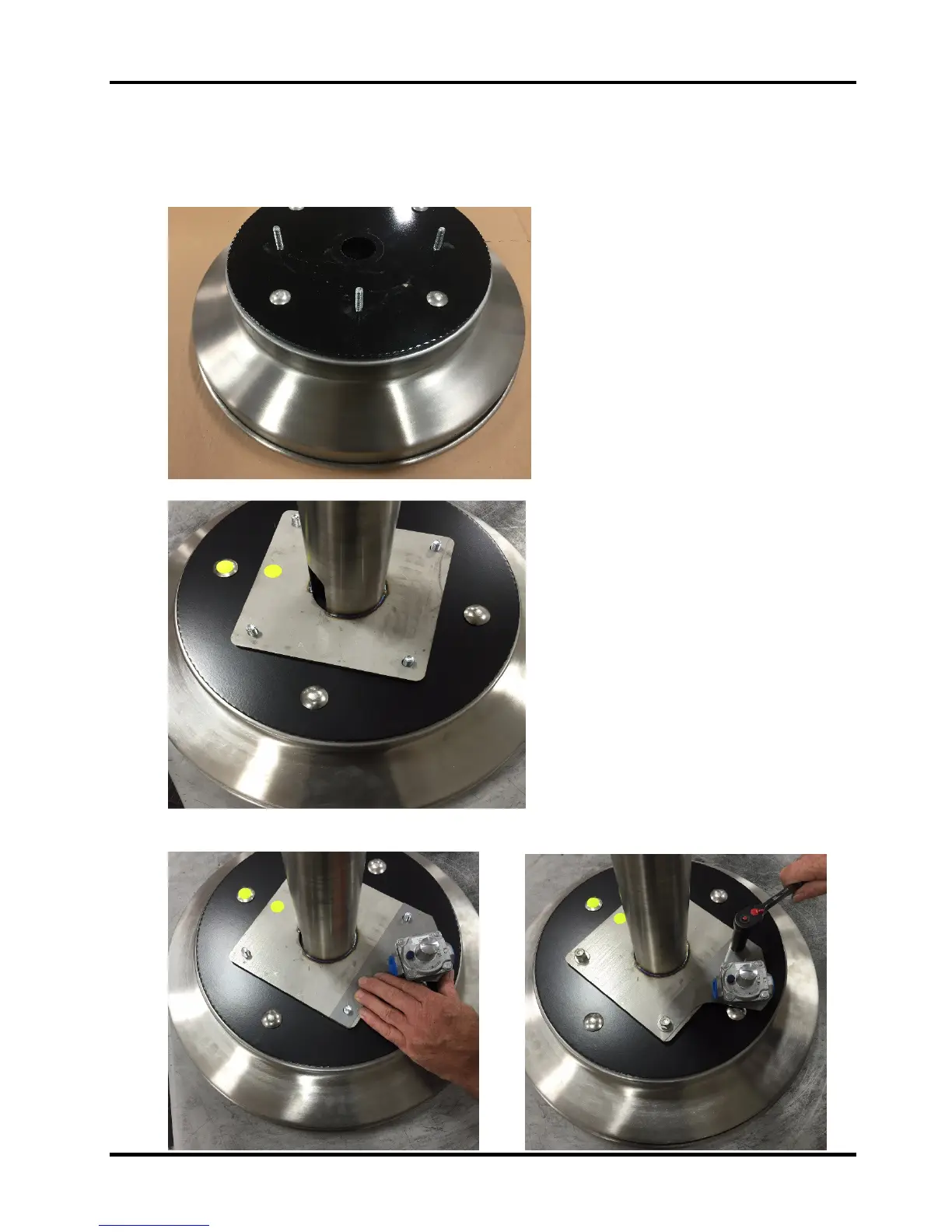

Secure Pole and Regulator Bracket to Bottom Base
a) Flip Base right side up, remove Bottom Housing Assembly and place Pole on the 4
threads of the Elevator Bolts.
b) Line up Pole Flange indication dot with the Bottom Base indication dot.
c) Position the Regulator Bracket relative to the indication dots, as shown. Tighten
Nut with a 9/16 Socket while making sure Carriage Bolt is properly secured.
