SIZE 1
2.2KW Split/Two Phase Models
3.0KW Three Phase Models
3.6 Cabinet Configurations (cont.)
Size 1
Size 2
Size 3
Size 4
Size 5
2.2KW, 3KW
4.2KW, 5.2KW, 6.25KW, 8.25KW, 10.5KW,
12.5KW 15.75KW, 18.75KW
10.5KW, 13.3KW, 17.0KW (LMOPT)
20.5KW, 26.5KW, 33.0KW (LMOPT)

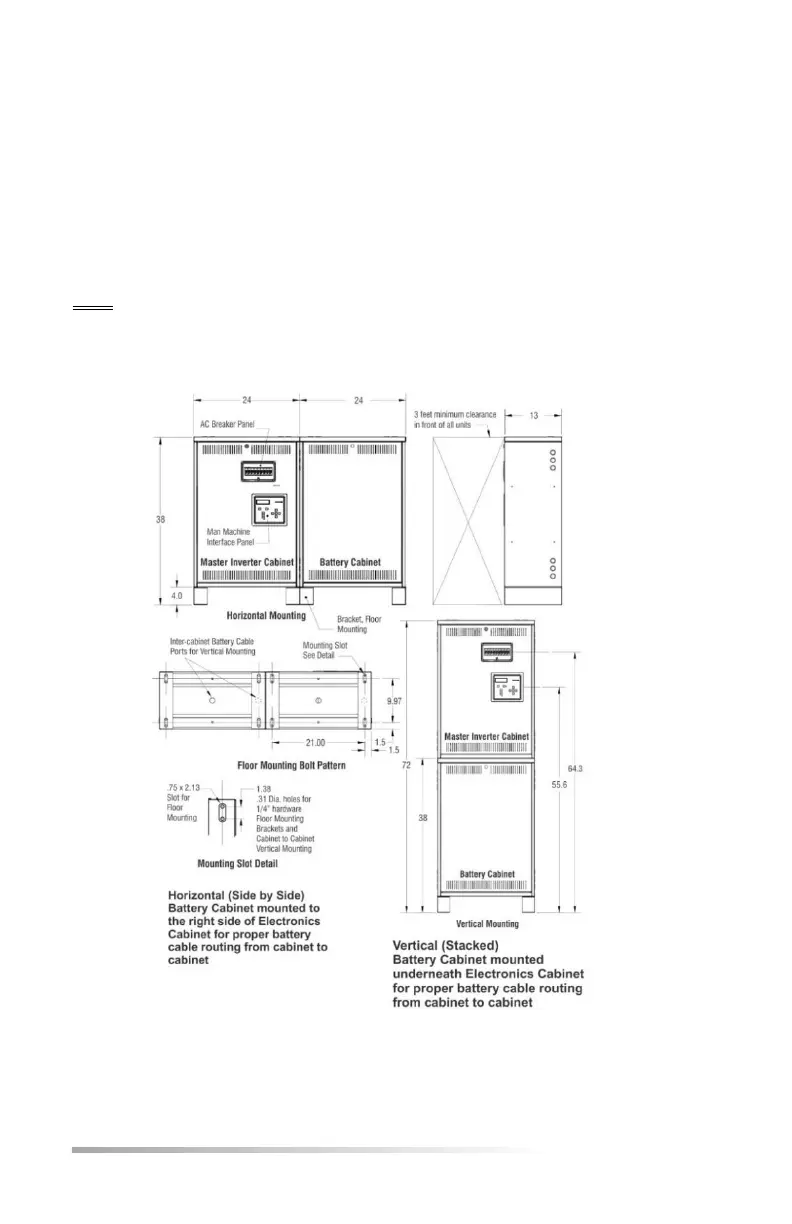

Note – Standard cabinet configurations for all sizes are shown. Other cabinet
configurations may be used when optional features are provided such as mixed
Input/Output voltages which requires isolation or auto-type transformers.
These options require additional cabinet space which may increase size.
8 | INSTALLATION / OPERATION MANUAL
