7 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Installation - Joist-in (continued)
5

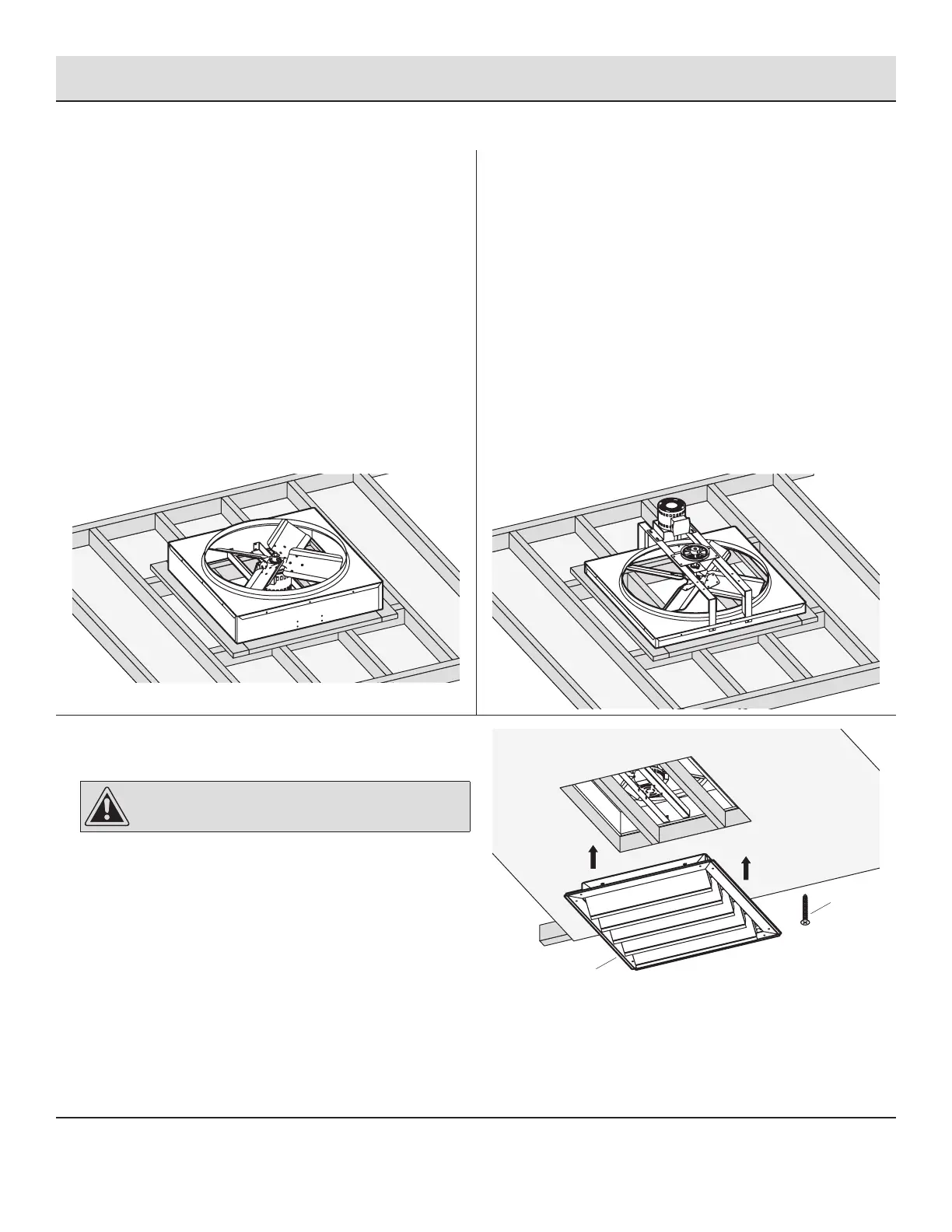

Preparing and installing the fan assembly
CX242DDWTEVB (DIRECT DRIVE)
Remove the fan blade and wire the motor rst. See Step 7
on page 8.
Replace and secure the blade so it is about half in and half
out of the hub.
Tighten the fan blade set screw before operating and
make sure the hub of the fan blade assembly is facing up
towards the roof.
Push the fan assembly through the shutter opening
diagonally or through another attic access.
Place the frame on top of the facing or additional frame
and draw alignment marks around the base of the
assembly.
Secure the assembly to the facing using screws.
CX30BD-2SPDEVB (BELT DRIVE)
Remove the hardware and remount the motor on the top
side of the struts.
Position the fan belt on the pulleys and adjust it to t
snugly with about 1/2-in. deection. DO NOT OVERTIGHTEN
THE BELT!
Tighten the fan blade set screw and make sure the hub of
the fan blade assembly is facing up towards the roof.
Push the fan assembly through the shutter opening
diagonally or through another attic access.
Place the frame on top of the facing or additional frame
and draw alignment marks around the base of the
assembly.
Secure the assembly to the facing using screws.
6
Installing the shutter
CAUTION: Never operate the fan without the shutter
installed.
Draw alignment marks on the ceiling 7/8 in. from the edges
to indicate the outer edges of the shutter (B) frame.
Install the shutter (B) using the white-headed wood screws
(F) provided with your fan.
Caulk the seams for an airtight seal.
F
B
