Installation - Joist-in (continued)
7

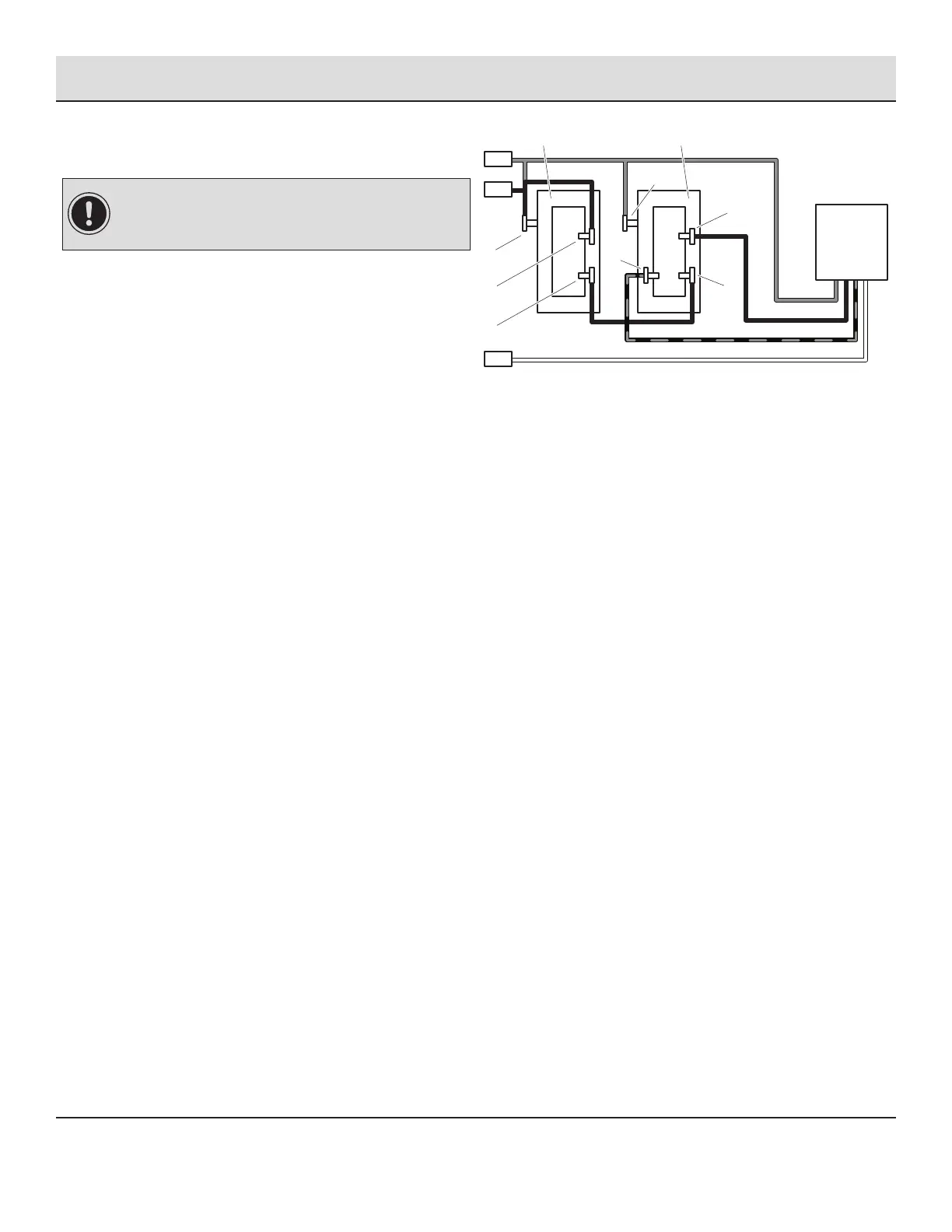

Wiring the fan
IMPORTANT: All wiring supplies and installations must meet
or exceed the requirements of local electrical and re codes.
Wire the fan to a 120 V, 60 Hz circuit only, using 14-3 two-
conductor wiring with ground.
□ Disconnect the power supply or switch off the appropriate
circuit breaker.
□ Install the included switches (C/D) in a double-gang, UL
listed wiring box, in a wall close to the fan.
□ Connect incoming power supply wire (BLK) to the top right
terminal of the On/Off switch (1).
□ Connect the bottom right terminal of the On/Off switch (2)
to the bottom right terminal of the High/Low switch (3)
using a jumper wire.
□ Connect the high-speed motor lead (BLACK) to the top right
terminal of the High/Low switch (4).
□ Connect the low-speed motor lead (RED) to the bottom left
terminal of the High/Low switch (5).
□ Connect the incoming common wire (WHT) to the common
wire (WHITE) from the motor.
□ Connect incoming ground wire (GND) to the grounding
screw on each switch (6, 7) and to the ground screw
(GROUND) in the motor box.
□ Manually rotate the fan blade to ensure that there are no
obstructions before turning on the power to the fan.
MOTOR
ON
OFF
HIGH
LOW
GROUND
BLACK
RED
WHITE
1
2
3
5
7
4
GND
BLK
WHT
To Next Page
