APPLIANCE DETAILS
INSTALLATION

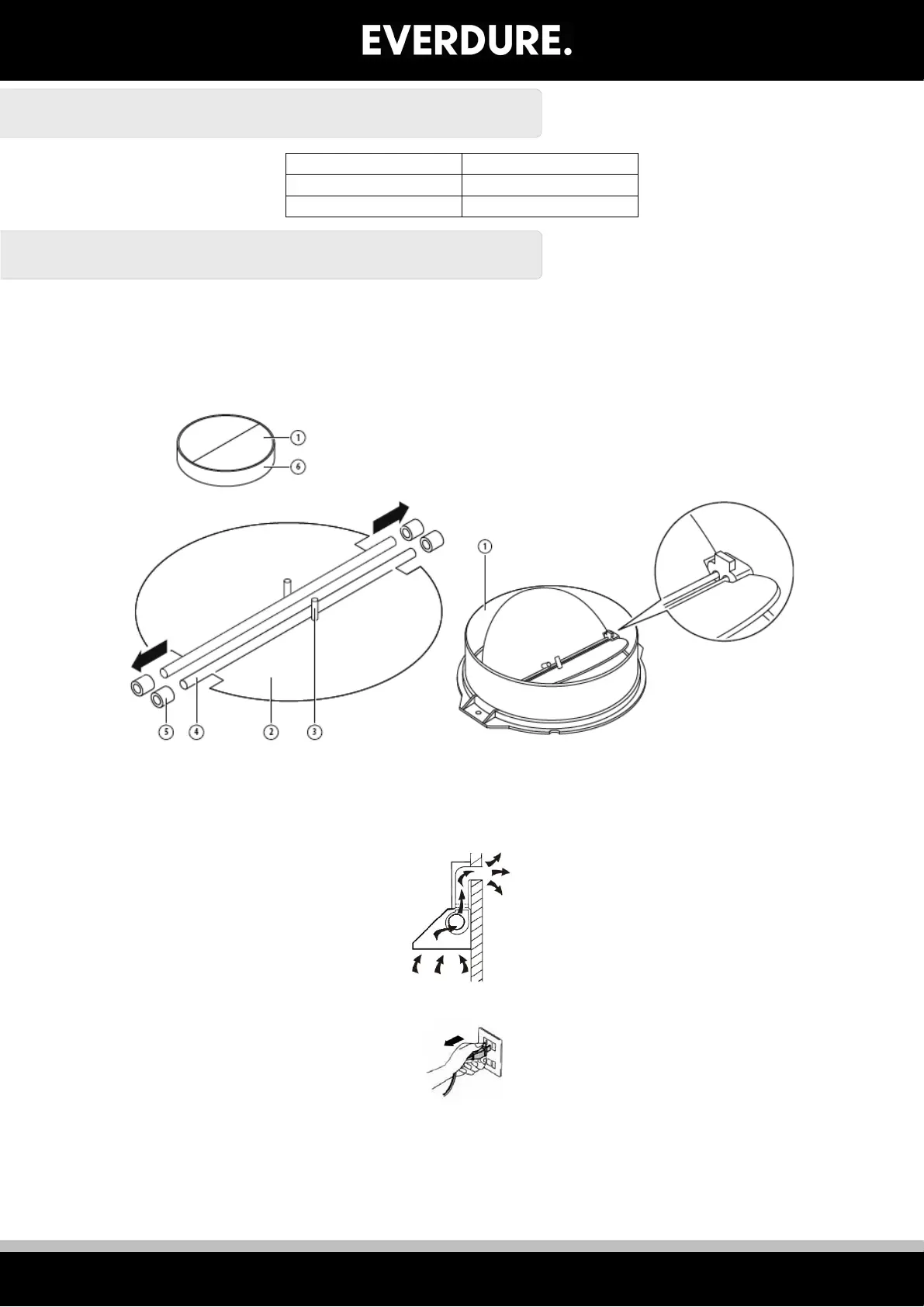

Mounting the V-Flap
1. Mount the two half-parts (2) onto the rangehood body (6).
2. Insert pin (3).
3. Insert the axial rod (4) into the holes (5) on the body of the rangehood.
4. Repeat for both halves.
Installation of the Rangehood
If you have an air outlet to the outside, your rangehood can be connected as below by means of an extraction
duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm).
1. Before installation, turn the unit off and unplug it from the outlet.
