INSTALLATION
2. The rangehood should be placed at a minimum distance of 65cm above the cooking surface. For best
effect, the maximum distance above the cooking surface is 75cm.
3. The ceiling must be able to bear at least 120kg, and the thickness of the ceiling must be ≧30mm. Drill a
1*170mm round hole in the ceiling.

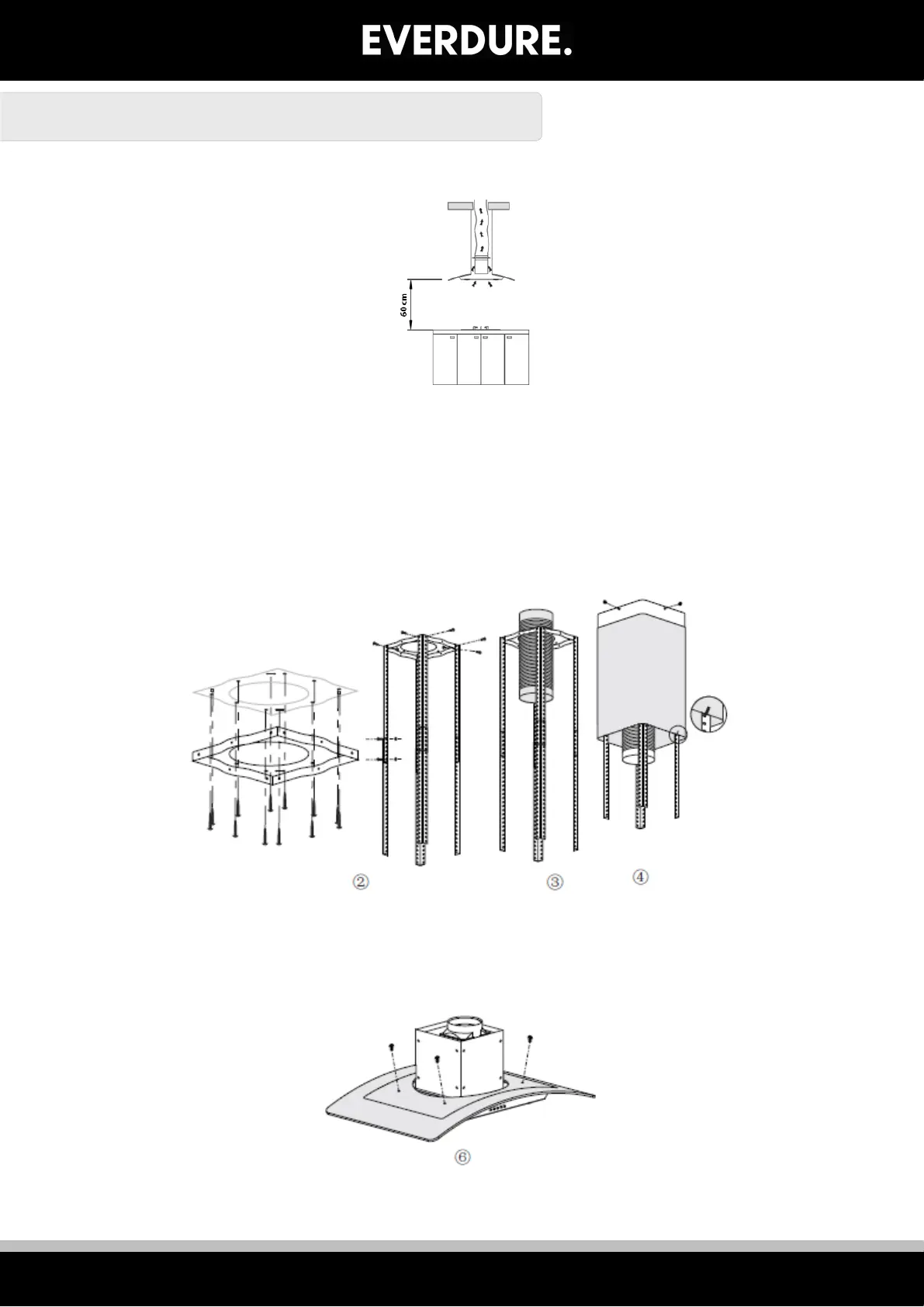

4. According to the hanging board, drill 12 holes in the ceiling (see image 2 below). 12pcs of ST6*40mm
big flat screws will be used to fix the hanging board to a wooden ceiling. (Use 8pcs exploded screws to
fix the hanging board to a concrete ceiling). Use 8pcs of M4*10 big flat screws and M4 nut with gasket
to connect the angle iron to the hanging board. Use 16pcs M4*10 big flat screws and M4 nut with
gasket to connect the angle iron and another angle iron ( the overlap length of angle iron can not be
less than 100mm).
5. Let one end of the expansion pipe go outside through the 170mm hole (see image 3).
6. Use 4pcs ST4*8 big flat screws to connect the inside chimney to the hanging board, then put on the
outside chimney. A hook will be used to put up the outside chimney in order to the next installation
(see image 4).
7. Affix the glass canopy to the rangehood body using the four glass screws (see image 6).
