Interior Equipment
Daylight and ventilation is provided by an opening
port window and vents in the cabin door. There are
also 12 volt lights in the headliner and in the berth
area that are activated by a switch near the door.
There are two large doors and a removable hatch
in the rear bulkhead. The compartments behind
the doors provide a mounting area for electron-
ics control modules and storage for small items.
The circuit breakers that protect the 12 volt ac-
cessories activated by the helm switch panels are
located in a panel behind the starboard door. The
latches that secure the opening helm section are
also located behind these doors.
A removable hatch above the doors for the circuit
breaker panel and electronics control modules
provides access to the back of the helm station
to service helm components or install electronics.
Other hatches in the aft bulkhead provide access
to the overboard macerator pump, discharge valve
and other components.

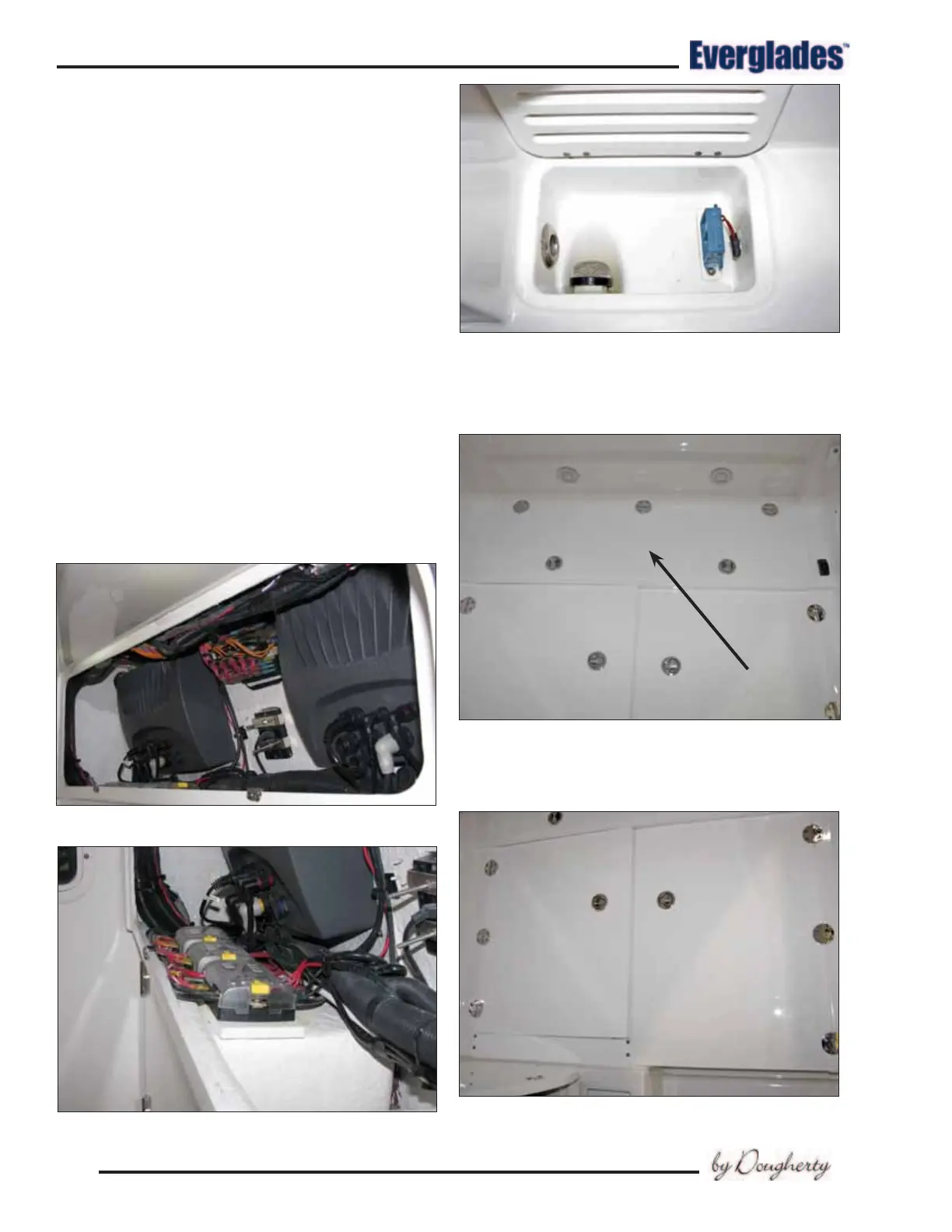

Fuse Panels Behind Helm
Access Behind Helm
Access Doors to Compartments for Electronics Modules,
accessory Circuit Breaker Panel and Opening Helm Latches
Removable Hatch to Access Back of Helm
