Raw Water System
Washdown Hose Connector
The raw water washdown hose connection is lo-
cated on the port side of the cockpit below the
gunnel and uses a standard garden hose connec-
tor. It is equipped with a valve that allows the
ow of water to be turned on or off.
Make sure the Raw Water switch in the helm switch
panel is on before using the washdown hose and
that the washdown faucet valve or hose spray
nozzle are off when the water system is activated.
Work Station Sink
The sink in the cockpit work station is equipped
with fresh and raw water. A spray head on a
retractable hose is mounted in a recess next to
the faucet.
To use the raw water spray head, pull it out of
the recess and make sure the Raw Water switch
is on. Turn on the raw water faucet and activate
the spray head using the thumb activated valve
on the spray head.
DO NOT ALLOW THE WATER PUMP TO RUN DRY. THE PUMP
WORKS ON DEMAND AND WILL NOT SHUT OFF AUTOMATICALLY
IF NO WATER IS AVAILABLE. THIS CAN RESULT IN DAMAGE
TO THE PUMP. ALWAYS TURN THE RAW WATER SWITCH OFF
WHEN THE RAW WATER SYSTEM IS NOT IN USE.
8.3 Livewell and Baitwell
Seawater is provided to the livewell and baitwell
by 12 volt circulation pumps. This pumps are
designed to carry a constant ow of water to the
each well. The pumps do not have a pressure
sensor and are activated by the Livewell Pump and
Baitwell Pump switches in the helm switch panel.
There is also a light in each well that is activated
by the Livewell and Baitwell Light switches.
An overow built into the drain system automati-
cally controls the water level in each well. Always
turn the pumps off at the switch panel when the
wells are not in use.
To ll the livewell or baitwell, insert the plug into
the drain tting at the bottom of the well. Make
sure the pump ball valve on the manifold and the
supply valve in the well are open. Then activate

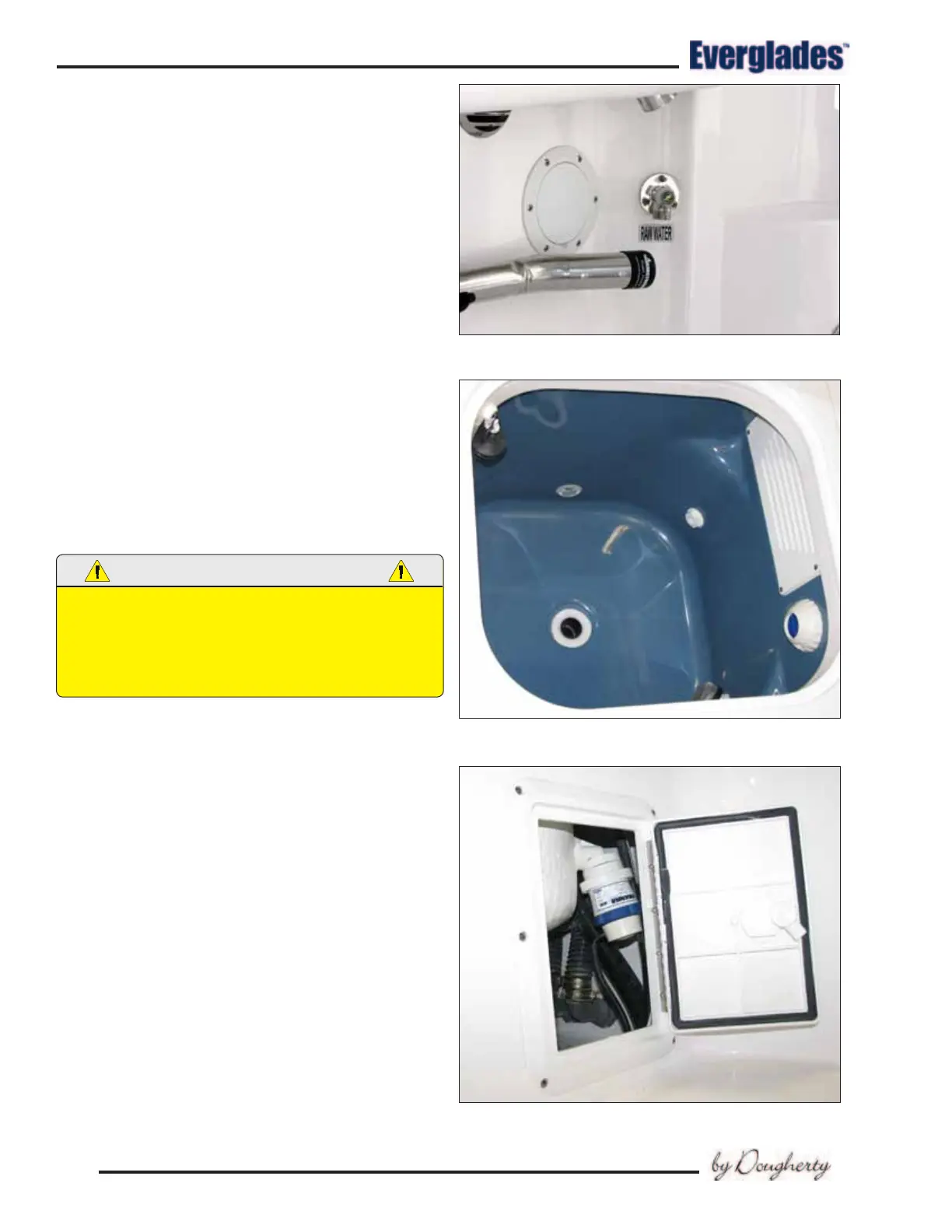

Typical Washdown Hose Connection
Livewell
Livewell Recirculation Pump
