66
Electrical System
Spot Light (Optional)
Located in the helm. Controls the spot light that
is mounted on the hardtop. It is protected by a
fuse located in the accessory fuse panel in the
helm. Refer to the spot light owner’s manual for
details on operating the control pad.
Forward Windlass Switch
Located in the windlass compartment below a
hatch in the deck near the bow. This switch
controls the windlass which is mounted in the
compartment above the rope locker. The switch
circuit is protected by a circuit breaker in the
head compartment breaker panel. The primary
windlass circuit is protected by a circuit breaker
of the type and rating recommended by the wind-
lass manufacturer that is located near the battery
switches.
The switch is a three-position switch. The center
position is OFF. Moving the switch in one direction
will pay the anchor line out. Moving the switch in
the opposite direction will pull the anchor line in.
Table
Located on the starboard side of the cockpit, for-
ward of the console. A three position momentary
switch that raises and lowers the table pedestal.
The center position is OFF. Press the top of the
switch to raise the table, press the bottom of the
switch to lower it. The pedestal will stop imme-
diately when the switch is released or when the
table pedestal reaches full up or down position.
It is protected by a fuse located in the accessory
fuse panel behind the helm.
Power Ports
A 12 volt power port is located below the gunnel on
each side of the cockpit. The power ports provide
a 12 volt DC power connection for downriggers or
electric reels. Each power port requires a special
twist lock plug to be installed on the power cord
of the accessory. One plug for each port was
included with your boat. Additional plugs can be
ordered through your dealer.
The power ports are protected by fuses located in
the accessory fuse panels behind the helm.
Waste Discharge Switch
A key activated momentary switch located in the
head compartment that controls the overboard
discharge pump system for the holding tank and
marine head system. Monitor the waste level in the
tank while pumping and turn the waste discharge

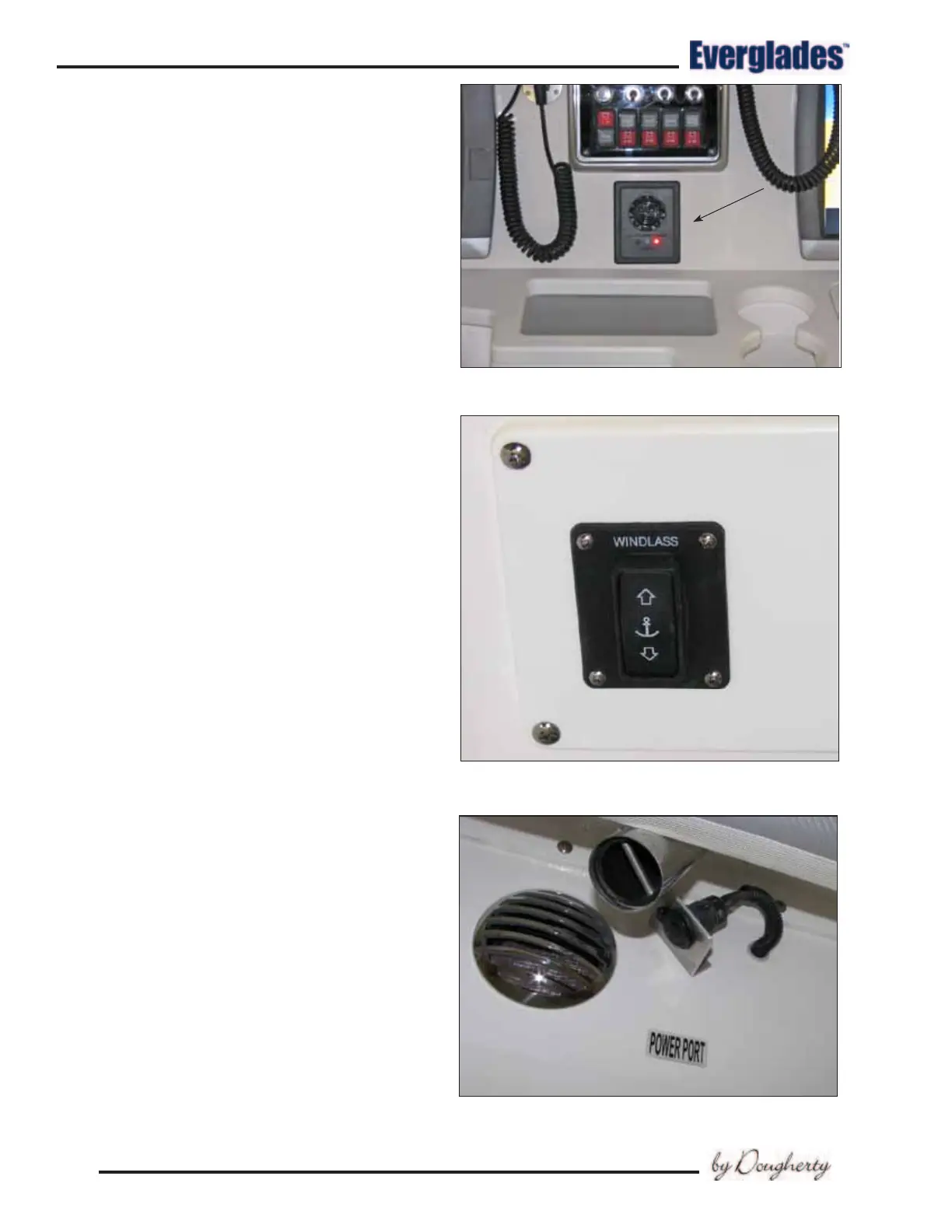

Typical Power Port
Typical Spotlight Switch
Windlass Switch in Rope Locker Near Windlass
