Fresh Water System
Work Station Sink and Fresh Water Shower
The sink in the cockpit work station is equipped
with fresh and raw water. A spray head/shower
on a retractable hose is mounted in a recess next
to the faucet.
To use the fresh water spray head, pull it out of
the recess and make sure the Fresh Water switch
is on. Turn on the fresh water faucet and activate
the shower using the thumb activated valve on
the spray head.
Head Sink and Shower
The vanity sink faucet converts to a retractable
hand-held shower head. To use the shower, make
sure the Fresh Water switch in the helm switch
panel is on. Then pull the shower head out of the
faucet and activate the shower using the thumb
activated valve on the spray head.
Shower and sink water is drained overboard by
the shower sump pump. The pump is automati-
cally controlled by a oat switch in the sump that
is activated whenever the house battery switch is
ON. After showering, let the cold water ow for
a period of time to ush the drainage system of
soap residue.
The head compartment drain and shower sump
system is located below a hatch in the head sole.
It is essential that the drain pump strainer is
cleaned regularly to remove accumulated debris
that will clog the shower drain system.
The Fresh Water Washdown
The cockpit fresh water washdown hose connection
is located on the starboard side of the cockpit and
uses a standard garden hose connection. It is
equipped with a valve that allows the ow of water
to be turned on or off at the hose connection.
Make sure the Fresh Water switch in the helm
switch panel is on before using the washdown
hose and that the washdown faucet valve or hose
spray nozzles are off when the fresh water system
is activated.

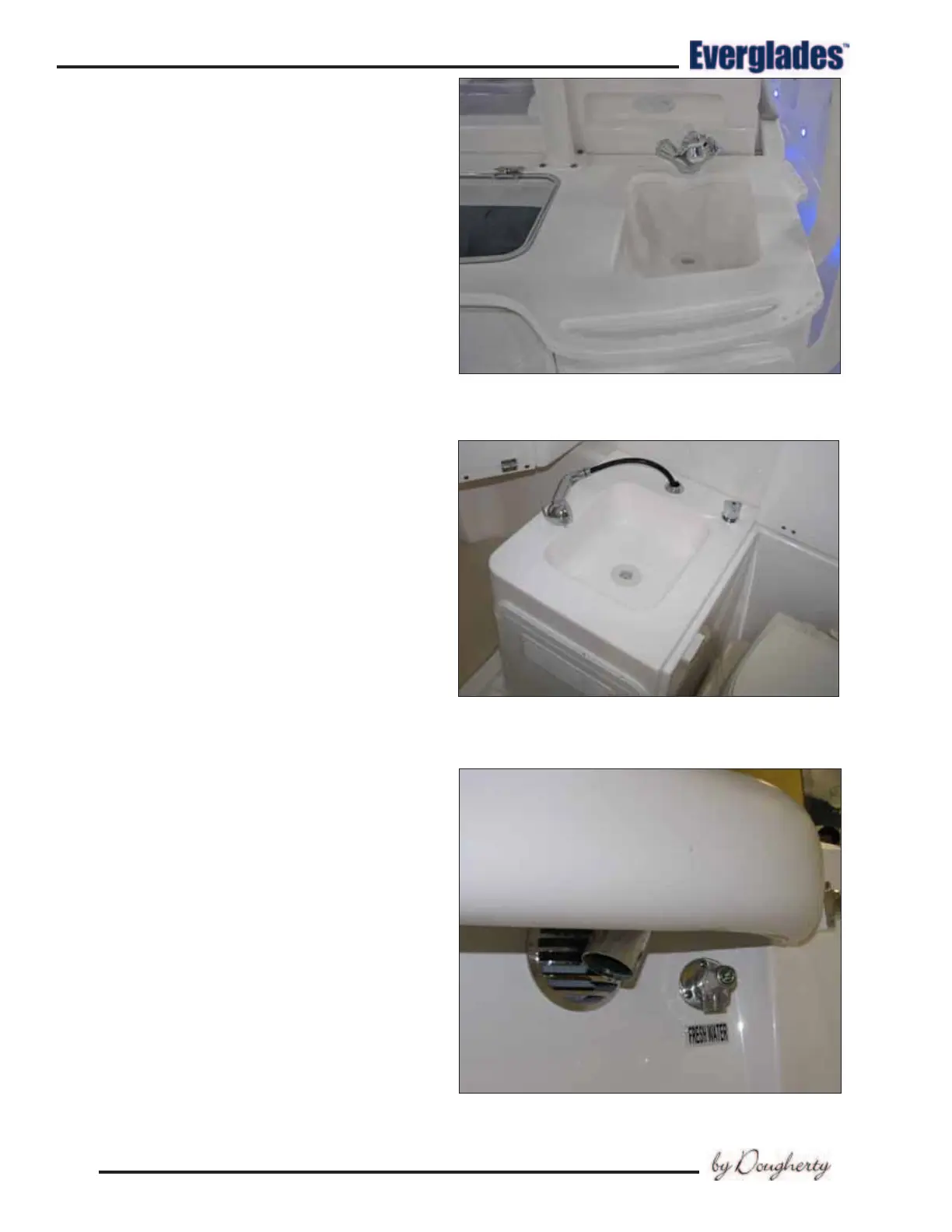

Head Compartment Vanity Sink and Shower
Freshwater Washdown Connection
Work Station Sink with Fresh and Raw Water Shower
