101
INTERIOR EQUIPMENT

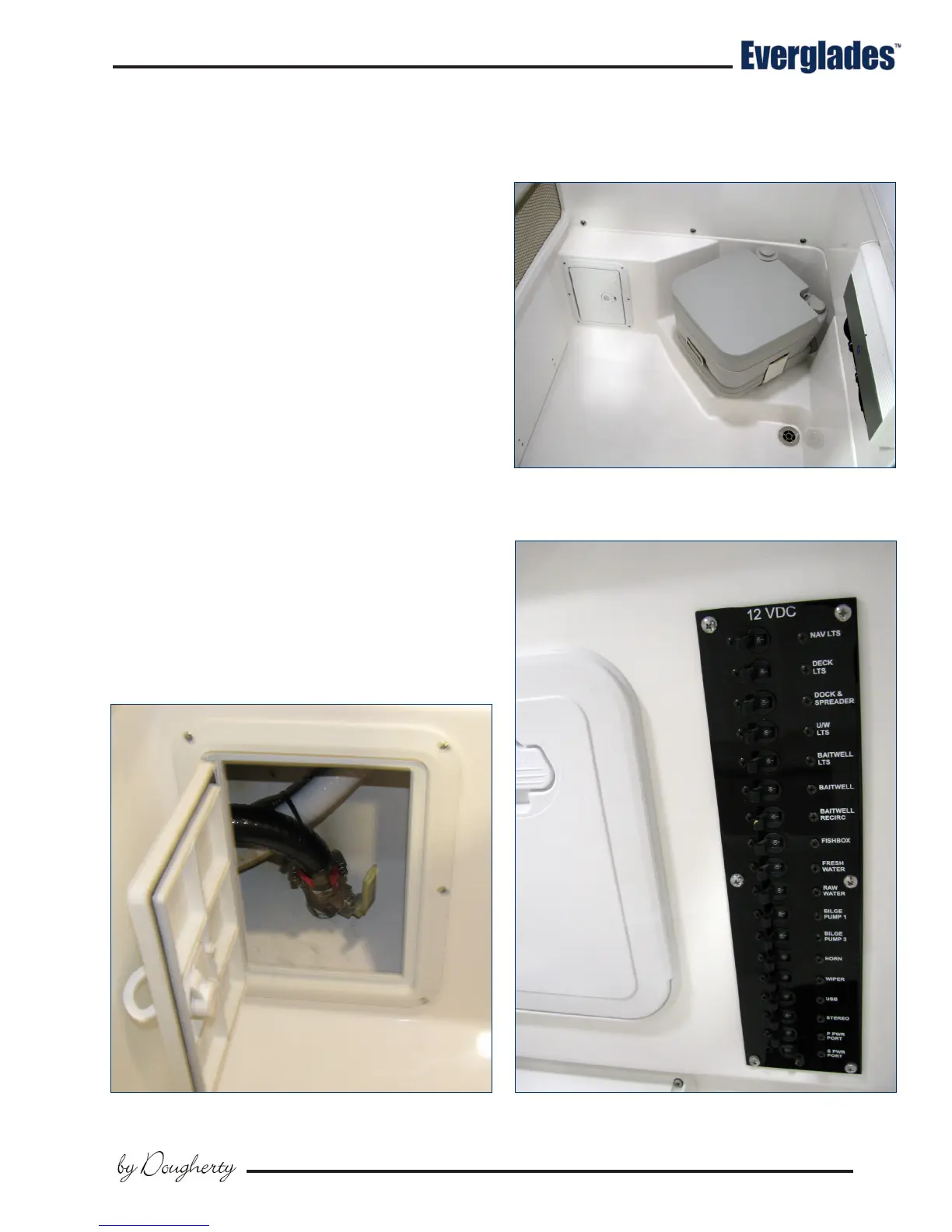

12.1 Head Compartment
The head compartment is equipped with a por-
table marine toilet and storage. The compartment
drains to the bilge through a drain tting in the
oor.
Daylight and ventilation is provided by an opening
port window and vents in the cabin door. There
is also a 12-volt light in the head compartment
that is activated by a switch in the light xture.
The circuit breakers that protect the 12 volt ac-
cessories activated by the helm switches are
located in a panel on the rear bulkhead. Hatches
in the rear bulkhead provide access to the back of
the helm station to service helm components or
install electronics. An access panel and door on
the starboard side provides access to the Fishbox
macerator pump and discharge valves.
Chapter 12:
Forward Bilge Access Door 12 Volt Accessory Circuit Breakers
Head Compartment
