Propulsion System
Hour Meters
The hour meters keep a record of the operating
time for the engine.
Engine Tilt/Trim Gauges
The tilt/trim gauges monitor the position of the
outboard engine. The upper range of the gauge
indicates the tilt, which is used for trailering and
shallow water operation. The lower range indi-
cates the trim position. This is the range used to
adjust the hull angle while operating your boat
on plane.
With Command Link instruments, the trim gauge
is built into the speedometer multi-gauge. On
boats equipped with Command Link Plus
®
, the
trim gauge is built into the LCD Display.
Refer to the engine and instrument owner’s manu-
als for more information on the operation of the
outboard power tilt and trim.
Engine Alarms
All outboard engines are equipped with an audible
alarm system mounted in the helm area that moni-
tors selected critical engine systems. The alarm
will sound if one of these systems begins to fail.
Refer to the engine owner’s manual for information
on the alarms installed with your engine.
CAUTION
IF THE ENGINE ALARM SOUNDS, IMMEDIATELY SHUT
OFF THE ENGINE UNTIL THE PROBLEM IS FOUND AND
CORRECTED.
Fuel Management
Fuel management systems are standard equip-
ment with some outboard engines. On Yamaha
engines, the fuel management gauge is built into
the Command Link or Command Link Plus
®
display
and can monitor miles per gallon, total gallons
used and total gallons remaining.
If you have a fuel management system installed
on your boat, refer to the engine or instrument
manuals for detailed information on that system.

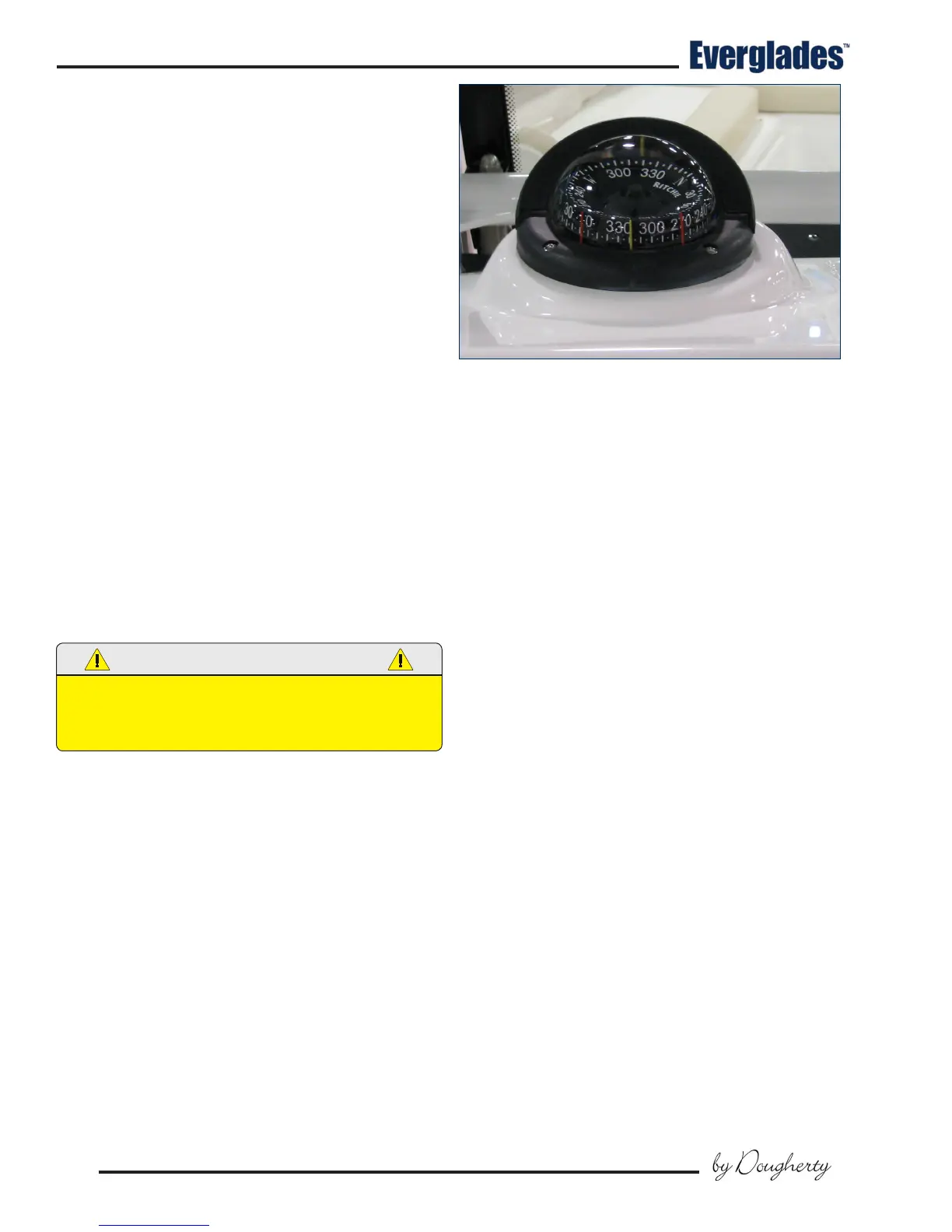

Compass
Depth Gauge (Optional)
The depth gauge indicates the depth of the water
below the bottom of the boat.
Compass
All boats are equipped with a compass on the top
of the instrument panel. The compass cannot be
adjusted accurately at the factory as it must be
compensated for the inuence of the electrical
equipment and electronics unique to your boat.
Therefore, the compass should be adjusted by a
professional after the electronics and additional
electrical accessories are installed and before op-
erating the boat. To adjust the compass for your
area, read the instructions on “Compass Com-
pensation” given to you in the literature packet.
Instrument Maintenance
Electrical protection for instruments and ignition
circuitry is provided by a set of fuses or circuit
breakers located on each engine. The ignition
switch should be sprayed periodically with a con-
tact cleaner/lubricant. The ignition switch and all
instruments, controls, etc. should be protected
from the weather when not in use. Excessive
exposure can lead to gauge and ignition switch
diculties.
